Switches

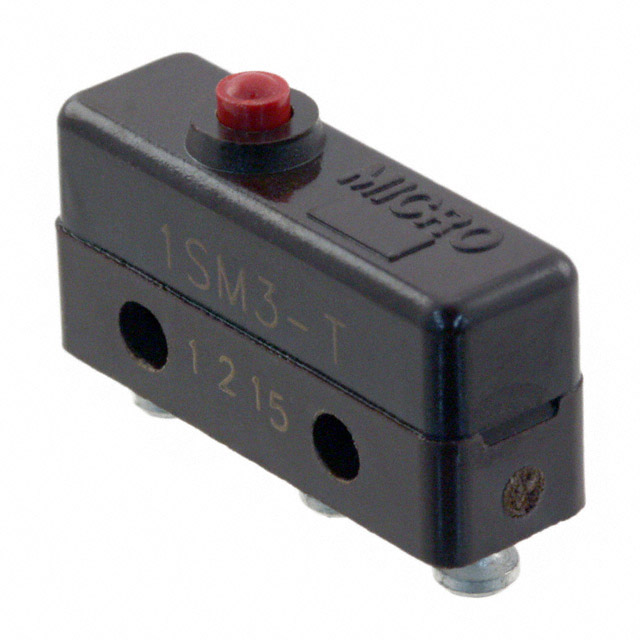

1SM3-T

Active

MICROSWITCH, SUBMINIATURE, PIN PLUNGER, SPDT, SOLDER, 5 A, 30 VDC

Search across all available documentation for this part.

Switches

Active

MICROSWITCH, SUBMINIATURE, PIN PLUNGER, SPDT, SOLDER, 5 A, 30 VDC

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Pretravel	Pretravel	Actuator Type	Operating Position	Operating Position	Termination Style	Overtravel [custom]	Overtravel [custom]	Voltage Rating - DC	Voltage Rating - AC	Differential Travel	Differential Travel	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Operating Force	Mechanical Life	Circuit	Release Force	Current Rating (Amps)
Honeywell Sensing and Productivity Solutions 1SM3-T	On-Mom	0.8 mm	0.03 "	Round (Pin Plunger)	0.33 in	8.4 mm	Solder Turret	0.005 "	0.13 mm	30 V	250 V	0.1 mm	0.004 in	-55 C	125 °C	Chassis Mount	141 gf	80000 Cycles	SPDT	28 gf	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 11.20
	N/A	0	$ 14.24
Newark	Each	100	$ 12.50

General part information

Switch SPDT Chassis Mount
