PAB.M1.0GL.AC39G

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS 10P SOLDER STR PLUG CBL COLLET 3.9MM GRY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

Connectors, Interconnects

PAB.M1.0GL.AC39G

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS 10P SOLDER STR PLUG CBL COLLET 3.9MM GRY

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PAB.M1.0GL.AC39G

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)
Cable Opening [Max] [diameter]	0.154 in
Cable Opening [Max] [diameter]	3.9 mm
Cable Opening [Min] [diameter]	2.7 mm
Cable Opening [Min] [diameter]	0.106 in
Color	Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	3 A
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	B
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	M10
Shielding	Unshielded

PAG.M0 Series

Standard Circular Connector

...

Part	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Contact Finish - Mating	Connector Type	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Features	Shielding	Backshell Material, Plating	Applications	Shell Size - Insert	Primary Material	Orientation	Mounting Type	Current Rating (Amps)	Fastening Type	Ingress Protection	Number of Positions	Insert Material	Cable Opening [custom]	Cable Opening [custom]	Termination	Mounting Feature	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]

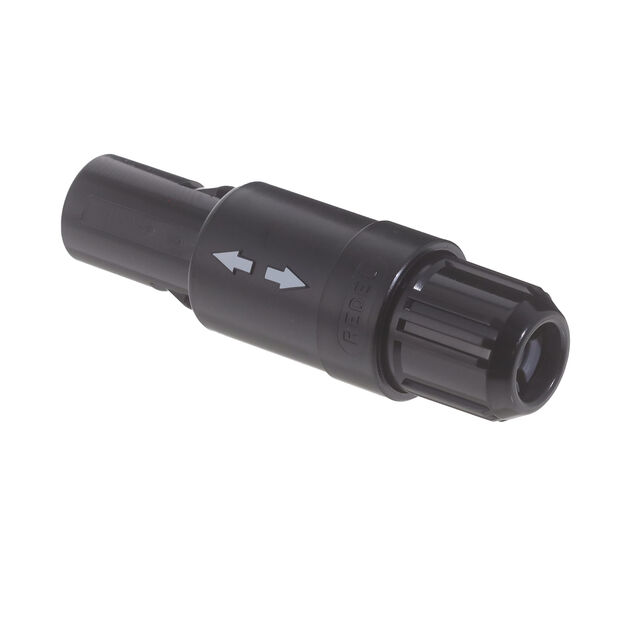

LEMO PAG.M0.9NL.AC52N	0.157 in	0.205 in	4 mm	5.2 mm	Gold	Male Pins Plug	Polysulfone (PSU)	150 °C	-50 °C	Black	Backshell	Unshielded	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	M09	Plastic	G	Free Hanging (In-Line)	3 A	Detent Lock Push-Pull	IP50	9	Polyetheretherketone (PEEK)
LEMO PAG.M0.5TL.AC65NZ					Gold	Male Pins Plug	Polyetherimide (PEI)	170 °C	-50 °C	Black	Backshell	Unshielded	Polyetherimide (PEI)	Automotive Industrial Medical Testing Equipment & Measurement	M05	Plastic	G	Free Hanging (In-Line)	7 A	Detent Lock Push-Pull	IP50		Polyetheretherketone (PEEK)	0.209 in 0.256 in	5.3 mm 6.5 mm
LEMO PAG.M0.6GL.CC52GZ	0.157 in	0.205 in	4 mm	5.2 mm	Gold	Male Pins Plug	Polysulfone (PSU)	150 °C	-50 °C	Gray	Backshell	Unshielded	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	M06	Plastic	G	Free Hanging (In-Line)	6 A	Detent Lock Push-Pull	IP50	6	Polyetheretherketone (PEEK)			Crimp
LEMO PAG.M0.6GL.AC65NZ					Gold	Male Pins Plug	Polysulfone (PSU)	150 °C	-50 °C		Backshell	Unshielded	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	M06	Plastic	G	Free Hanging (In-Line)	6 A	Detent Lock Push-Pull	IP50	6	Polyetheretherketone (PEEK)	0.209 in 0.256 in	5.3 mm 6.5 mm

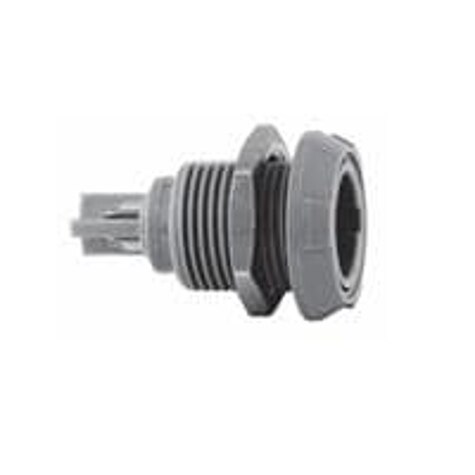

LEMO PKB.M1.4GL.LZ					Gold	Receptacle Female Sockets	Polysulfone (PSU)	150 °C	-50 °C	Gray		Unshielded		Automotive Industrial Medical Testing Equipment & Measurement	M14	Plastic	B		2 A	Detent Lock Push-Pull	IP50	14	Polyetheretherketone (PEEK)				Front and Rear Side Nut
LEMO PAG.M0.4NL.AC52NZ	0.157 in	0.205 in	4 mm	5.2 mm	Gold	Male Pins Plug	Polysulfone (PSU)	150 °C	-50 °C	Black	Backshell	Unshielded	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	M04	Plastic	G	Free Hanging (In-Line)	8 A	Detent Lock Push-Pull	IP50	4	Polyetheretherketone (PEEK)

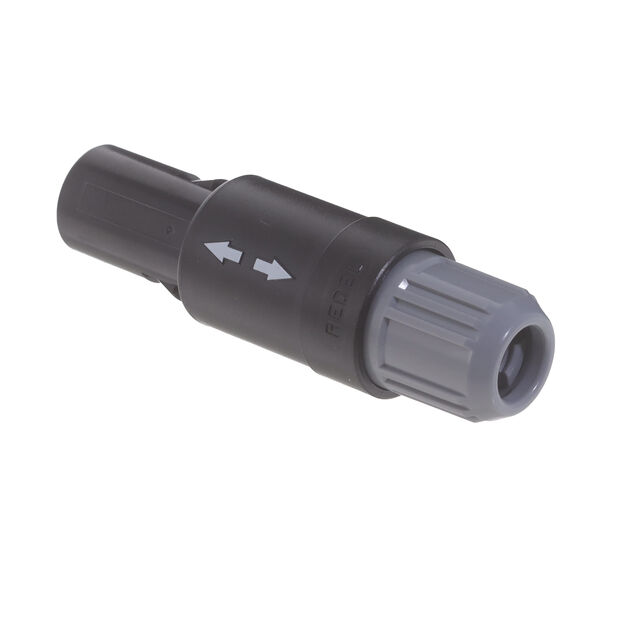

LEMO PAG.M0.9NL.AC52G	0.157 in	0.205 in	4 mm	5.2 mm	Gold	Male Pins Plug	Polysulfone (PSU)	150 °C	-50 °C		Backshell	Unshielded	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	M09	Plastic	G	Free Hanging (In-Line)	3 A	Detent Lock Push-Pull	IP50	9	Polyetheretherketone (PEEK)
LEMO PAG.M0.2GL.AC39A					Gold	Male Pins Plug	Polysulfone (PSU)	150 °C	-50 °C	Blue Gray	Backshell	Unshielded	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	M02	Plastic	G	Free Hanging (In-Line)	10 A	Detent Lock Push-Pull	IP50	2	Polyetheretherketone (PEEK)					2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PAG.M0.4GL.CC52RZ	0.157 in	0.205 in	4 mm	5.2 mm	Gold	Male Pins Plug	Polysulfone (PSU)	150 °C	-50 °C	Gray Red	Backshell	Unshielded	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	M04	Plastic	G	Free Hanging (In-Line)	8 A	Detent Lock Push-Pull	IP50	4	Polyetheretherketone (PEEK)			Crimp
LEMO PAG.M0.7GL.AC52J	0.157 in	0.205 in	4 mm	5.2 mm	Gold	Male Pins Plug	Polysulfone (PSU)	150 °C	-50 °C	Gray Yellow	Backshell	Unshielded	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement		Plastic	G	Free Hanging (In-Line)	5 A	Detent Lock Push-Pull	IP50	7	Polyetheretherketone (PEEK)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Sager	N/A	1	$ 25.11
		10	$ 22.60
		25	$ 19.65
		50	$ 18.83
		100	$ 18.08

Description

General part information

PAG.M0 Series

Standard Circular Connector
