Standard Circular Connector
Standard Circular Connector
| Part | Number of Positions | Orientation [custom] | Insert Material | Contact Finish - Mating | Shell Size - Insert | Termination | Connector Type | Primary Material | Current Rating (Amps) | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Shielding | Color | Shell Material | Mounting Type | Applications | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | 8 | G | Polyetheretherketone (PEEK) | Gold | M08 | Solder | Receptacle Female Sockets | Plastic | 5 A | Detent Lock Push-Pull | 170 °C | -50 °C | Front and Rear Side Nut | Unshielded | Black | Polyetherimide (PEI) | Panel Mount Through Hole | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected |
LEMO | 5 | G | Polyetheretherketone (PEEK) | Gold | M05 | Receptacle Female Sockets | Plastic | 7 A | Detent Lock Push-Pull | 170 °C | -50 °C | Front and Rear Side Nut | Unshielded | Blue Gray | Polyetherimide (PEI) | Panel Mount | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | |
LEMO | 9 | G | Polyetheretherketone (PEEK) | Gold | M09 | Receptacle Female Sockets | Plastic | 3 A | Detent Lock Push-Pull | 170 °C | -50 °C | Front and Rear Side Nut | Unshielded | Black | Polyetherimide (PEI) | Panel Mount | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | |
LEMO | 4 | G | Polyetheretherketone (PEEK) | Gold | M04 | Receptacle Female Sockets | Plastic | 8 A | Detent Lock Push-Pull | 170 °C | -50 °C | Front and Rear Side Nut | Unshielded | Polyetherimide (PEI) | Panel Mount | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | ||

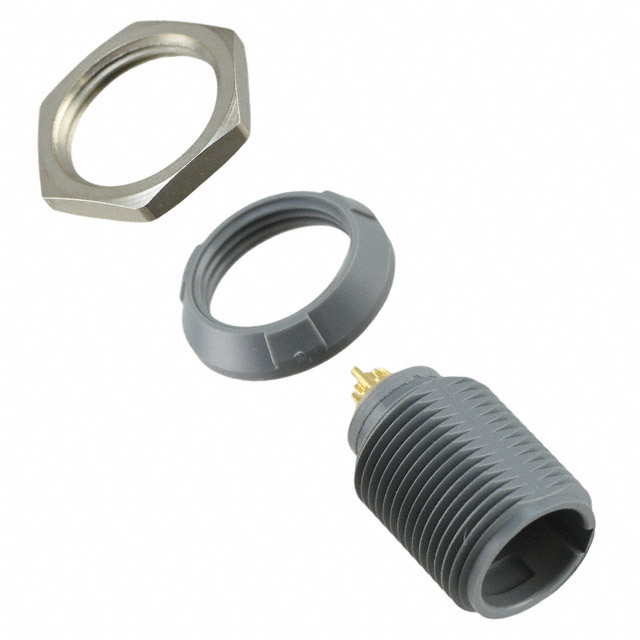

 LEMO | 8 | G | Polyetheretherketone (PEEK) | Gold | M08 | Receptacle Female Sockets | Plastic | 5 A | Detent Lock Push-Pull | 170 °C | -50 °C | Front and Rear Side Nut | Unshielded | Gray | Polyetherimide (PEI) | Panel Mount | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | |
LEMO | 6 | G | Polyetheretherketone (PEEK) | Gold | M06 | Receptacle Female Sockets | Plastic | 6 A | Detent Lock Push-Pull | 170 °C | -50 °C | Front and Rear Side Nut | Unshielded | Blue Gray | Polyetherimide (PEI) | Panel Mount | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | |
LEMO | 4 | G | Polyetheretherketone (PEEK) | Gold | M04 | Solder | Receptacle Female Sockets | Plastic | 8 A | Detent Lock Push-Pull | 150 °C | -50 °C | Front and Rear Side Nut | Unshielded | Black | Polysulfone (PSU) | Panel Mount Right Angle Through Hole | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected |
LEMO | 9 | G | Polyetheretherketone (PEEK) | Gold | M09 | Receptacle Female Sockets | Plastic | 3 A | Detent Lock Push-Pull | 170 °C | -50 °C | Front and Rear Side Nut | Unshielded | Black | Polyetherimide (PEI) | Panel Mount | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | |
LEMO | 4 | G | Polyetheretherketone (PEEK) | Gold | M04 | Crimp | Receptacle Female Sockets | Plastic | 8 A | Detent Lock Push-Pull | 170 °C | -50 °C | Front and Rear Side Nut | Unshielded | Polyetherimide (PEI) | Panel Mount | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | |
LEMO | 6 | G | Polyetheretherketone (PEEK) | Gold | M06 | Solder | Receptacle Female Sockets | Plastic | 6 A | Detent Lock Push-Pull | 170 °C | -50 °C | Front and Rear Side Nut | Unshielded | Blue Gray | Polyetherimide (PEI) | Panel Mount Right Angle Through Hole | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected |
