Circuit Protection
031303.2HXP
ActiveLITTELFUSE

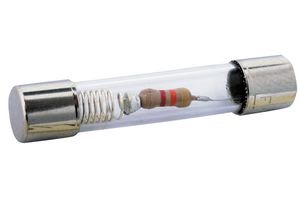

FUSE, CARTRIDGE, SLOW BLOW, 3.2 A, 250 V, 6.3MM X 32MM, 1/4" X 1-1/4", SLO-BLO 313 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
Circuit Protection
031303.2HXP
ActiveLITTELFUSE
FUSE, CARTRIDGE, SLOW BLOW, 3.2 A, 250 V, 6.3MM X 32MM, 1/4" X 1-1/4", SLO-BLO 313 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 031303.2HXP |
|---|---|
| Approval Agency | CE, K-Mark, UL, CSA, PSE |
| Breaking Capacity @ Rated Voltage | 100 A |
| Current Rating (Amps) | 3.2 A |
| DC Cold Resistance | 0.0529 Ohms |
| Fuse Type | Cartridge, Glass |
| Melting I²t | 209 I²t |
| Mounting Type | Requires Holder |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 C |
| Package / Case | 3AG, 3AB |
| Package / Case [x] | 0.25 in |
| Package / Case [y] | |
| Response Time | Slow Blow |
| Size / Dimension [diameter] | 6.35 mm |
| Size / Dimension [diameter] | 0.25 " |
| Size / Dimension [x] | 31.75 mm |
| Size / Dimension [x] | 1.25 in |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
031303.2 Series
The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
