Integrated Circuits (ICs)
MP2308GD-P
NRNDMonolithic Power Systems Inc.
SWITCHING VOLTAGE REGULATORS 4A, 18V, 300KHZ-2MHZ STEP-DOWN CONVERTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP2308GD-P |
|---|---|
| Current - Output | 4 A |
| Frequency - Switching [Max] | 2 MHz |
| Frequency - Switching [Min] | 300 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 14-PowerVFQFN |

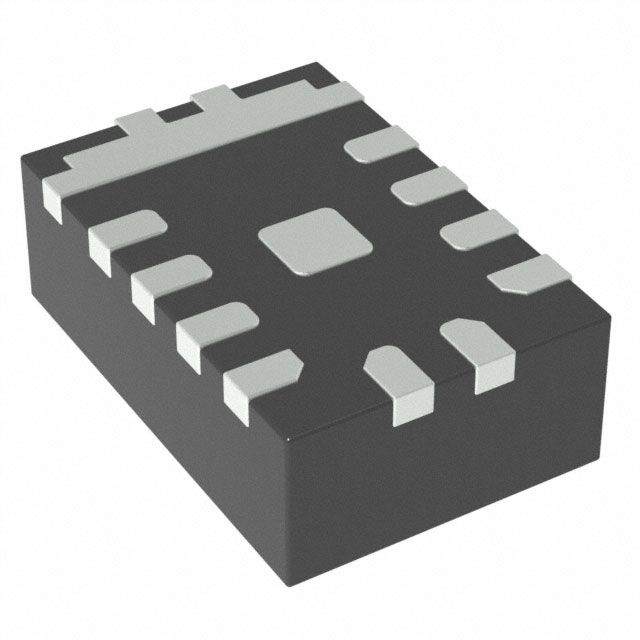

| Supplier Device Package | 14-FCQFN (2x3) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 4.75 V |
| Voltage - Output (Max) [Max] | 16.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MP2308 Series
Buck Switching Regulator IC Positive Adjustable 0.815V 1 Output 4A 14-PowerVFQFN
