Specification	151326-1

Color	Natural
For Use With/Related Products	0.25 in
For Use With/Related Products	Quick Connects
For Use With/Related Products	6.35 mm
Gender	Tab, Male
Material	Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	11
Stacking Direction	Top to Bottom and Side to Side
Style	Housing
Terminal Size	6.35 mm
Terminal Size	0.25 in
Terminal Type	Disconnect, Quick Connect

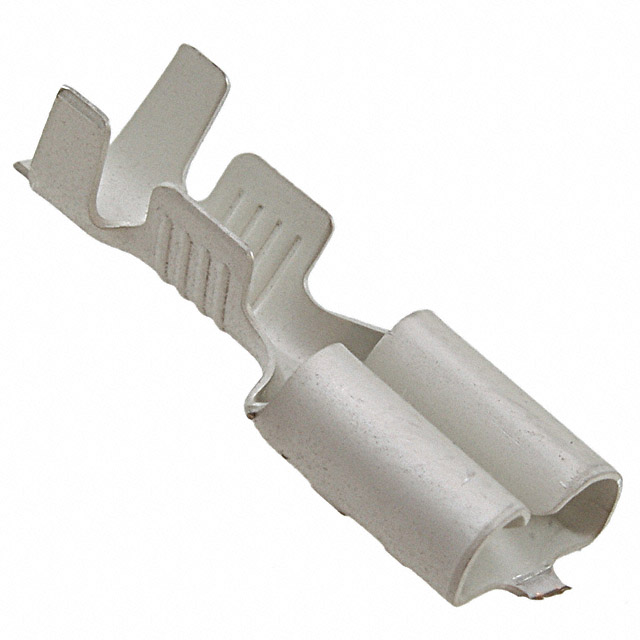

FASTIN-FASTON 250 Series

...

Part	Wire Gauge [Max]	Wire Gauge [Min]	Gender	Tab Thickness	Tab Thickness	Contact Finish	Mounting Type	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Tab Width	Tab Width	Tab Length	Tab Length	Terminal Type	Length - Overall [x]	Length - Overall [x]	Contact Material	Insulation	Termination	Length - Overall	Length - Overall	Tab Length	For Use With/Related Products	For Use With/Related Products	For Use With/Related Products	Note	Color	Number of Positions	Stacking Direction	Style	Material	Terminal Size	Terminal Size	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]

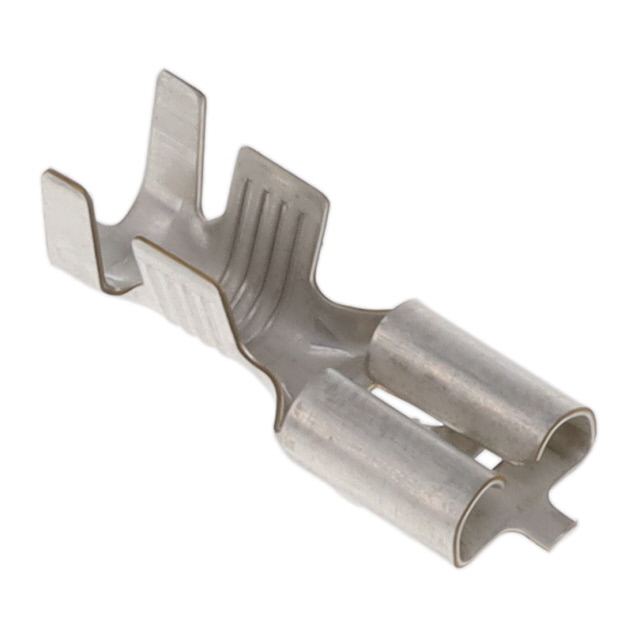

TE Connectivity Raychem Cable Protection 180351-8	12 AWG	10 AWG	Female	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)	5.1 mm	0.201 in	0.134 in	3.4 mm	6.35 mm	0.25 in	0.303 in	7.7 mm	Standard	19 mm	0.748 "	Brass	Non-Insulated	Crimp

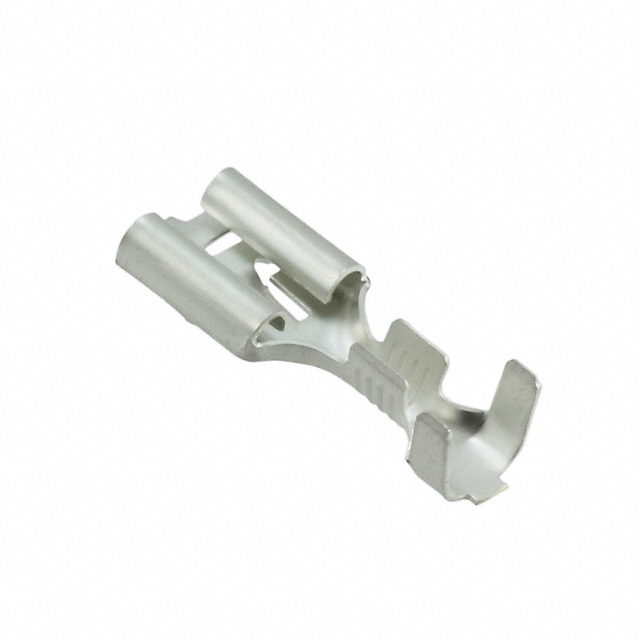

TE Connectivity Raychem Cable Protection 42663-2	16 AWG	12 AWG	Female	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)					7.92 mm	0.312 in		0.38 in	Standard			Brass	Non-Insulated	Crimp	23.24 mm	0.915 in	9.65 mm
TE Connectivity Raychem Cable Protection 160458-2	18 AWG	14 AWG	Male	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)	0.161 " 4.09 mm			0.122 " 3.1 mm	6.35 mm	0.25 in			Standard			Phosphor Bronze	Non-Insulated	Crimp

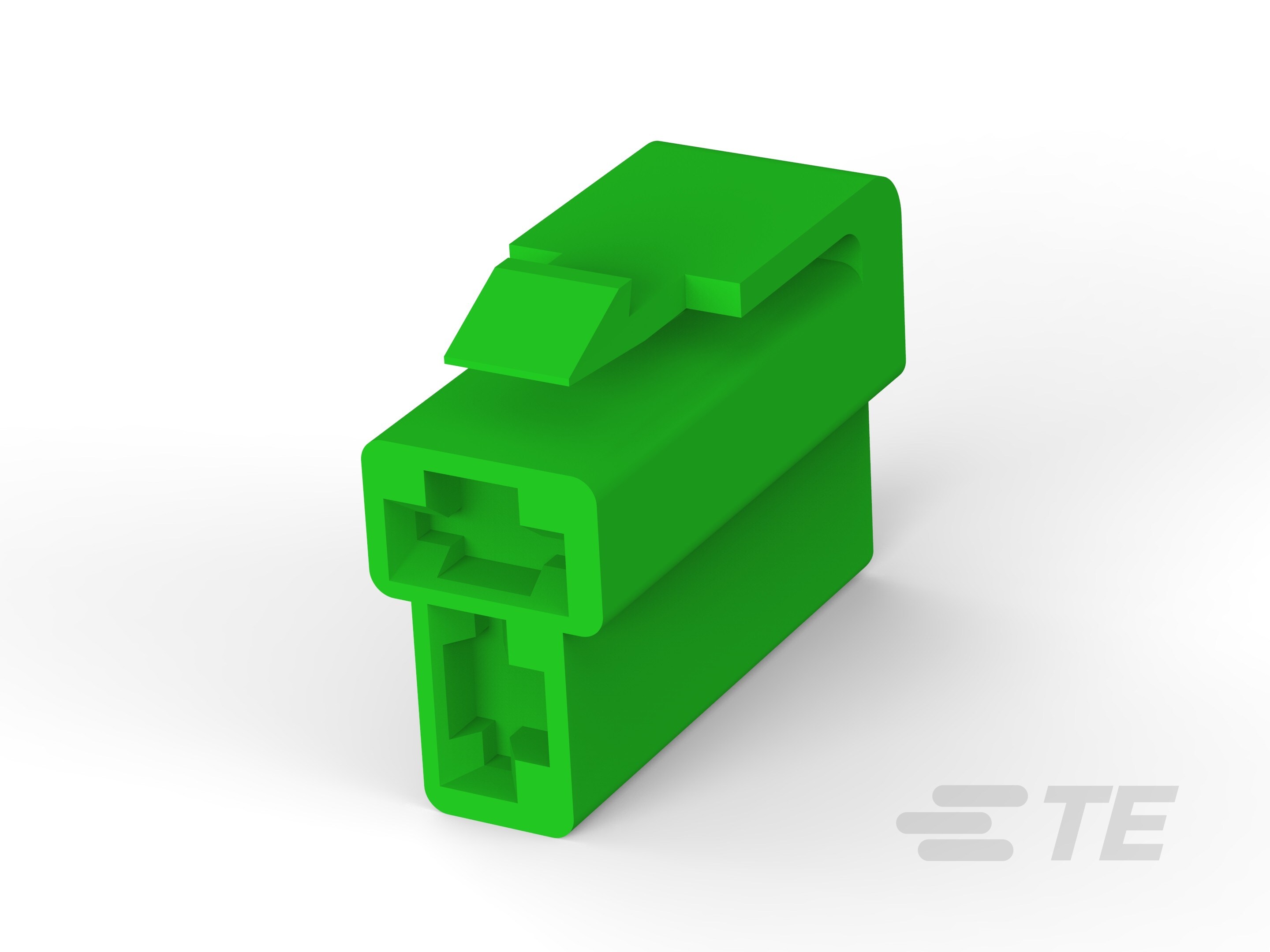

TE Connectivity Raychem Cable Protection 172130-4			Female Receptacle				Free Hanging (In-Line)									Disconnect Quick Connect									0.25 in	Quick Connects	6.35 mm	Contacts Not Included	Green	2	Perpendicular	Housing	Nylon	6.35 mm	0.25 in

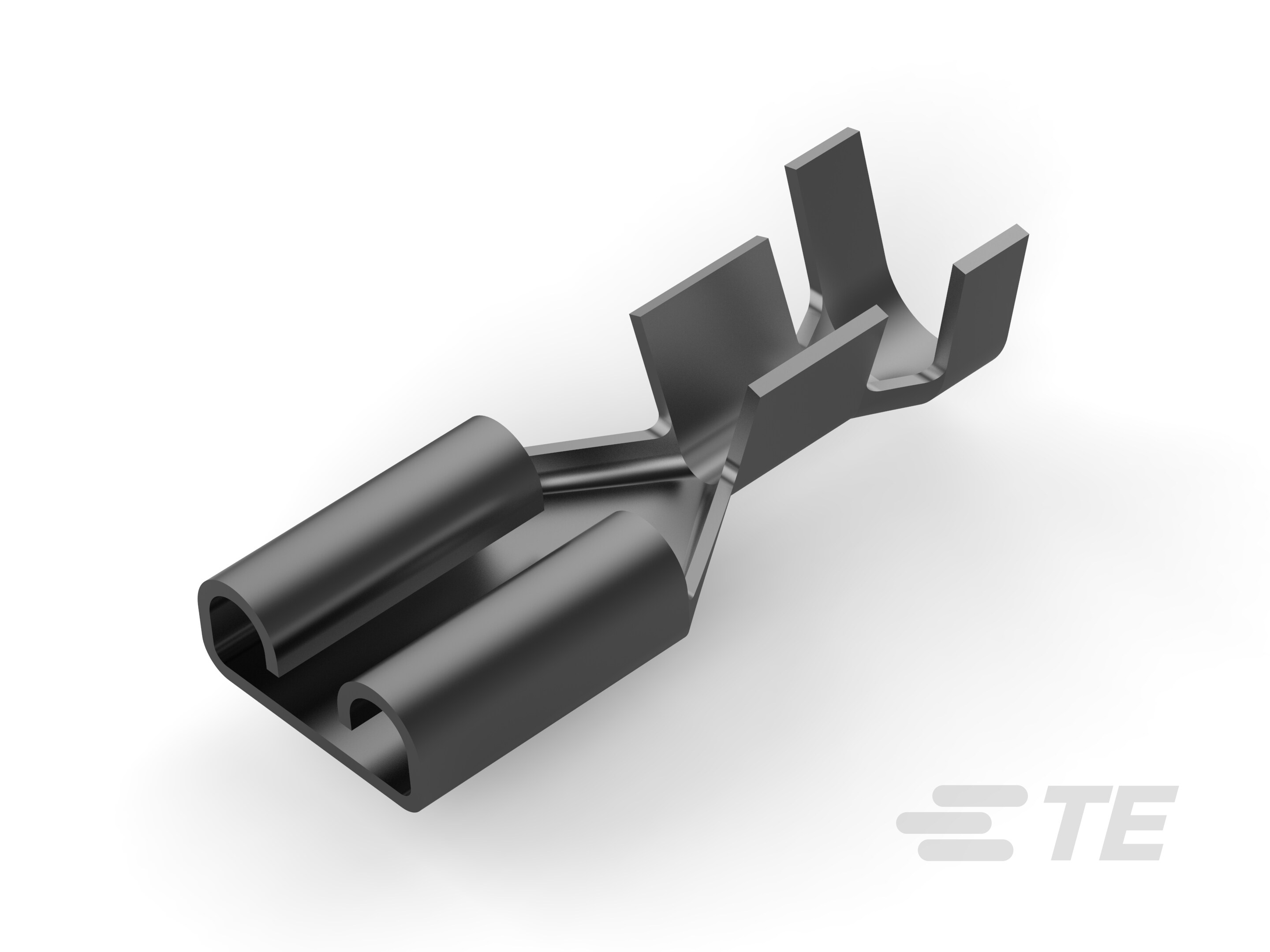

TE Connectivity Raychem Cable Protection 5-160446-5	17 AWG	14 AWG	Female	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)	4.09 mm	0.161 in	0.118 in	3 mm	6.35 mm	0.25 in		0.305 in	Standard	19.2 mm	0.756 in	Brass	Non-Insulated	Crimp			7.75 mm
TE Connectivity Raychem Cable Protection 1-293041-2	28 AWG	17 AWG	Male	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)					6.35 mm	0.25 in	0.618 in	15.7 mm	Standard	27 mm	1.063 in	Brass	Non-Insulated	Crimp

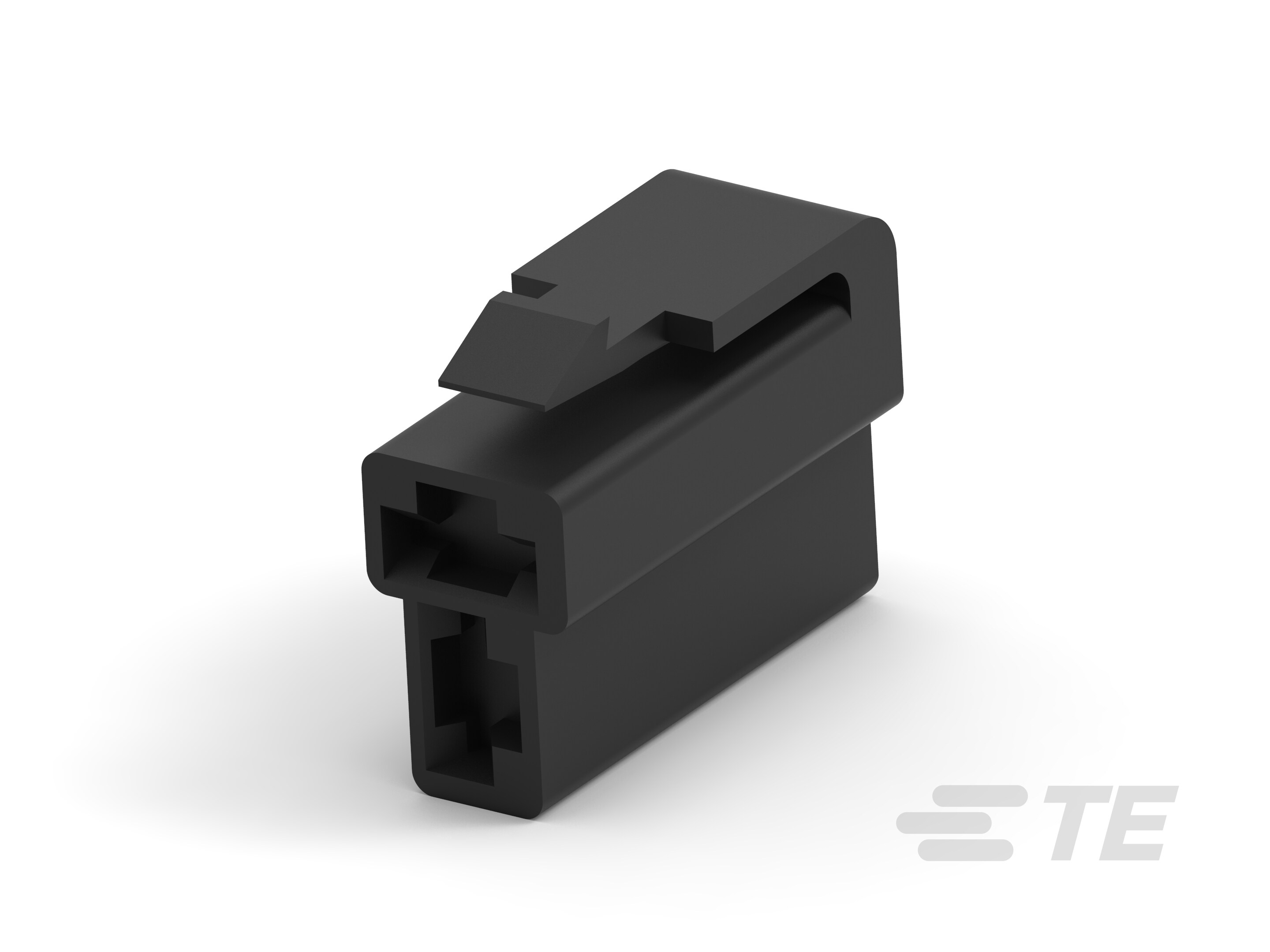

TE Connectivity Raychem Cable Protection 172130-7
TE Connectivity Raychem Cable Protection 5-160446-2	17 AWG	14 AWG	Female	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)	4.09 mm	0.161 in	0.118 in	3 mm	6.35 mm	0.25 in		0.305 in	Standard	19.2 mm	0.756 in	Phosphor Bronze	Non-Insulated	Crimp			7.75 mm

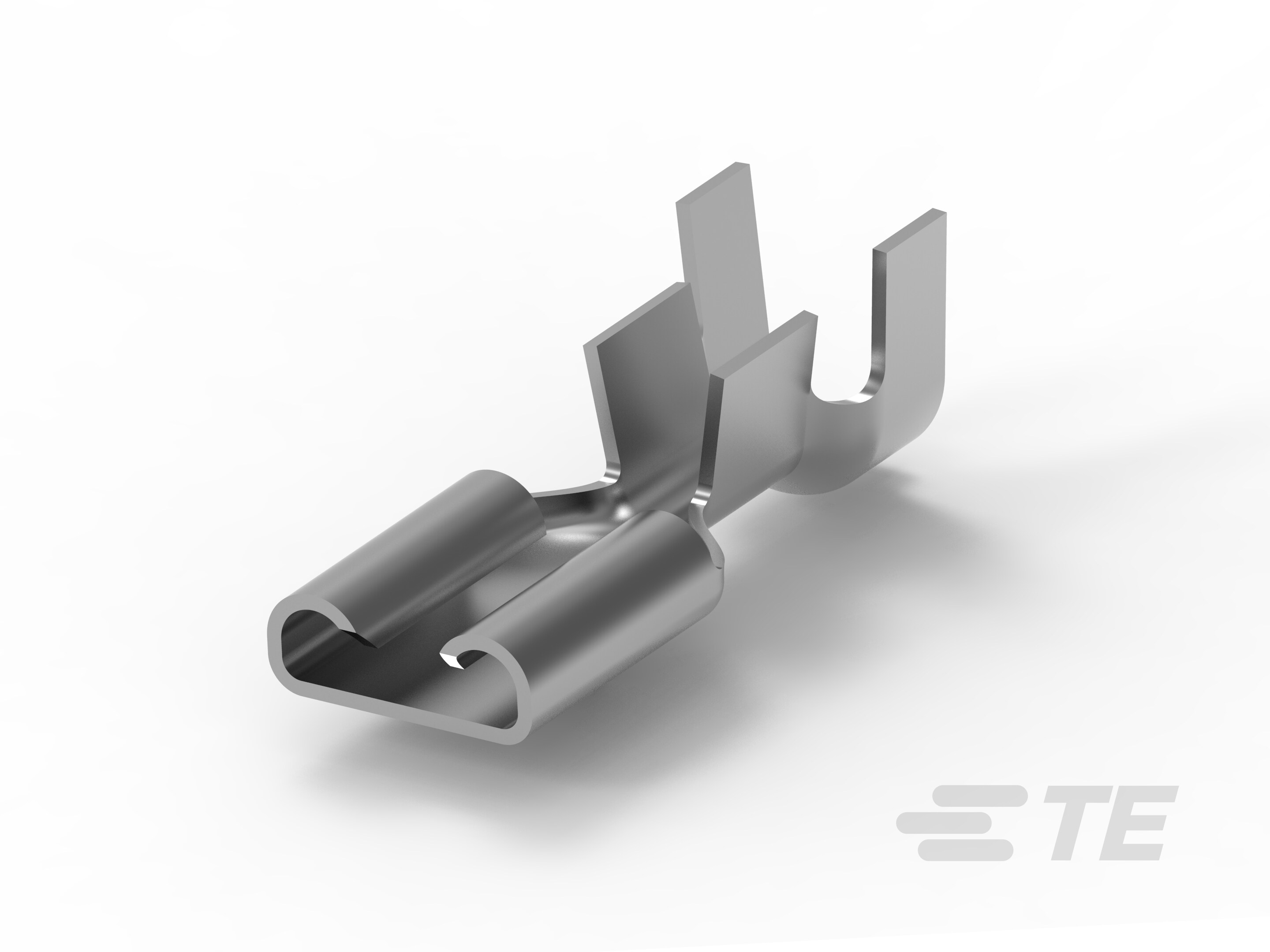

TE Connectivity Raychem Cable Protection 62891-1	16 AWG	12 AWG	Female	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)					6.35 mm	0.25 in		0.305 in	Standard		0.75 in	Brass	Non-Insulated	Crimp	19.05 mm		7.75 mm												4.83 mm	3.81 mm	0.15 "	0.19 "

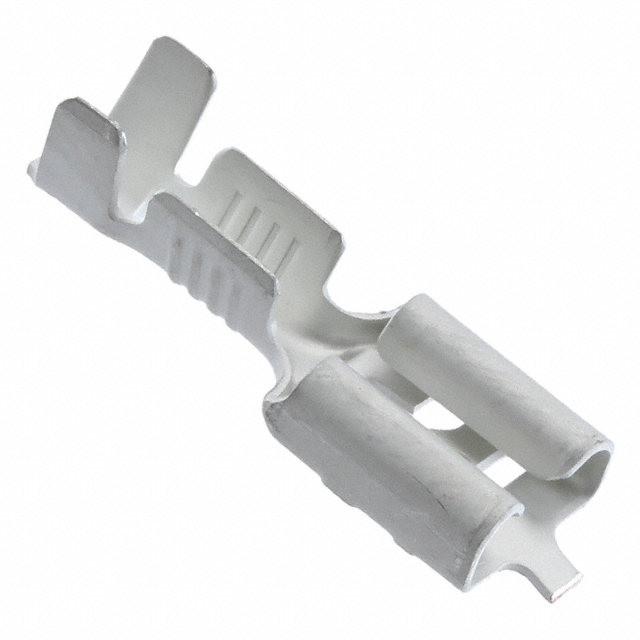

TE Connectivity Raychem Cable Protection 160917-4	17 AWG	14 AWG	Female	0.032 in	0.81 mm	Tin	Free Hanging (In-Line)	3.1 mm	0.122 "	0.083 "	2.11 mm	6.35 mm	0.25 in			Standard	19.2 mm	0.756 in	Phosphor Bronze	Non-Insulated	Crimp
