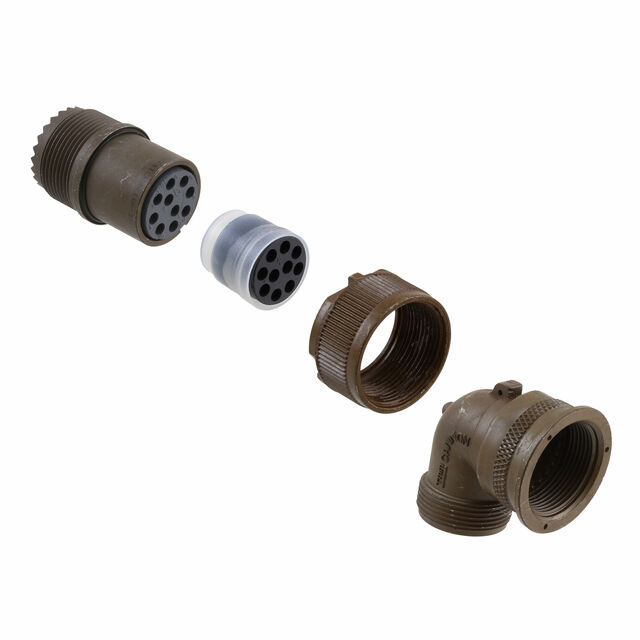

MS3108R18-1S

Active

CIRCULAR MIL SPEC CONNECTOR ER 10C 10#16 PIN PLUG RTANG

Search across all available documentation for this part.

Connectors, Interconnects

Active

CIRCULAR MIL SPEC CONNECTOR ER 10C 10#16 PIN PLUG RTANG

Technical Specifications

Parameters and characteristics for this part

Specification	MS3108R18-1S

Color	Olive Drab
Connector Type	Plug, Female Sockets
Contact Finish - Mating	Silver
Current Rating (Amps)	22 A
Fastening Type	Threaded
Features	Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	18-1
Voltage Rating	200 VAC, 250 V

Part	Orientation	Primary Material	Grade	Features	Shell Material	Number of Positions	Voltage Rating	Qualification	Connector Type	Fastening Type	Current Rating (Amps)	Shell Finish	Contact Finish - Mating	Color	Mounting Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Size - Insert	Voltage Rating [custom]	Voltage Rating [custom]
ITT Cannon, LLC MS3108R181S
ITT Cannon, LLC MS3108R18-11S	N (Normal)	Metal	Military	Backshell Coupling Nut	Aluminum Alloy	5	500 VAC 700 VDC	MIL-DTL-5015	Plug Female Sockets	Threaded	41 A	Olive Drab Cadmium	Silver	Olive Drab	Free Hanging (In-Line) Right Angle	Environment Resistant	-55 C	125 °C	18	11
ITT Cannon, LLC MS3108R18-1S	N (Normal)	Metal	Military	Backshell Coupling Nut	Aluminum Alloy	10	200 VAC 250 V	MIL-DTL-5015	Plug Female Sockets	Threaded	22 A	Olive Drab Cadmium	Silver	Olive Drab	Free Hanging (In-Line) Right Angle	Environment Resistant	-55 C	125 °C			18-1
ITT Cannon, LLC MS3108R18-4S	N (Normal)	Metal	Military	Backshell Coupling Nut	Aluminum Alloy	4		MIL-DTL-5015	Plug Female Sockets	Threaded	22 A	Olive Drab Cadmium	Silver	Olive Drab	Free Hanging (In-Line) Right Angle	Environment Resistant	-55 C	125 °C			18-4	1250 VDC	900 VAC
ITT Cannon, LLC MS3108R18-4SW	W	Metal	Military	Backshell Coupling Nut	Aluminum Alloy	4		MIL-DTL-5015	Plug Female Sockets	Threaded	22 A	Olive Drab Cadmium	Silver	Olive Drab	Free Hanging (In-Line) Right Angle	Environment Resistant	-55 C	125 °C			18-4	1250 VDC	900 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 105.17
Mouser	N/A	500	$ 127.85

General part information

10 Position Circular Connector Plug, Female Sockets Solder Cup
