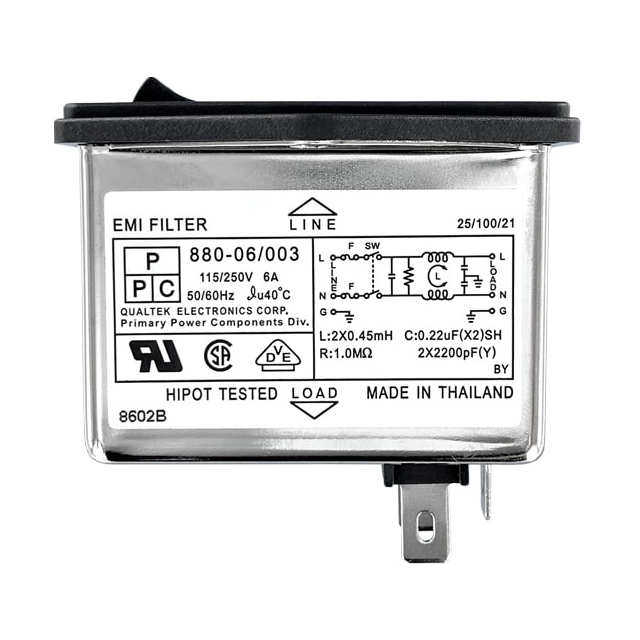

880-06/003

Active

POWER LINE FILTERS 6A DPST DBL FUSE

Search across all available documentation for this part.

Connectors, Interconnects

Active

POWER LINE FILTERS 6A DPST DBL FUSE

Technical Specifications

Parameters and characteristics for this part

Specification	880-06/003

Accomodates a Fuse	True
Approval Agency	CSA, UL, VDE
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Twin Fused
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	29.5 mm
Panel Cutout Dimensions [y]	60 mm
Switch Features	Switch On-Off
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

Part	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Connector Style	Switch Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Fuse Holder, Drawer	Connector Type	Approval Agency	Mounting Type	Current Rating - Appliance Inlet	Filter Type	Termination
Qualtek 880-06/006	115 VAC	250 VAC	IEC 320-C14	Switch On-Off	29.5 mm	60 mm	Fuse Holder	Receptacle Male Blades - Module	CSA UL VDE	Flange Panel Mount	6 A	Filtered (EMI RFI) - Commercial	Quick Connect
Qualtek 880-06/003	115 VAC	250 VAC	IEC 320-C14	Switch On-Off	29.5 mm	60 mm	Twin Fused	Receptacle Male Blades - Module	CSA UL VDE	Flange Panel Mount	6 A	Filtered (EMI RFI) - Commercial	Quick Connect
Qualtek 880-03/005	115 VAC	250 VAC	IEC 320-C14	Switch On-Off	29.5 mm	60 mm	Fuse Holder	Receptacle Male Blades - Module	CSA UL VDE	Flange Panel Mount	3 A	Filtered (EMI RFI) - Commercial	Quick Connect

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
