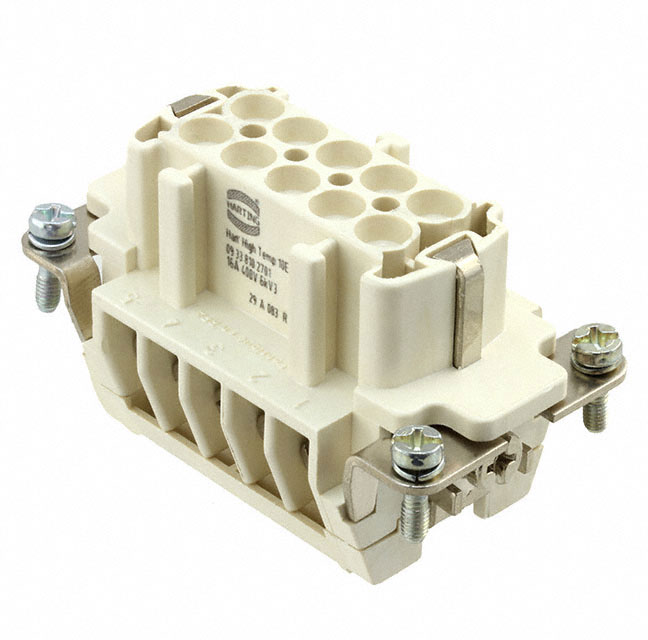

HEAVY DUTY CONNECTOR, 10+PE SIGNAL, HAN EMC/B, HIGH TEMP SERIES, INSERT, 11 CONTACTS, 10B

Search across all available documentation for this part.

Connectors, Interconnects

Obsolete

HEAVY DUTY CONNECTOR, 10+PE SIGNAL, HAN EMC/B, HIGH TEMP SERIES, INSERT, 11 CONTACTS, 10B

Technical Specifications

Parameters and characteristics for this part

Specification	09338102701

Color	Gray
Connector Type	Insert
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Number of Positions	10+Ground
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-40 C
Size	10B
Termination Style	Screw
Voltage Rating	400 V

Part	Housing Material	Voltage Rating	Termination Style	Gender	Size	Current Rating (Amps)	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Type	Contact Material	Material Flammability Rating	Color
HARTING 09338102604	Liquid Crystal Polymer (LCP)	500 V	Crimp	Male	10B	16 A	Insert without Contacts	-40 C	200 °C	10+Ground	Han® E
HARTING 09338102701	Liquid Crystal Polymer (LCP)	400 V	Screw	Female	10B	16 A	Insert	-40 C	200 °C	10+Ground		Copper Alloy	UL94 V-0	Gray
HARTING 09338102703	Liquid Crystal Polymer (LCP)	500 V	Screw	Female	10B	16 A	Insert	-40 C	200 °C	10+Ground
HARTING 09338102602	Liquid Crystal Polymer (LCP)	400 V	Crimp	Male	10B	16 A	Insert without Contacts	-40 C	200 °C	10+Ground	Han® E
