Hardware, Fasteners, Accessories
PSD-8M-19
ActiveEssentra Access Solutions

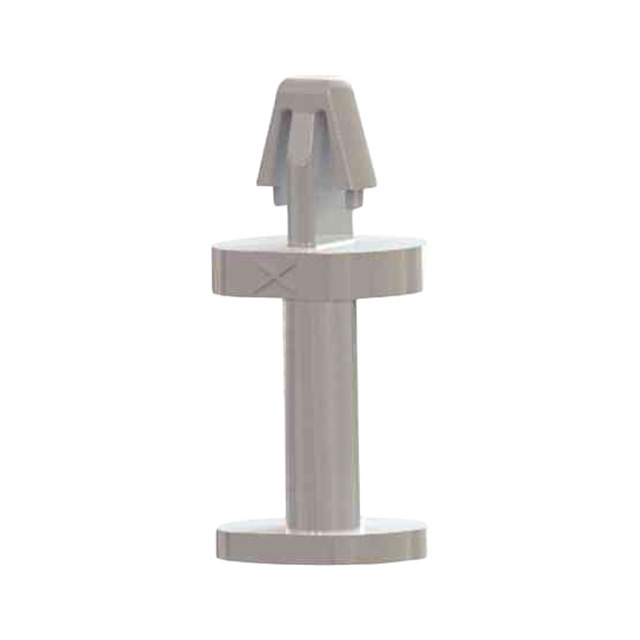

BRD SPT SNAP LOCK REST MNT 8MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Hardware, Fasteners, Accessories
PSD-8M-19
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK REST MNT 8MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSD-8M-19 |
|---|---|
| Between Board Height [z] | 0.315 in |
| Between Board Height [z] | 8 mm |
| Holding Type | Snap Lock |
| Length - Overall [x] | 0.526 in |
| Length - Overall [x] | 13.35 mm |
| Material | Nylon |
| Mounting Type | Resting Mount |
| Support Hole Diameter [diameter] | 0.122 in |
| Support Hole Diameter [diameter] | 3.1 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.45 | |
| 10 | $ 0.39 | |||
| 25 | $ 0.34 | |||
| 50 | $ 0.31 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.21 | |||
| 3000 | $ 0.20 | |||
Description
General part information
PSD-8M Series
Board Support Snap Lock / Resting Mount Nylon 0.315" (8.00mm)
Documents
Technical documentation and resources
