Switches

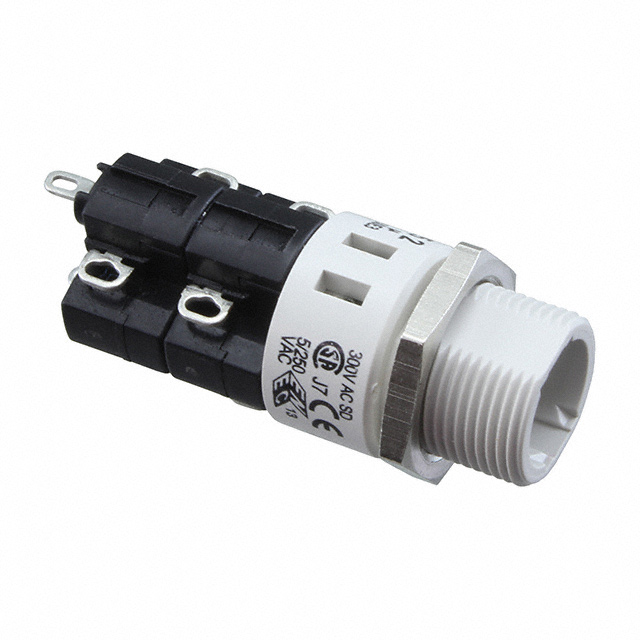

11-132.825

Obsolete

PUSHBUTTON SWITCHES IND LAMPPLG CONN

Search across all available documentation for this part.

Switches

Obsolete

PUSHBUTTON SWITCHES IND LAMPPLG CONN

Technical Specifications

Parameters and characteristics for this part

Specification	11-132.825

Actuator Marking	No Marking
Actuator Type	Button, Round
Circuit	DPDT (DB/DM)
Current Rating (Amps)	2 A, 5 A
Mounting Type	Panel Mount, Rear
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	250 V
Voltage Rating - DC	24 V

Part	Actuator Type	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Type	Circuit	Switch Function	Termination Style	Mounting Type	Actuator Marking	Voltage Rating - DC
EAO 11-132.825	Button Round	2 A 5 A	16 mm	250 V	Standard	DPDT (DB/DM)	On-Mom	Solder Lug	Panel Mount Rear	No Marking	24 V
EAO 11-131.825	Button Round	2 A 5 A	16 mm	250 V	Standard	SPDT (DB/DM)	On-Mom	Solder Lug	Panel Mount Rear	No Marking	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT (DB/DM) Standard Panel Mount, Rear
