Optoelectronics

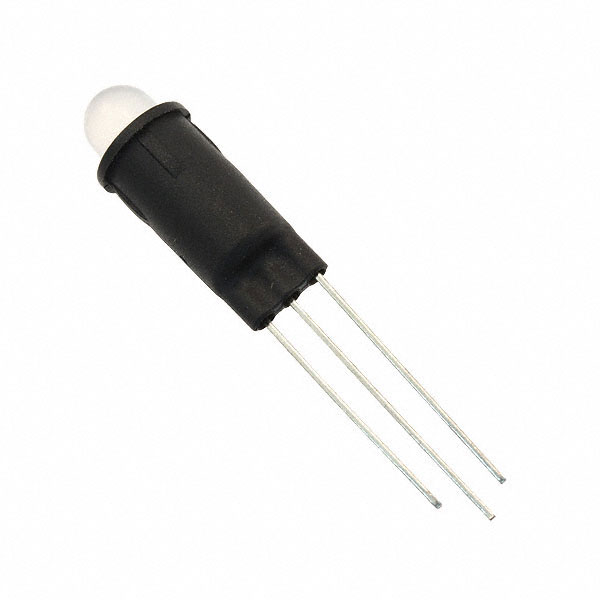

PM53-BC
ActiveBivar Inc.
MULTICOLOUR PANEL INDICATORS, GREEN, RED, 6.35 MM, R 2V, G 2.1V, NOT RATED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PM53-BC |
|---|---|
| Current | 30mA Green, 30mA Red |
| Lamp Color | Red, Green |
| Lens Color | White |
| Lens Size | 5 mm |
| Lens Size | T-1 3/4 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Panel Cutout Dimensions [x] | 6.35 mm |
| Panel Cutout Dimensions [x] | 0.25 in |
| Panel Cutout Shape | Round |
| Type | LED |
| Viewing Angle | 40 ° |
| Voltage | 2.1 V |
| Voltage | 2 V |
| Wavelength - Peak | 568 nm, 625 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PM53-BC Series
LED Panel Indicator Green, Red Diffused 40° 2.1V Green, 2V Red 30mA Green, 30mA Red
