Industrial Automation and Controls

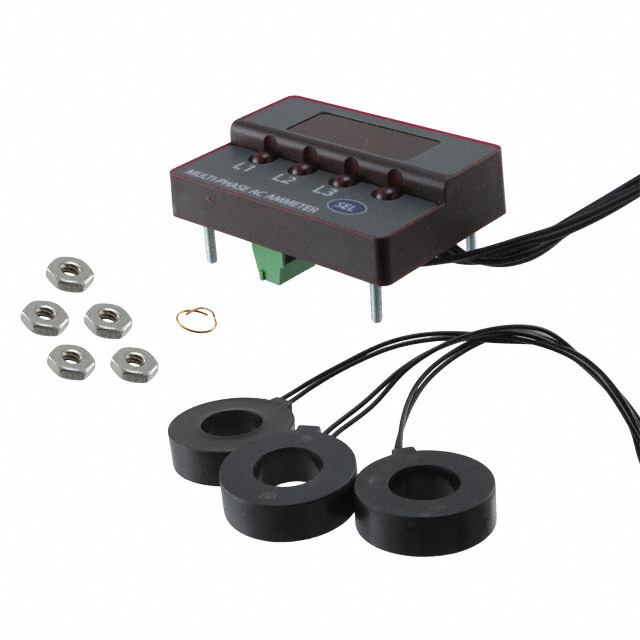

ACM3P-4-AC1-G-C
LTBMurata Electronics
THREE-PHASE AC AMMETERS FOR MEASURE AND DISPLAY THE TRUE-RMS CURRENT VALUE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACM3P-4-AC1-G-C |
|---|---|
| Display Characters - Height [custom] | 9.14 mm |
| Display Characters - Height [custom] | 0.36 in |
| Display Type | Green Characters, LED |
| Features | Built In Current Transformer (Primary) |
| Measuring Range [Max] | 100 A |
| Measuring Range [Min] | 0 A |
| Measuring Type | Current (3-Phase) |
| Mounting Type | Panel Mount - Surface |
| Number of Characters Per Row [custom] | 4 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Termination Style | Screw Terminal |
| Type | Ammeter |
| Voltage - Supply [Max] | 264 VAC |
| Voltage - Supply [Min] | 85 VAC/DC |
| Weight [custom] | 0.163 lb |
| Weight [custom] | 73.94 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 98.18 | |
| 5 | $ 92.28 | |||
| 10 | $ 86.39 | |||
| 25 | $ 80.50 | |||
| 50 | $ 75.60 | |||
| 100 | $ 72.54 | |||
| N/A | 9 | $ 98.18 | ||
Description
General part information
ACM3P-4 Series
Ammeter LED - Green Characters Display Panel Mount - Surface
