Capacitors

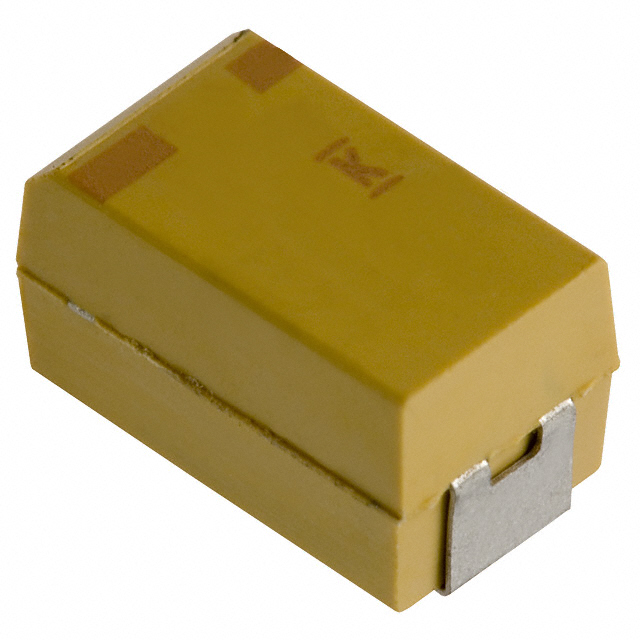

T498D475K050ATE480

Active

SURFACE MOUNT TANTALUM CAPACITOR, 4.7 ΜF, 50 V, 2917 [7343 METRIC], ± 10%, 0.48 OHM, D

Search across all available documentation for this part.

Capacitors

Active

SURFACE MOUNT TANTALUM CAPACITOR, 4.7 ΜF, 50 V, 2917 [7343 METRIC], ± 10%, 0.48 OHM, D

Technical Specifications

Parameters and characteristics for this part

Specification	T498D475K050ATE480

Capacitance	4.7 µF
ESR (Equivalent Series Resistance)	480 mOhm
Features	Automotive
Grade	Automotive
Height - Seated (Max) [Max] [z]	0.122 in
Height - Seated (Max) [Max] [z]	3.1 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	D
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 C
Package / Case	2917 (7343 Metric)
Qualification	AEC-Q200
Ratings	AEC-Q200
Size / Dimension [x]	7.3 mm
Size / Dimension [x]	0.287 "
Size / Dimension [y]	0.169 "
Size / Dimension [y]	4.3 mm
Tolerance	10 %
Type	Molded
Voltage - Rated	50 VDC

Part	Manufacturer Size Code	Grade	Ratings	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Lifetime @ Temp.	Package / Case	ESR (Equivalent Series Resistance)	Qualification	Tolerance	Capacitance	Mounting Type	Features	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]
KEMET T498D107K010ATE600	D	Automotive	AEC-Q200	10 V	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs	2917 (7343 Metric)	600 mOhm	AEC-Q200	10 %	100 µF	Surface Mount	Automotive	Molded	0.122 in	3.1 mm	-55 C	150 °C
KEMET T498D156K025ATE700	D	Automotive	AEC-Q200	25 VDC	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs	2917 (7343 Metric)	700 mOhm	AEC-Q200	10 %	15 µF	Surface Mount	Automotive	Molded	0.122 in	3.1 mm	-55 C	150 °C
KEMET T498D106K035ATE700	D	Automotive	AEC-Q200	35 V	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs	2917 (7343 Metric)	700 mOhm	AEC-Q200	10 %	10 µF	Surface Mount	Automotive	Molded	0.122 in	3.1 mm	-55 C	150 °C
KEMET T498D475K050ATE480	D	Automotive	AEC-Q200	50 VDC	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs	2917 (7343 Metric)	480 mOhm	AEC-Q200	10 %	4.7 µF	Surface Mount	Automotive	Molded	0.122 in	3.1 mm	-55 C	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4.7 µF Molded Tantalum Capacitors 50 V 2917 (7343 Metric) 480mOhm @ 100kHz
