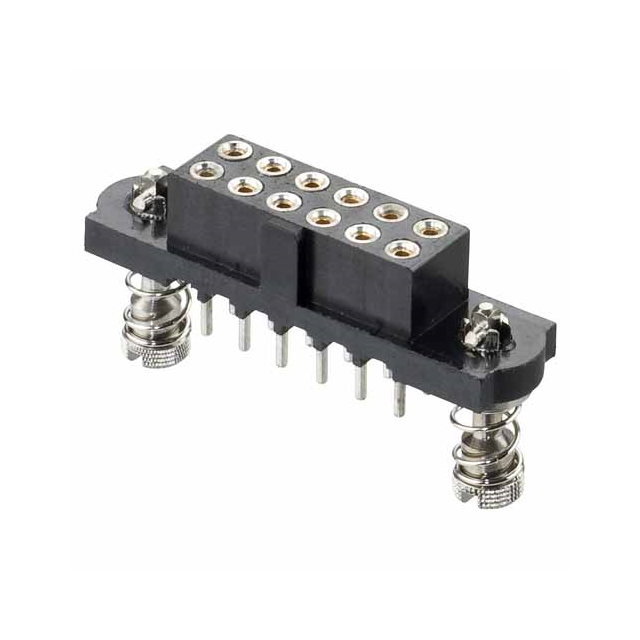

M80-4T13042FD

Active

Harwin Inc.

15+15 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. 101LOK ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec Sheet Datasheet +3

Connectors, Interconnects

M80-4T13042FD

Active

Harwin Inc.

15+15 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. 101LOK ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet Datasheet +3

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4T13042FD

Applications	Automotive, Military, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	12 Áin
Contact Finish Thickness - Mating	0.3 Ám
Contact Finish Thickness - Post	3.5 Ám
Contact Finish Thickness - Post	137.8 Áin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	2.2 A
Features	Mating Flange, Polarizing Key, Jackscrews, Mounting Flange
Insulation Color	Black
Insulation Height	5.2 mm
Insulation Height	0.205 "
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	7.3 mm, 7.55 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 C
Pitch - Mating	0.079 "
Pitch - Mating	2 mm
Row Spacing - Mating	2 mm
Row Spacing - Mating	0.079 in
Style	Cable, Board to Board
Termination	Solder
Voltage Rating	800 V

M80-4T1 Series

Part	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Applications	Insulation Material	Contact Finish - Post	Style	Current Rating (Amps)	Contact Type	Material Flammability Rating	Termination	Connector Type	Voltage Rating	Features	Number of Positions	Number of Positions Loaded	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Contact Length - Post	Contact Length - Post	Mated Stacking Heights	Contact Finish - Mating
Harwin Inc. M80-4T12042FD	Beryllium Copper	3.5 Ám	137.8 Áin	Circular	Automotive General Purpose Military	Polyphenylene Sulfide (PPS) Glass Filled	Tin	Board to Board Cable	2.2 A	Female Socket	UL94 V-0	Solder	Receptacle	800 V	Jackscrews Mating Flange Mounting Flange Polarizing Key	20	All	Black	0.079 "	2 mm	12 Áin	0.3 Ám	5.2 mm	0.205 "	-55 C	125 °C	2	2 mm	0.079 in	Through Hole	0.118 in	3 mm	7.3 mm 7.55 mm	Gold
Harwin Inc. M80-4T10405F1-04-321-00-000	Beryllium Copper Brass	0.25 çm	10 Áin	Circular	Automotive General Purpose Military	Polyphenylene Sulfide (PPS) Glass Filled	Gold	Board to Board Cable		Female Socket	UL94 V-0	Solder	Receptacle	800 V	Jackscrews Mating Flange Mounting Flange Polarizing Key	8	All	Black			12 Áin	0.3 Ám	5.2 mm	0.205 "	-55 C	125 °C	2			Through Hole			7.3 mm	Gold

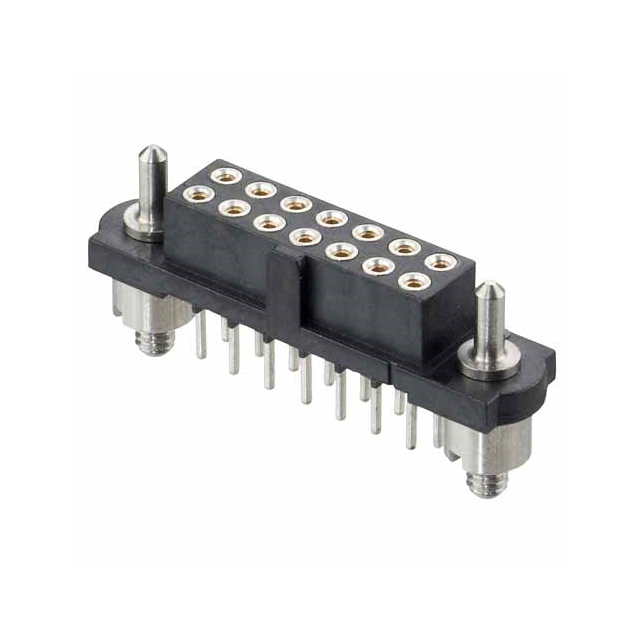

Harwin Inc. M80-4T10642F3	Beryllium Copper Brass	3.5 Ám	137.8 Áin	Circular	Automotive General Purpose Military	Polyphenylene Sulfide (PPS) Glass Filled	Tin	Board to Board Cable		Female Socket	UL94 V-0	Solder	Receptacle	800 V	Jackscrews Mating Flange Mounting Flange Polarizing Key	16	All	Black	0.079 "	2 mm	12 Áin	0.3 Ám	5.2 mm	0.205 "	-55 C	125 °C	2	2 mm	0.079 in	Through Hole			7.3 mm 7.55 mm	Gold
Harwin Inc. M80-4T15042FD	Beryllium Copper	3.5 Ám	137.8 Áin	Circular	Automotive General Purpose Military	Polyphenylene Sulfide (PPS) Glass Filled	Tin	Board to Board Cable	2.2 A	Female Socket	UL94 V-0	Solder	Receptacle	800 V	Jackscrews Mating Flange Mounting Flange Polarizing Key	50	All	Black	0.079 "	2 mm	12 Áin	0.3 Ám	5.2 mm	0.205 "	-55 C	125 °C	2	2 mm	0.079 in	Through Hole	0.118 in	3 mm	7.3 mm 7.55 mm	Gold

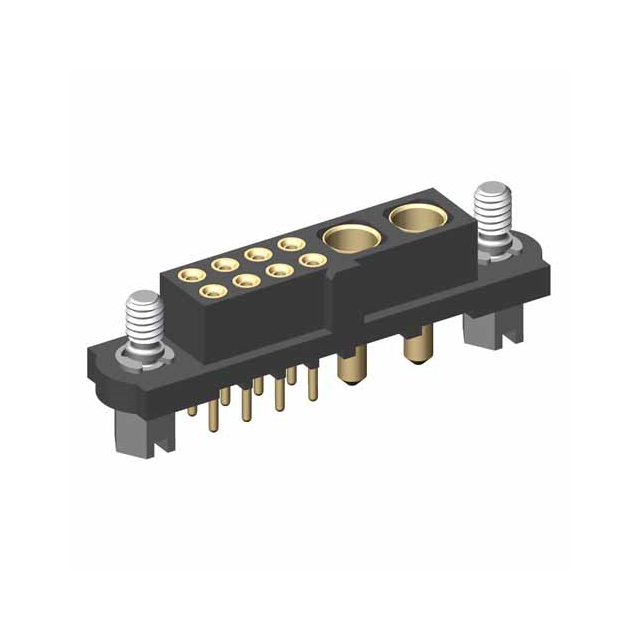

Harwin Inc. M80-4T10805F1-02-321-00-000	Copper Alloy	0.3 µm	12 µin	Circular		Polyphenylene Sulfide (PPS) Glass Filled	Gold		3 A	Female Socket	UL94 V-0	Solder	Receptacle	800 VAC	Polarizing Key	10	All	Black			12 Áin	0.3 Ám	5.2 mm	0.205 "	-55 C	125 °C				Through Hole	0.118 in	3 mm		Gold
Harwin Inc. M80-4T11442FD	Beryllium Copper	3.5 Ám	137.8 Áin	Circular	Automotive General Purpose Military	Polyphenylene Sulfide (PPS) Glass Filled	Tin	Board to Board Cable	2.2 A	Female Socket	UL94 V-0	Solder	Receptacle	800 V	Jackscrews Mating Flange Mounting Flange Polarizing Key	14	All	Black	0.079 "	2 mm	12 Áin	0.3 Ám	5.2 mm	0.205 "	-55 C	125 °C	2	2 mm	0.079 in	Through Hole	0.118 in	3 mm	7.3 mm 7.55 mm	Gold
Harwin Inc. M80-4T13042FD	Beryllium Copper	3.5 Ám	137.8 Áin	Circular	Automotive General Purpose Military	Polyphenylene Sulfide (PPS) Glass Filled	Tin	Board to Board Cable	2.2 A	Female Socket	UL94 V-0	Solder	Receptacle	800 V	Jackscrews Mating Flange Mounting Flange Polarizing Key	30	All	Black	0.079 "	2 mm	12 Áin	0.3 Ám	5.2 mm	0.205 "	-55 C	125 °C	2	2 mm	0.079 in	Through Hole	0.118 in	3 mm	7.3 mm 7.55 mm	Gold
