3M 1170 1.5"SQ-100

RF and Wireless

1170SQ-1.5(100)

Active

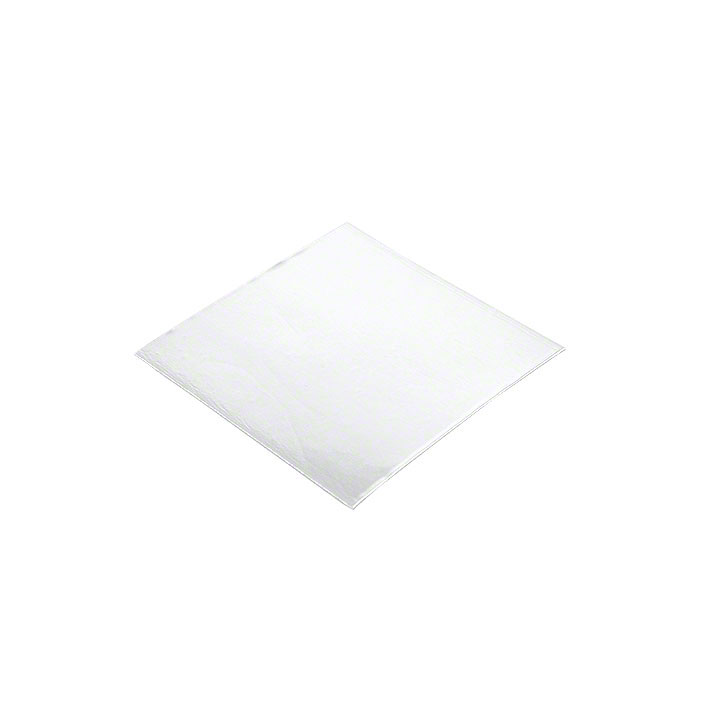

RF SHLDING SHEET 1.5"X1.5" 100PK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3M 1170 1.5"SQ-100

RF and Wireless

1170SQ-1.5(100)

Active

RF SHLDING SHEET 1.5"X1.5" 100PK

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1170SQ-1.5(100)

Adhesive	Single Sided, Conductive
Length	1.5 in
Length	38.1 mm
Material	Aluminum Foil
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 C
Shape	Square
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	27 °C
Storage/Refrigeration Temperature [Max]	80 °F
Storage/Refrigeration Temperature [Min]	10 C
Storage/Refrigeration Temperature [Min]	10 C
Thickness - Overall	0.08 mm
Thickness - Overall	0.003 "
Type	Shielding Sheet
Width	38.1 mm
Width	1.5 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2	$ 78.69
		100	$ 67.37
	N/A	0	$ 89.27

Description

General part information

1170 Series

RF EMI Shielding Sheet 1170 Aluminum Foil Conductive, Single Sided 1.500" (38.10mm) X 1.500" (38.10mm) X 0.003" (0.08mm)

Documents

Technical documentation and resources

Datasheet

1170 Series

Part	Shelf Life Start	Shelf Life	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Material	Thickness - Overall	Thickness - Overall	Width [x]	Width [x]	Adhesive	Type	Shape	Width	Width	Length	Length
3M (TC) 1170CIR-2(100)	Date of Manufacture	60 Months	10 C	27 °C	10 C	80 °F	130 °C	-40 C	Aluminum Foil	0.08 mm	0.003 "	50.8 mm	2 in	Conductive Single Sided	Shielding Sheet	Circular
3M (TC) 3M 1170 CIRCLE-1.5"-100	Date of Manufacture	60 Months	10 C	27 °C	10 C	80 °F	130 °C	-40 C	Aluminum Foil	0.08 mm	0.003 "			Conductive Single Sided	Shielding Sheet	Circular	38.1 mm	1.5 in
3M (TC) 1170SQ-1.5(100)	Date of Manufacture	60 Months	10 C	27 °C	10 C	80 °F	130 °C	-40 C	Aluminum Foil	0.08 mm	0.003 "			Conductive Single Sided	Shielding Sheet	Square	38.1 mm	1.5 in	1.5 in	38.1 mm
3M (TC) 3M 1170 1/2" X 2"-100	Date of Manufacture	60 Months	10 C	27 °C	10 C	80 °F	130 °C	-40 C	Aluminum Foil	0.08 mm	0.003 "			Conductive Single Sided	Shielding Sheet	Rectangular	12.7 mm	0.5 in	2 in	50.8 mm
3M (TC) 3M 1170 3/4" X 2"-100	Date of Manufacture	60 Months	10 C	27 °C	10 C	80 °F	130 °C	-40 C	Aluminum Foil	0.08 mm	0.003 "	19.05 mm	0.75 in	Conductive Single Sided	Shielding Sheet	Rectangular			2 in	50.8 mm
3M (TC) 3M 1170 CIRCLE-0.5"-250	Date of Manufacture	60 Months	10 C	27 °C	10 C	80 °F	130 °C	-40 C	Aluminum Foil	0.08 mm	0.003 "			Conductive Single Sided	Shielding Sheet	Circular	12.7 mm	0.5 in
3M (TC) 1170-0.5-3(100)	Date of Manufacture	60 Months	10 C	27 °C	10 C	80 °F	130 °C	-40 C	Aluminum Foil	0.08 mm	0.003 "			Conductive Single Sided	Shielding Sheet	Rectangular	12.7 mm	0.5 in	3 in	76.2 mm
3M (TC) 1170CIR-1(250)	Date of Manufacture	60 Months	10 C	27 °C	10 C	80 °F	130 °C	-40 C	Aluminum Foil	0.08 mm	0.003 "	25.4 mm	1 in	Conductive Single Sided	Shielding Sheet	Circular
3M (TC) 3M 1170 0.75"SQ-250	Date of Manufacture	60 Months	10 C	27 °C	10 C	80 °F	130 °C	-40 C	Aluminum Foil	0.08 mm	0.003 "	19.05 mm	0.75 in	Conductive Single Sided	Shielding Sheet	Rectangular			0.75 in	19.05 mm
3M (TC) 1170SQ-1(250)	Date of Manufacture	60 Months	10 C	27 °C	10 C	80 °F	130 °C	-40 C	Aluminum Foil	0.08 mm	0.003 "	25.4 mm	1 in	Conductive Single Sided	Shielding Sheet	Square			1 in	25.4 mm
