Switches

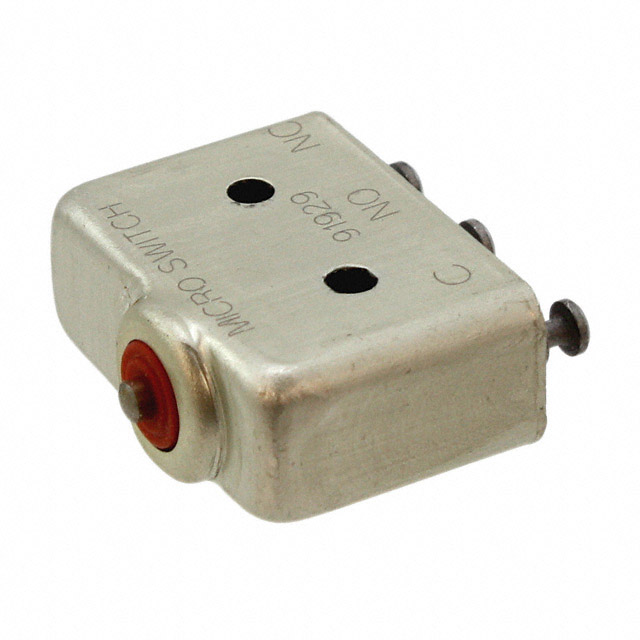

1SE1-T

Active

BASIC / SNAP ACTION SWITCHES 5A @ 250 VAC SPDT

Search across all available documentation for this part.

Switches

Active

BASIC / SNAP ACTION SWITCHES 5A @ 250 VAC SPDT

Technical Specifications

Parameters and characteristics for this part

Part	Pretravel	Pretravel	Voltage Rating - DC	Overtravel [custom]	Overtravel [custom]	Mounting Type	Actuator Type	Switch Function	Operating Position	Operating Position	Ingress Protection	Operating Force [Max]	Operating Force [Min]	Release Force	Voltage Rating - AC	Circuit	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Differential Travel	Differential Travel	Termination Style
Honeywell Sensing and Productivity Solutions 1SE1-6	0.05 in	1.27 mm	30 V	0.003 "	0.076 mm	Chassis Mount	Round (Pin Plunger)	On-Mom	10.8 mm	0.425 in	Waterproof	482 gf	141 gf	113 gf	250 V	SPDT	5 A	105 ░C	-54 °C	0.1 mm	0.004 in	Wire Leads
Honeywell Sensing and Productivity Solutions 1SE1-T	0.05 in	1.27 mm	30 V	0.003 "	0.076 mm	Chassis Mount	Round (Pin Plunger)	On-Mom	10.8 mm	0.425 in	Waterproof	482 gf	141 gf	113 gf	250 V	SPDT	5 A	105 ░C	-54 °C	0.1 mm	0.004 in	Solder Turret

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
