Technical Specifications
Parameters and characteristics for this part
| Specification | 217KR13 NC032 |
|---|---|
| Applications | Industrial |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Color | Black |
| Connector Type | Plug, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Fastening Type | Threaded |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyurethane (PUR) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Black Anodized |
| Shell Material | Aluminum |
| Shell Size - Insert | 0.875 in, 4 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information

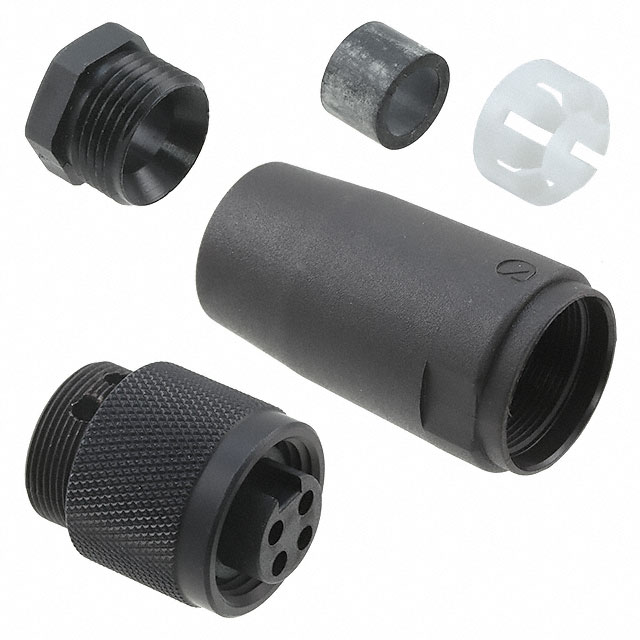

217KR13 Series
4 Position Circular Connector Plug, Female Sockets Screw
