Technical Specifications
Parameters and characteristics for this part
| Specification | WP21-S020VA1-R8000 |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.1 Ám |
| Contact Finish Thickness | 4 Áin |
| Features | Solder Retention |
| Height Above Board [z] | 0.59 mm |
| Height Above Board [z] | 0.023 in |
| Mated Stacking Heights | 0.6 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Rows [custom] | 2 |
| Pitch | 0.014 in |
| Pitch | 0.35 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.22 | |
| 10 | $ 1.03 | |||
| 25 | $ 0.99 | |||
| 50 | $ 0.96 | |||
| 100 | $ 0.92 | |||
| 250 | $ 0.84 | |||
| 500 | $ 0.75 | |||
| 1000 | $ 0.67 | |||
| 2500 | $ 0.61 | |||
| Digi-Reel® | 1 | $ 1.22 | ||
| 10 | $ 1.03 | |||
| 25 | $ 0.99 | |||
| 50 | $ 0.96 | |||
| 100 | $ 0.92 | |||
| 250 | $ 0.84 | |||
| 500 | $ 0.75 | |||
| 1000 | $ 0.67 | |||
| 2500 | $ 0.61 | |||
| N/A | 1033 | $ 1.09 | ||
| Tape & Reel (TR) | 8000 | $ 0.56 | ||
| 16000 | $ 0.55 | |||
Description
General part information
WP21-S02 Series

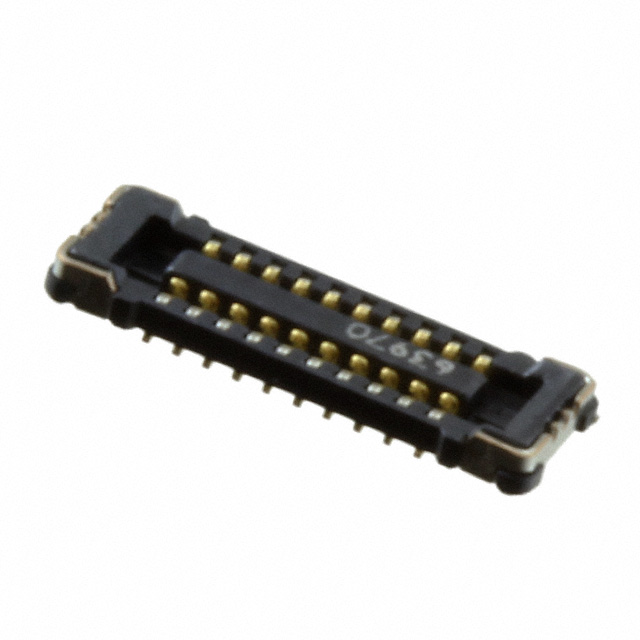

20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
