MPQ8616GL-12-P

NRND

Monolithic Power Systems Inc.

DC-DC SWITCHING SYNCHRONOUS BUCK REGULATOR, 1.5V-6V IN, 610MV TO 4.5V OUT, 12A, 1MHZ, QFN-EP-14

Deep-Dive with AI

Search across all available documentation for this part.

Integrated Circuits (ICs)

MPQ8616GL-12-P

NRND

Monolithic Power Systems Inc.

DC-DC SWITCHING SYNCHRONOUS BUCK REGULATOR, 1.5V-6V IN, 610MV TO 4.5V OUT, 12A, 1MHZ, QFN-EP-14

Deep-Dive with AI

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPQ8616GL-12-P

Current - Output	12 A
Frequency - Switching [Max]	1 MHz
Frequency - Switching [Min]	300 kHz
Function	Step-Down
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 C
Output Configuration	Positive
Output Type	Adjustable

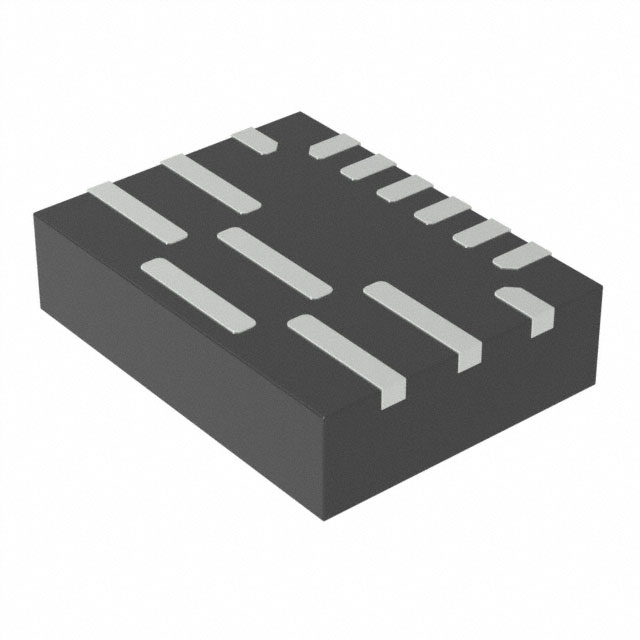

Package / Case	14-VFQFN
Supplier Device Package	14-QFN (3x4)
Synchronous Rectifier	True
Topology	Buck
Voltage - Input (Max) [Max]	6 V
Voltage - Input (Min) [Min]	1.5 V
Voltage - Output (Max) [Max]	4.5 V
Voltage - Output (Min/Fixed)	0.61 V

MPQ8616 Series

Part	Output Type	Topology	Package / Case	Output Configuration	Frequency - Switching [Max]	Frequency - Switching [Min]	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Number of Outputs	Supplier Device Package	Current - Output	Voltage - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Function	Outputs and Type	Outputs and Type	Board Type	Supplied Contents	Frequency - Switching	Contents	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Utilized IC / Part	Regulator Topology	Voltage - Output
Monolithic Power Systems Inc. MPQ8616GL-12-P	Adjustable	Buck	14-VFQFN	Positive	1 MHz	300 kHz	0.61 V	6 V	1.5 V	Surface Mount	1	14-QFN (3x4)	12 A	4.5 V	-40 C	125 °C	Step-Down
Monolithic Power Systems Inc. MPQ8616GL-6-P	Adjustable	Buck	14-VFQFN	Positive	1 MHz	300 kHz	0.61 V	6 V	1.5 V	Surface Mount	1	14-QFN (3x4)	6 A	4.5 V	-40 C	125 °C	Step-Down
Monolithic Power Systems Inc. EVQ8616-L-6-00A													6 A					1	1 Non-Isolated Output Non-Isolated	Fully Populated	Board(s)	600 kHz	Board(s)	6 V	3 V	DC/DC Step Down	MPQ8616-6	Buck	1.2 V
Monolithic Power Systems Inc. EVQ8616-L-12-00A													12 A					1	1 Non-Isolated Output Non-Isolated	Fully Populated	Board(s)	600 kHz	Board(s)	6 V	3 V	DC/DC Step Down	MPQ8616-12	Buck	1.2 V
Monolithic Power Systems Inc. MPQ8616GL-6-Z	Adjustable	Buck	14-VFQFN	Positive	1 MHz	300 kHz	0.61 V	6 V	1.5 V	Surface Mount	1	14-QFN (3x4)	6 A	4.5 V	-40 C	125 °C	Step-Down
Monolithic Power Systems Inc. MPQ8616GL-12-Z	Adjustable	Buck	14-VFQFN	Positive	1 MHz	300 kHz	0.61 V	6 V	1.5 V	Surface Mount	1	14-QFN (3x4)	12 A	4.5 V	-40 C	125 °C	Step-Down

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.27
	Digi-Reel®	1	$ 5.27
	N/A	0	$ 4.83
	Tape & Reel (TR)	500	$ 3.30
		1000	$ 2.79
		2500	$ 2.65
Newark	Each (Supplied on Cut Tape)	1	$ 5.18
		10	$ 4.92
		25	$ 4.72
		50	$ 4.53
		100	$ 4.33
		250	$ 4.10
		500	$ 4.03
		1000	$ 4.03

Description

General part information

MPQ8616 Series

Buck Switching Regulator IC Positive Adjustable 0.61V 1 Output 12A 14-VFQFN

Documents

Technical documentation and resources

No documents available
