Specification	SNP76GHS0X2

Color	Black
Features	Heat Stabilized, Impact Resistant
Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 HB
Material Thickness	1.7 mm
Material Thickness	0.067 "
Opening Size [Max]	82.68 mm
Opening Size [Max]	3.255 in
Opening Size [Min]	2.898 in
Opening Size [Min]	73.61 mm
Type	Clamp, Hose
Width [x]	9.91 mm
Width [x]	0.39 "

SNP76G Series

Part	Width [y]	Width [y]	Features	Material	Type	Opening Size [Max]	Opening Size [Min]	Opening Size [Max]	Opening Size [Min]	Material Thickness	Material Thickness	Length [Max]	Length [Min]	Color	Material Flammability Rating	Type Attributes	Width [x]	Width [x]	Opening Size [Max]

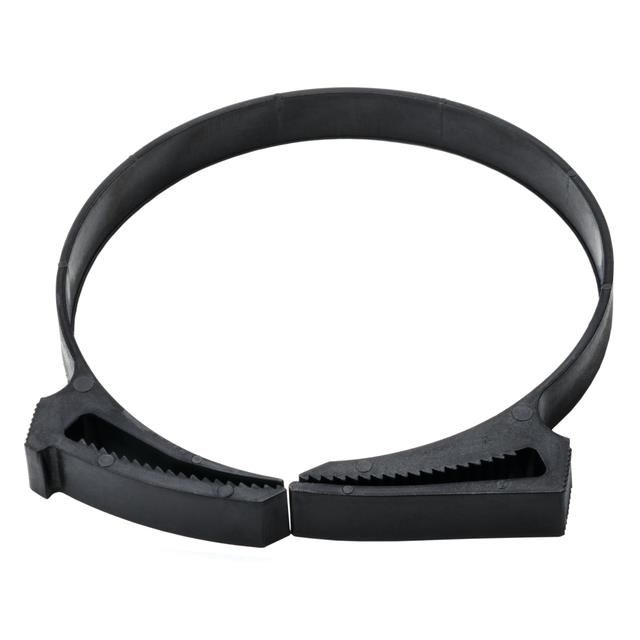

HELLERMANNTYTON SNP76GHS0C2	9.93 mm	0.391 in	Heat Stabilized Impact Resistant	Polyamide (PA66) Nylon 6/6 Glass Filled	Clamp Hose	3.276 "	2.901 "	83.21 mm	73.69 mm	1.7 mm	0.067 "	2.862 in 72.69 mm	1.704 in 43.28 mm	Black	UL94 HB	Push-Fit
HELLERMANNTYTON SNP76GHS0X2			Heat Stabilized Impact Resistant	Polyamide (PA66) Nylon 6/6 Glass Filled	Clamp Hose	3.255 in	2.898 in		73.61 mm	1.7 mm	0.067 "			Black	UL94 HB		9.91 mm	0.39 "	82.68 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
