Optoelectronics

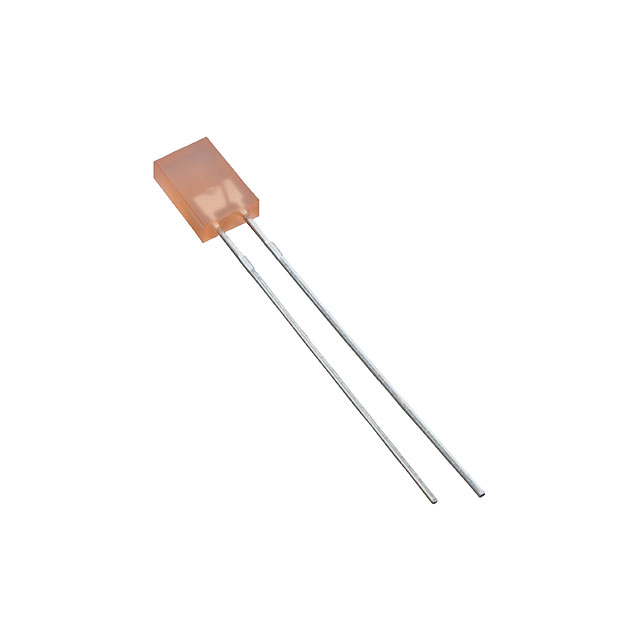

HLMP-S400

Active

Broadcom Limited

LED ORANGE DIFF RECT 2MMX5MM T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Optoelectronics

HLMP-S400

Active

Broadcom Limited

LED ORANGE DIFF RECT 2MMX5MM T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLMP-S400

Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	8 mm
Lens Color	Orange
Lens Size [x]	5.06 mm
Lens Size [y]	2.11 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Diffused
Millicandela Rating	3.5 mcd
Mounting Type	Through Hole
Package / Case	Radial
Supplier Device Package	Rectangular 2mmx5mm
Viewing Angle	110 °
Voltage - Forward (Vf) (Typ)	1.9 V
Wavelength - Dominant	602 nm
Wavelength - Peak	600 nm

HLMP Series

Part	Millicandela Rating	Color	Current - Test	Viewing Angle	Configuration	Wavelength - Dominant	Supplier Device Package	Lens Size	Lens Size	Height (Max) [z]	Mounting Type	Lens Color	Lens Transparency	Lens Style	Package / Case	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Lens Size [diameter]	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [Max] [z]	Type	Current - DC Forward (If) (Max) [Max]	Radiant Intensity (Ie) Min @ If [Min]	Wavelength	Wavelength [Min]	Wavelength [Max]	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Height (Max) [Max]	Lens Size [x]	Lens Size [y]
Broadcom Limited HLMP-C515	300 mcd	Green	20 mA	15 °	Standard	569 nm	T-1 3/4	5 mm	T-1 3/4	8.91 mm	Through Hole	Green	Clear	Round with Domed Top	Radial	2.2 V	570 nm
Broadcom Limited HLMP-7000	1 mcd	Red	2 mA	90 °	Standard	626 nm	Axial			2.92 mm	Axial Through Hole	Red	Diffused	Round with Domed Top	Axial Flat Leads	1.8 V	635 nm	1.91 mm Dia	2.08 mm	2.21 mm
Broadcom Limited HLMP-1521-E00A2	22 mcd	Green	10 mA	45 °	Standard	569 nm	T-1 (3mm)	3 mm	T-1	6.35 mm	Right Angle Through Hole	Green	Clear	Round with Domed Top	Radial	2.1 V	565 nm
Broadcom Limited HLMP-Q150	1.8 mcd	Red	1 mA	90 °	Standard	637 nm	Axial			2.92 mm	Axial Through Hole	Red	Diffused	Round with Domed Top	Axial Flat Leads	1.6 V	645 nm	1.91 mm Dia	2.08 mm	2.21 mm
Broadcom Limited HLMP-EL1A-Z1KDD	16500 mcd	Amber	20 mA	15 °	Standard	590 nm	T-1 3/4	5 mm	T-1 3/4	8.91 mm	Through Hole	Colorless	Clear	Round with Domed Top	Radial	2.1 V	594 nm
Broadcom Limited HLMP-CB1B-XY0DD	9600 mcd	Blue	20 mA	15 °	Standard	470 nm	T-1 3/4	5 mm	T-1 3/4		Through Hole	Colorless	Clear	Round with Domed Top	Radial	3.2 V	464 nm				13.21 mm
Broadcom Limited HLMP-Q700-00011				18 °							Surface Mount				2-SMD Gull Wing	1.64 V						Infrared (IR)	100 mA	45 mW/sr	850 nm	835 nm	870 nm	Top View	85 °C	-40 C
Broadcom Limited HLMP-3601	2.1 mcd	Red	13 mA	60 °	Standard	626 nm	T-1 3/4	5 mm	T-1 3/4		Through Hole	Red	Diffused	Round with Domed Top	Radial	12 V	635 nm														9.19 mm
Broadcom Limited HLMP-Y502-F0000	40 mcd	Green	20 mA	55 °	Standard	573 nm	T-1	3 mm	T-1		Through Hole	Green	Tinted	Round with Domed Top	Radial	2.2 V	565 nm				5.2 mm
Broadcom Limited HLMP-S400	3.5 mcd		20 mA	110 °	Standard	602 nm	Rectangular 2mmx5mm				Through Hole	Orange	Diffused	Rectangle with Flat Top	Radial	1.9 V	600 nm				8 mm											5.06 mm	2.11 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.67
		10	$ 1.06
		100	$ 0.75
		500	$ 0.62
		1000	$ 0.59
		2000	$ 0.55
		5000	$ 0.52
		10000	$ 0.50
	N/A	7545	$ 1.50
Mouser	N/A	1	$ 1.50
		10	$ 1.02
		100	$ 0.73
		500	$ 0.63
		1000	$ 0.59
		2000	$ 0.56
		4000	$ 0.56
		10000	$ 0.53

Description

General part information

HLMP Series

Orange 602nm LED Indication - Discrete 1.9V Radial

Documents

Technical documentation and resources
