Optoelectronics
HLMP-Q156-H0011
ActiveBroadcom Limited

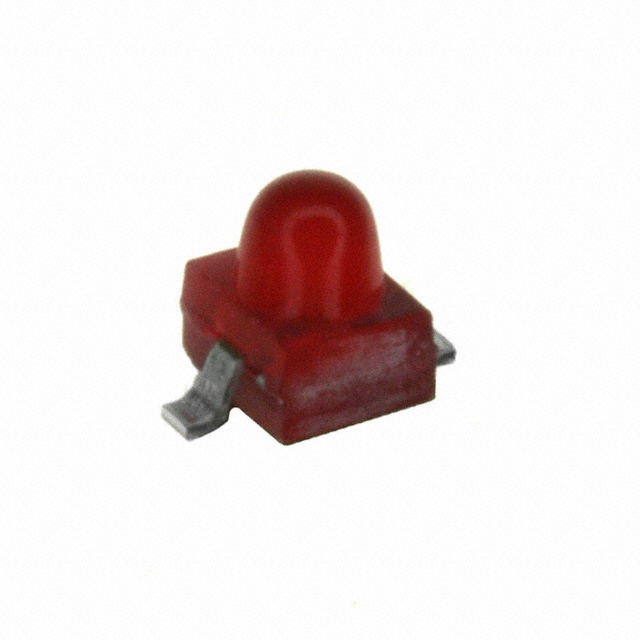

LED RED CLEAR GULL WING SMD
Deep-Dive with AI
Search across all available documentation for this part.
Optoelectronics
HLMP-Q156-H0011
ActiveBroadcom Limited
LED RED CLEAR GULL WING SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HLMP-Q156-H0011 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 0.5 mA |
| Height (Max) [Max] | 2.92 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.78 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 7 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Gull Wing |
| Size / Dimension [x] | 2.09 mm |
| Size / Dimension [y] | 2.21 mm |
| Supplier Device Package | Gull Wing |
| Viewing Angle | 15 ° |
| Voltage - Forward (Vf) (Typ) | 1.6 V |
| Wavelength - Dominant | 644 nm |
| Wavelength - Peak | 654 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.37 | |
| 10 | $ 1.55 | |||
| 100 | $ 1.12 | |||
| 500 | $ 0.96 | |||
| Digi-Reel® | 1 | $ 2.37 | ||
| 10 | $ 1.55 | |||
| 100 | $ 1.12 | |||
| 500 | $ 0.96 | |||
| Tape & Reel (TR) | 1500 | $ 0.88 | ||
| 3000 | $ 0.84 | |||
| 4500 | $ 0.82 | |||
| 7500 | $ 0.80 | |||
| 10500 | $ 0.79 | |||
Description
General part information
HLMP-Q15 Series
Red 644nm LED Indication - Discrete 1.6V 2-SMD, Gull Wing
