Specification	2241C SL021

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.74 mm
Jacket (Insulation) Diameter [diameter]	0.226 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.813 mm
Jacket (Insulation) Thickness	0.032 in
Jacket Color	Slate
Length	304.8 m
Length	1000 ft
Number of Conductors	2
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 ░C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Communication, Control
Voltage	300 VDC
Wire Gauge	18 AWG

2241C Series

Part	Shield Material	Shield Coverage	Number of Conductors	Jacket Color	Conductor Material	Conductor Insulation	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Usage	Voltage	Shield Type	Cable Type	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Wire Gauge
ALPHA WIRE 2241C SL021	Aluminum	100 %	2	Slate	Copper Tinned	Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft	16	30 AWG	80 °C	-20 ░C	Communication Control	300 VDC	Foil	Multi-Conductor	Poly-Vinyl Chloride (PVC)	5.74 mm	0.226 in	0.813 mm	0.032 in	Drain Wire	18 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

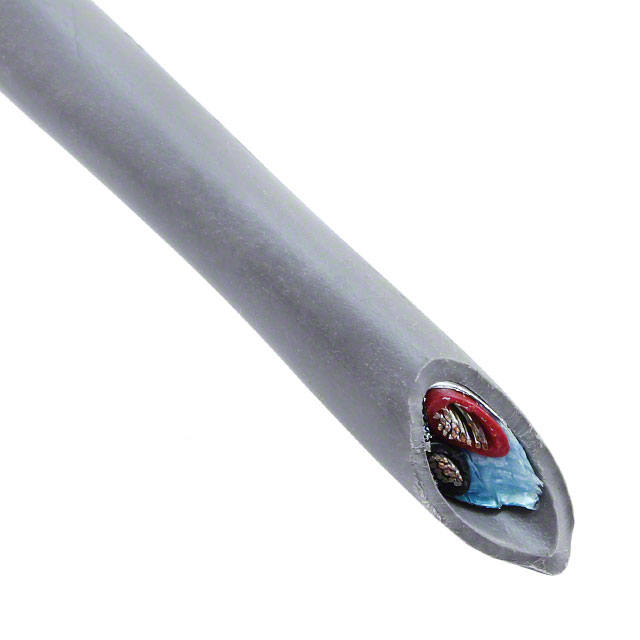

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Slate 18 AWG Foil 1000.0' (304.8m)
