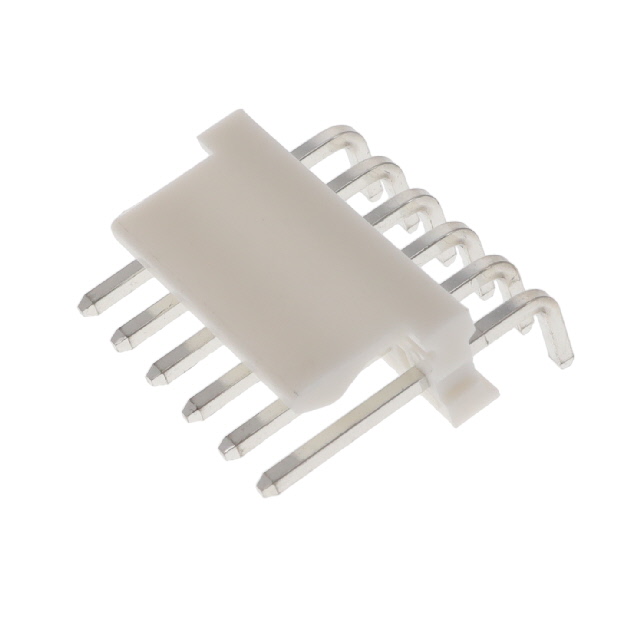

Specification	LHD-06-TRA

Connector Type	Header
Contact Length - Mating	11.4 mm
Contact Length - Mating	0.449 in
Contact Length - Post [x]	0.126 "
Contact Length - Post [x]	3.2 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	7 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height	7.62 mm
Insulation Height	0.3 in
Insulation Material	Glass Filled, Nylon 6/6, Polyamide (PA66)
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 C
Pitch - Mating	3.96 mm
Pitch - Mating	0.156 in
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

LHD-06 Series

Part	Style	Contact Material	Contact Type	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Material Flammability Rating	Insulation Color	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Current Rating (Amps)	Number of Rows	Mounting Type	Insulation Material	Number of Positions	Termination	Insulation Height	Insulation Height	Fastening Type	Shrouding	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height [z]
Adam Tech LHD-06-TRA	Board to Cable/Wire	Brass	Male Pin	11.4 mm	0.449 in	All	0.126 "	3.2 mm	Square	UL94 V-2	White	3.96 mm	0.156 in	85 °C	-40 C	Header	7 A	1	Right Angle Through Hole	Glass Filled Nylon 6/6 Polyamide (PA66)	6	Solder	7.62 mm	0.3 in	Friction Lock	Shrouded - 1 Wall
Adam Tech LHD-06-TRB	Board to Cable/Wire	Brass	Male Pin	11.4 mm	0.449 in	All	0.126 "	3.2 mm	Square	UL94 V-2	White	3.96 mm	0.156 in	85 °C	-40 C	Header	7 A	1	Right Angle Through Hole	Glass Filled Nylon 6/6 Polyamide (PA66)	6	Solder	7.62 mm	0.3 in	Friction Lock	Shrouded - 1 Wall	Tin
Adam Tech LHD-06-TS	Board to Cable/Wire	Brass	Male Pin	11.38 mm	0.448 in	All			Square	UL94 V-2	White	3.96 mm	0.156 in	85 °C	-40 C	Header	7 A	1	Through Hole	Nylon 6/6 Polyamide (PA66)	6	Solder			Friction Lock	Shrouded - 1 Wall	Tin	0.142 in	3.6 mm	18.16 mm	0.715 in	10.8 mm	0.425 in
