PI3105 Series

Part	Outputs and Type	Outputs and Type	Board Type	Supplied Contents	Power - Output	Current - Output	Frequency - Switching	Regulator Topology	Voltage - Output	Contents	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Applications	Current - Output (Max)	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Features	Power (Watts)	Voltage - Output 1	Voltage - Isolation	Mounting Type	Package / Case

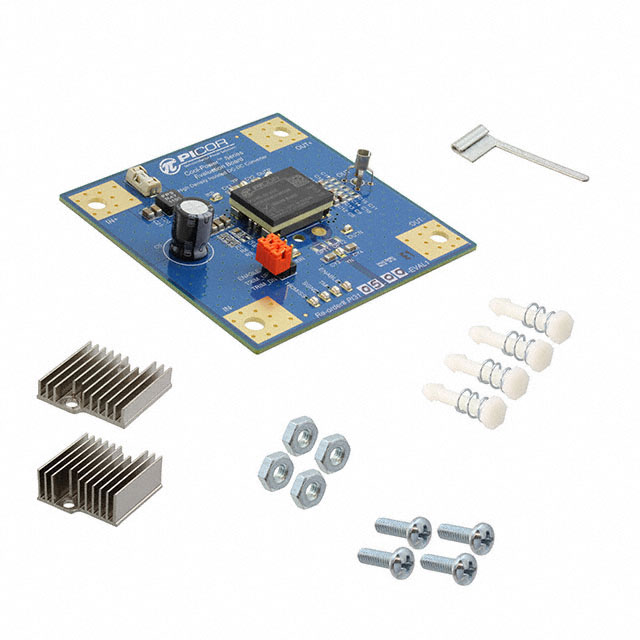

Vicor Corporation PI3105-00-EVAL1	1 Isolated Output Isolated	1	Fully Populated	Board(s)	60 W	5 A	900 kHz	Buck	12 V	Board(s)	DC/DC Step Down	75 V	36 V	PI3105-00
Vicor Corporation PI3105-00-HVIZ															Isolated Module	125 °C	-40 C	88.5 %	ITE (Commercial)	5 A	75 V	36 V	1	0.87 in	0.65 "	22 mm	6.7 mm	0.27 "	16.5 mm	OCP OTP OVP Remote On/Off UVLO	60 W	12 V	2250 VDC	Surface Mount	8-SMD Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 550.18

General part information

PI3105-00 - DC/DC, Step Down 1, Isolated Outputs Evaluation Board
