VSKD91\08P

Obsolete

Vishay General Semiconductor - Diodes Division

DIODE GP 800V 100A ADD-A-PAK

Search across all available documentation for this part.

Discrete Semiconductor Products

Obsolete

Vishay General Semiconductor - Diodes Division

DIODE GP 800V 100A ADD-A-PAK

Technical Specifications

Parameters and characteristics for this part

Specification	VSKD91\08P

Current - Average Rectified (Io)	100 A
Current - Reverse Leakage @ Vr	10 mA
Mounting Type	Chassis Mount
Package / Case	ADD-A-PAK (3 + 4)
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	ADD-A-PAK®
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	800 V

Part	Mounting Type	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Diode Configuration	Speed	Speed	Current - Average Rectified (Io) (per Diode)	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Package / Case	Current - Average Rectified (Io)
Vishay General Semiconductor - Diodes Division VS-VSKD91/14	Chassis Mount	ADD-A-PAK®	150 °C	-40 °C	Standard	1 Pair Common Cathode	Standard Recovery >500ns	200 mA	50 A	1400 V	10 mA	ADD-A-PAK (3)
Vishay General Semiconductor - Diodes Division VS-VSKD91/10	Chassis Mount	ADD-A-PAK®	150 °C	-40 °C	Standard	1 Pair Common Cathode	Standard Recovery >500ns	200 mA	50 A	1000 V	10 mA	ADD-A-PAK (3)
Vishay General Semiconductor - Diodes Division VSKD91\08P	Chassis Mount	ADD-A-PAK®			Standard		Standard Recovery >500ns	200 mA		800 V	10 mA	ADD-A-PAK (3 + 4)	100 A
Vishay General Semiconductor - Diodes Division VS-VSKD91/06	Chassis Mount	ADD-A-PAK®	150 °C	-40 °C	Standard	1 Pair Common Cathode	Standard Recovery >500ns	200 mA	50 A	600 V	10 mA	ADD-A-PAK (3)
Vishay General Semiconductor - Diodes Division VS-VSKD91/04	Chassis Mount	ADD-A-PAK®	150 °C	-40 °C	Standard	1 Pair Common Cathode	Standard Recovery >500ns	200 mA	50 A	400 V	10 mA	ADD-A-PAK (3)

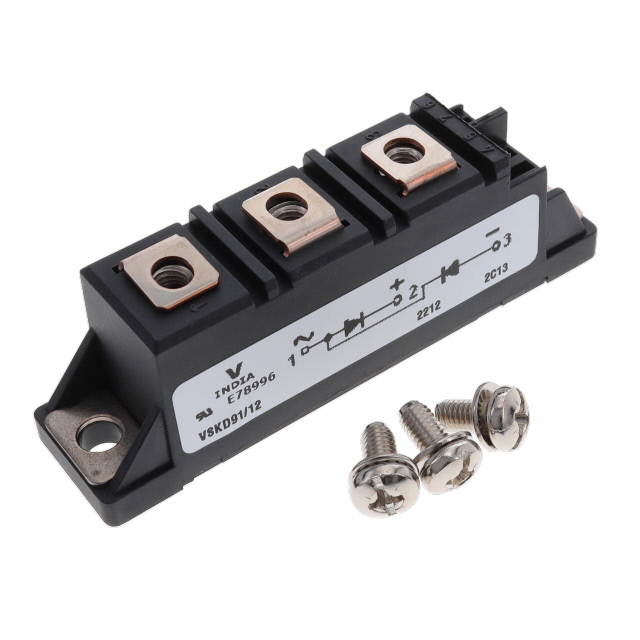

Vishay General Semiconductor - Diodes Division VS-VSKD91/12	Chassis Mount	ADD-A-PAK®	150 °C	-40 °C	Standard	1 Pair Common Cathode	Standard Recovery >500ns	200 mA	50 A	1.2 kV	10 mA	ADD-A-PAK (3)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 800 V 100A Chassis Mount ADD-A-PAK®

Technical documentation and resources

No documents available
