ELSH-J11G3-0LPNM-DG1G3

Active

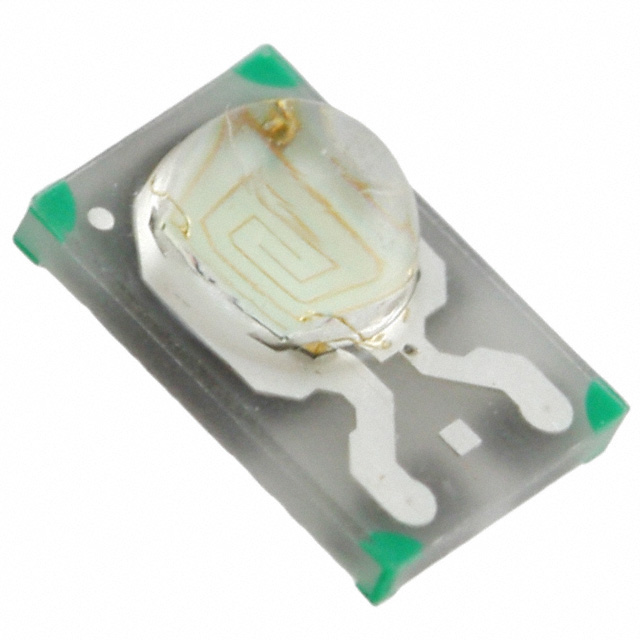

LED SHUEN GREEN 528NM SMD

Search across all available documentation for this part.

Optoelectronics

Active

LED SHUEN GREEN 528NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	ELSH-J11G3-0LPNM-DG1G3

Color	Green
Current - Max [Max]	750 mA
Height - Seated (Max)	2.15 mm
Height - Seated (Max) [Max]	0.085 in
Lumens/Watt @ Current - Test	42 lm/W
Luminous Flux @ Current/Temperature [Max]	110 lm
Luminous Flux @ Current/Temperature [Min]	100 lm
Mounting Type	Surface Mount
Package / Case	1218 (3246 Metric)
Size / Dimension [x]	0.12 inches
Size / Dimension [x]	3.05 mm
Size / Dimension [y]	4.5 mm
Size / Dimension [y]	0.177 "
Supplier Device Package	SMD
Temperature - Test	25 °C
Thermal Resistance of Package	6 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.55 V
Wavelength	528 nm

Part	Thermal Resistance of Package	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Current - Max [Max]	Viewing Angle	Color	Height - Seated (Max) [Max]	Height - Seated (Max)	Wavelength	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Mounting Type	Lumens/Watt @ Current - Test	Temperature - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	CRI (Color Rendering Index)	Flux @ 85°C, Current - Test	Current - Test	CCT (K) [Min]	CCT (K) [Max]	Flux @ 25°C, Current - Test	CCT (K)
Everlight Electronics Co Ltd ELSH-J11G3-0LPNM-DG1G3	6 °C/W	3.55 V	SMD	750 mA	120 °	Green	0.085 in	2.15 mm	528 nm	100 lm	110 lm	Surface Mount	42 lm/W	25 °C	0.12 inches	4.5 mm	3.05 mm	0.177 "	1218 (3246 Metric)
Everlight Electronics Co Ltd ELSH-J11C1-0CPGS-C6500	10 °C/W	3.4 V		400 mA	120 °	Cool White	0.085 in	2.15 mm				Surface Mount	84 lm/W		0.177 in	3.05 mm	4.5 mm	0.12 in	1812 (4532 Metric)	70	87 lm	350 mA	6020 K	7050 K	100 lm 110 lm
Everlight Electronics Co Ltd ELSH-J11C1-0CPGS-C5700	10 °C/W	3.4 V		400 mA	120 °	Cool White	0.085 in	2.15 mm				Surface Mount	84 lm/W		0.177 in	3.05 mm	4.5 mm	0.12 in	1812 (4532 Metric)	70	87 lm	350 mA	5310 K	6020 K	100 lm 110 lm	5700 K
