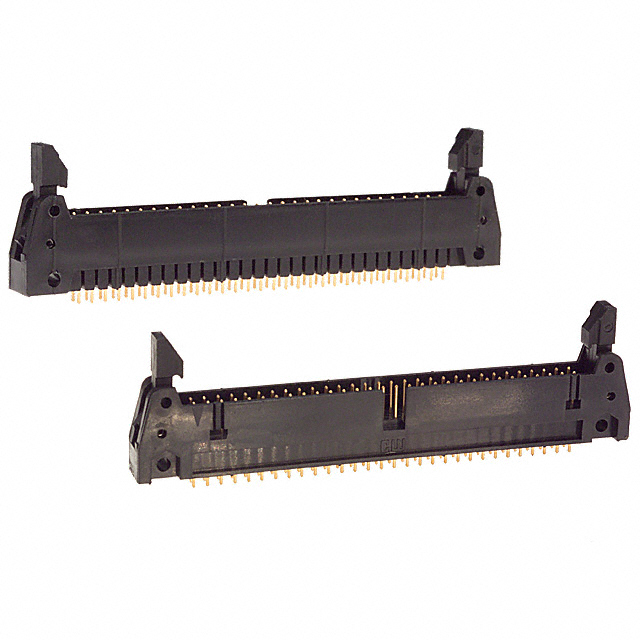

CWN-551-60-0060

Active

CW Industries

CONN HEADER VERT 60POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CWN-551-60-0060

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	0.25 µm
Contact Finish Thickness - Mating	10 µin
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating [x]	0.24 in
Contact Length - Mating [x]	6.1 mm
Contact Length - Post	2.29 mm
Contact Length - Post	0.09 in
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Insulation Height [z]	0.681 in
Insulation Height [z]	17.3 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	60
Number of Positions Loaded	All
Number of Rows [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 C
Pitch - Mating	0.1 "
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	0.1 in
Row Spacing - Mating [x]	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

CWN-551 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Length - Mating [x]	Features	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Shape	Shrouding	Contact Material	Mounting Type	Contact Finish - Post	Style	Termination	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Number of Positions Loaded	Contact Finish - Mating
CW Industries CWN-551-20-0000	1.27 µm	50 µin	Blue	2.29 mm	0.09 in	Latch Lock/Eject Hooks	Male Pin	0.1 in	2.54 mm	0.24 in	6.1 mm	Keying Slot	UL94 V-0	0.25 µm	10 µin	20	Thermoplastic	-55 C	125 °C	Header	Circular	Shrouded - 4 Wall	Phosphor Bronze	Through Hole	Nickel	Board to Cable/Wire	Solder	0.681 in	17.3 mm	0.1 "	2.54 mm	2	All	Gold
CW Industries CWN-551-60-0060	1.27 µm	50 µin	Black	2.29 mm	0.09 in	Latch Lock/Eject Hooks	Male Pin	0.1 in	2.54 mm	0.24 in	6.1 mm	Keying Slot	UL94 V-0	0.25 µm	10 µin	60	Thermoplastic	-55 C	125 °C	Header	Circular	Shrouded - 4 Wall	Phosphor Bronze	Through Hole	Nickel	Board to Cable/Wire	Solder	0.681 in	17.3 mm	0.1 "	2.54 mm	2	All	Gold
CW Industries CWN-551-50-0021	1.27 µm	50 µin	Blue	2.29 mm	0.09 in	Latch Lock/Eject Hooks	Male Pin	0.1 in	2.54 mm	0.24 in	6.1 mm	Keying Slot	UL94 V-0	0.76 Ám	30 Áin	50	Thermoplastic	-55 C	125 °C	Header	Circular	Shrouded - 4 Wall	Phosphor Bronze	Through Hole	Nickel	Board to Cable/Wire	Solder	0.681 in	17.3 mm	0.1 "	2.54 mm	2	All	Gold
