Cable Assemblies
C8RRS-2436M
ActiveCW Industries

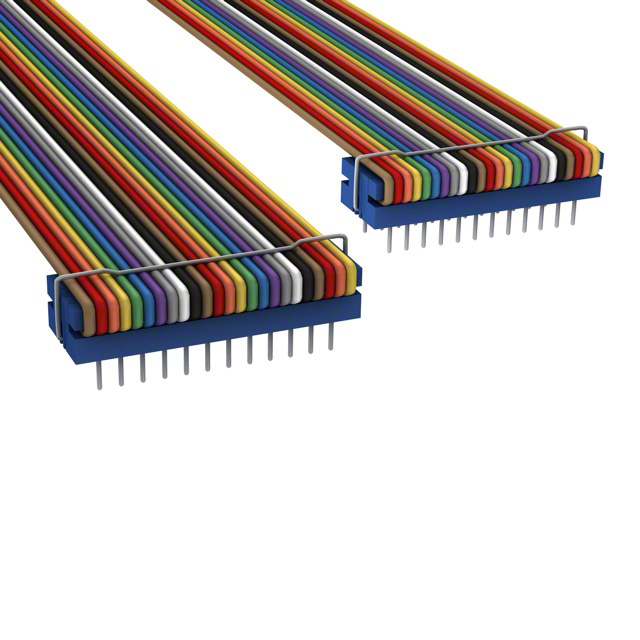

DIP CABLE - CDR24S/AE24M/CDR24S
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | C8RRS-2436M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | DIP to DIP, Reversed |
| Contact Finish | Tin |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Features | Strain Relief |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
| Usage | Board In, Socket (0.6") |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.32 | |
| 10 | $ 10.03 | |||
| 25 | $ 9.64 | |||
| 50 | $ 9.26 | |||
| 100 | $ 8.74 | |||
| 250 | $ 7.97 | |||
| 500 | $ 7.46 | |||
| 1000 | $ 6.84 | |||
Description
General part information
C8RRS-2 Series
24 Position Cable Assembly Rectangular DIP to DIP, Reversed 3.00' (914.40mm)
