Power Supplies - External/Internal (Off-Board)

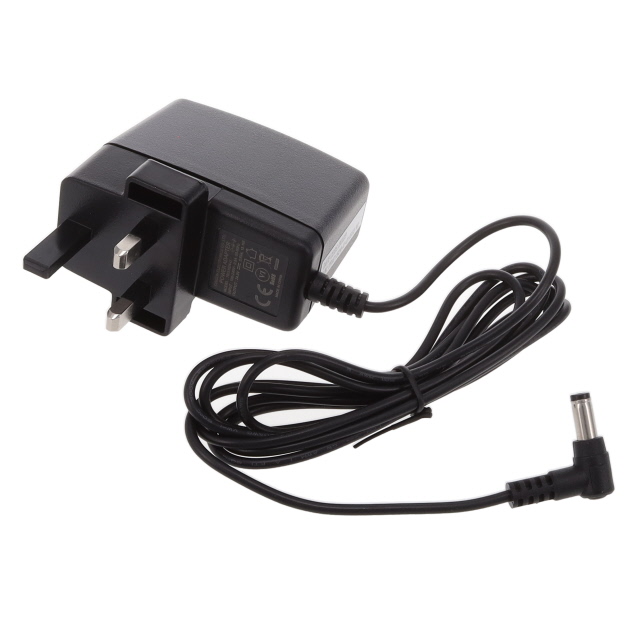

TRG1524-U-01E03 VI
ActiveCincon Electronics Co. LTD
AC/DC WALL MOUNT ADAPTER 24V 15W
Deep-Dive with AI
Search across all available documentation for this part.
Power Supplies - External/Internal (Off-Board)
TRG1524-U-01E03 VI
ActiveCincon Electronics Co. LTD
AC/DC WALL MOUNT ADAPTER 24V 15W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TRG1524-U-01E03 VI |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | PSE, cULus, TUV, GS, FCC, CE |
| Cord Length | 70.9 in |
| Cord Length | 1.8 m |
| Current - Output (Max) [Max] | 630 mA |
| Efficiency | CoC Tier 2, Level VI |
| Form | Wall Mount (Class I) |
| Input Connector | BS 1363 |
| Input Type | Fixed Blade |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Polarization | Positive Center |
| Power (Watts) | 15 W |
| Region Utilized | United Kingdom |
| Size / Dimension [x] | 72 mm |
| Size / Dimension [x] | 2.84 in |
| Size / Dimension [y] | 1.38 " |
| Size / Dimension [y] | 35 mm |
| Size / Dimension [z] | 52 mm |
| Size / Dimension [z] | 2.05 in |
| Standard Number | 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
TRG1524 Series
| Part | Applications | Standard Number | Voltage - Output | Current - Output (Max) [Max] | Region Utilized | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input [Min] | Voltage - Input [Max] | No Load Power Consumption [Max] | Efficiency | Power (Watts) | Cord Length | Cord Length | Input Connector | Polarization | Form | Input Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cincon Electronics Co. LTD | ITE (Commercial) | 60950-1 | 24 V | 630 mA | United Kingdom | CE cULus FCC GS PSE TUV | -20 C | 60 °C | 90 VAC | 264 VAC | 75 mW | CoC Tier 2 Level VI | 15 W | 70.9 in | 1.8 m | BS 1363 | Positive Center | Wall Mount (Class I) | Fixed Blade | 52 mm | 1.38 " | 2.05 in | 72 mm | 35 mm | 2.84 in |
 Cincon Electronics Co. LTD | ITE (Commercial) | 60950-1 | 24 V | 630 mA | Europe | CE cULus FCC GS PSE TUV | -20 C | 60 °C | 90 VAC | 264 VAC | 75 mW | CoC Tier 2 Level VI | 15 W | 70.9 in | 1.8 m | KSC 8305 | Positive Center | Wall Mount (Class II) | Fixed Blade | 52 mm | 1.38 " | 2.05 in | 72 mm | 35 mm | 2.84 in |
 Cincon Electronics Co. LTD | ITE (Commercial) | 60950-1 | 24 V | 630 mA | Australia | CE cULus FCC GS PSE TUV | -20 C | 60 °C | 90 VAC | 264 VAC | 75 mW | CoC Tier 2 Level VI | 15 W | 70.9 in | 1.8 m | AS 3112 | Positive Center | Wall Mount (Class II) | Fixed Blade | 52 mm | 1.38 " | 2.05 in | 72 mm | 35 mm | 2.84 in |

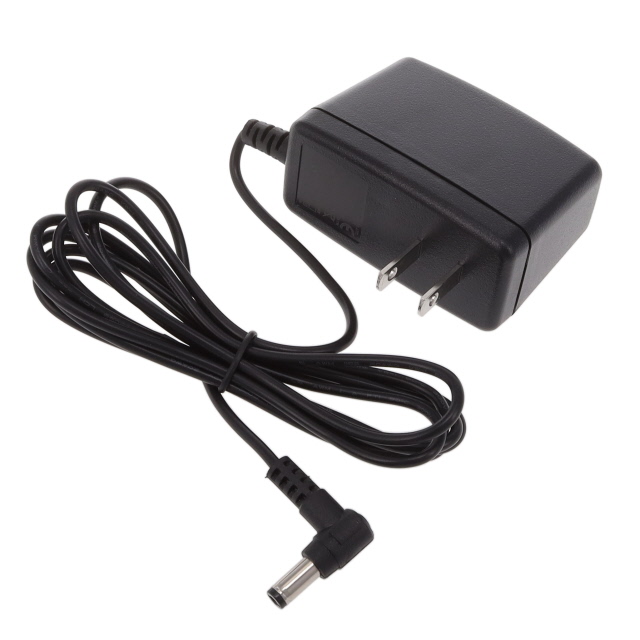

 Cincon Electronics Co. LTD | ITE (Commercial) | 60950-1 | 24 V | 630 mA | North America | CE cULus FCC GS PSE TUV | -20 C | 60 °C | 90 VAC | 264 VAC | 75 mW | CoC Tier 2 Level VI | 15 W | 70.9 in | 1.8 m | NEMA 1-15P | Positive Center | Wall Mount (Class II) | Fixed Blade | 52 mm | 1.38 " | 2.05 in | 72 mm | 35 mm | 2.84 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 11.00 | |
Description
General part information
TRG1524 Series
24V 15 W AC/DC External Wall Mount (Class I) Adapter Fixed Blade Input
