SEM-140-02-03.0-FG-D-A-K-TR

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS MICRO TIGER EYE SOCKET STRIP, 0.80 MM PITCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Connectors, Interconnects

SEM-140-02-03.0-FG-D-A-K-TR

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS MICRO TIGER EYE SOCKET STRIP, 0.80 MM PITCH

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEM-140-02-03.0-FG-D-A-K-TR

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2.6 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	0.177 in
Insulation Height	4.5 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	6 mm, 7 mm, 10 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.031 in
Pitch - Mating	0.8 mm
Row Spacing - Mating	3.18 mm
Row Spacing - Mating	0.125 in
Termination	Solder

SEM-110 Series

Board to Board & Mezzanine Connectors Micro Tiger Eye Socket Strip, 0.80 mm pitch

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish Thickness - Post	Contact Material	Features	Contact Finish - Post	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Type	Number of Positions	Pitch - Mating	Pitch - Mating	Mounting Type	Termination	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Shape	Insulation Material	Current Rating (Amps)	Contact Finish - Mating	Mated Stacking Heights	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Contact Finish Thickness - Mating

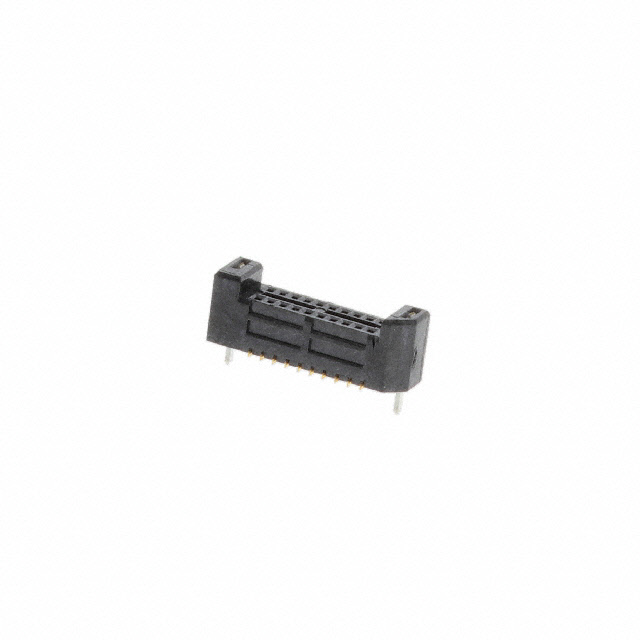

Samtec Inc. SEM-110-02-03.0-H-D-WT-K-TR	-55 °C	125 °C	Receptacle	Flash	Beryllium Copper	Pick and Place Solder Retention	Gold	Push-Pull	30 Áin	0.76 Ám	2	Female Socket	20	0.031 in	0.8 mm	Surface Mount	Solder	0.177 in	4.5 mm	All	Square	Liquid Crystal Polymer (LCP)	2.6 A	Gold	6 mm 7 mm 10 mm	3.18 mm	0.125 in	Black
Samtec Inc. SEM-110-02-03.0-G-D-A	-55 °C	125 °C	Receptacle	Flash	Beryllium Copper	Board Guide	Gold	Push-Pull	10 çin	0.25 çm	2	Female Socket	20	0.031 in	0.8 mm	Surface Mount	Solder	0.177 in	4.5 mm	All	Square	Liquid Crystal Polymer (LCP)	2.6 A	Gold	6 mm 7 mm 10 mm	3.18 mm	0.125 in	Black
Samtec Inc. SEM-110-02-03.0-G-D-K-TR	-55 °C	125 °C	Receptacle	Flash	Beryllium Copper	Pick and Place	Gold	Push-Pull	10 çin	0.25 çm	2	Female Socket	20	0.031 in	0.8 mm	Surface Mount	Solder	0.177 in	4.5 mm	All	Square	Liquid Crystal Polymer (LCP)	2.6 A	Gold	6 mm 7 mm 10 mm	3.18 mm	0.125 in	Black
Samtec Inc. SEM-140-02-03.0-FG-D-A-K-TR	-55 °C	125 °C	Receptacle		Beryllium Copper	Board Guide Pick and Place		Push-Pull			2	Female Socket	80	0.031 in	0.8 mm	Surface Mount	Solder	0.177 in	4.5 mm	All	Square	Liquid Crystal Polymer (LCP)	2.6 A	Gold	6 mm 7 mm 10 mm	3.18 mm	0.125 in	Black	Flash
Samtec Inc. SEM-110-02-03.0-G-D-WT-K	-55 °C	125 °C	Receptacle	Flash	Beryllium Copper	Pick and Place Solder Retention	Gold	Push-Pull	10 çin	0.25 çm	2	Female Socket	20	0.031 in	0.8 mm	Surface Mount	Solder	0.177 in	4.5 mm	All	Square	Liquid Crystal Polymer (LCP)	2.6 A	Gold	6 mm 7 mm 10 mm	3.18 mm	0.125 in	Black
Samtec Inc. SEM-110-02-03.0-H-D-LC-TR	-55 °C	125 °C	Receptacle	Flash	Beryllium Copper		Gold	Push-Pull	30 Áin	0.76 Ám	2	Female Socket	20	0.031 in	0.8 mm	Surface Mount	Solder	0.177 in	4.5 mm	All	Square	Liquid Crystal Polymer (LCP)	2.6 A	Gold	6 mm 7 mm 10 mm	3.18 mm	0.125 in	Black
Samtec Inc. SEM-110-02-03.0-H-D-WT	-55 °C	125 °C	Receptacle	Flash	Beryllium Copper	Solder Retention	Gold	Push-Pull	30 Áin	0.76 Ám	2	Female Socket	20	0.031 in	0.8 mm	Surface Mount	Solder	0.177 in	4.5 mm	All	Square	Liquid Crystal Polymer (LCP)	2.6 A	Gold	6 mm 7 mm 10 mm	3.18 mm	0.125 in	Black
Samtec Inc. SEM-110-02-03.0-H-D-K-TR	-55 °C	125 °C	Receptacle	Flash	Beryllium Copper	Pick and Place	Gold	Push-Pull	30 Áin	0.76 Ám	2	Female Socket	20	0.031 in	0.8 mm	Surface Mount	Solder	0.177 in	4.5 mm	All	Square	Liquid Crystal Polymer (LCP)	2.6 A	Gold	6 mm 7 mm 10 mm	3.18 mm	0.125 in	Black
Samtec Inc. SEM-145-02-03.0-H-D	-55 °C	125 °C	Receptacle	Flash	Beryllium Copper		Gold	Push-Pull	30 Áin	0.76 Ám	2	Female Socket	90	0.031 in	0.8 mm	Surface Mount	Solder	0.177 in	4.5 mm	All	Square	Liquid Crystal Polymer (LCP)	2.6 A	Gold	6 mm 7 mm 10 mm	3.18 mm	0.125 in	Black
Samtec Inc. SEM-150-02-03.0-FG-D-A-K	-55 °C	125 °C	Receptacle		Beryllium Copper	Board Guide Pick and Place		Push-Pull			2	Female Socket	100	0.031 in	0.8 mm	Surface Mount	Solder	0.177 in	4.5 mm	All	Square	Liquid Crystal Polymer (LCP)	2.6 A	Gold	6 mm 7 mm 10 mm	3.18 mm	0.125 in	Black	Flash
