Specification	2219/12C SL002

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.415 "
Jacket (Insulation) Diameter [diameter]	10.54 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.035 in
Jacket (Insulation) Thickness	0.889 mm
Jacket Color	Slate
Length	152.4 m
Length	500 ft
Number of Conductors	24
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 ░C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Communication, Control
Voltage	150 V
Wire Gauge	22 AWG

2219/12C Series

Part	Shield Material	Shield Coverage	Conductor Insulation	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Conductor Material	Cable Type	Number of Conductors	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Features	Usage	Jacket Color	Length [x]	Length [x]
ALPHA WIRE 2219/12C SL002	Aluminum	100 %	Poly-Vinyl Chloride (PVC)	150 V	30 AWG	7	Poly-Vinyl Chloride (PVC)	Copper Tinned	Multi-Pair	24	Foil	0.415 "	10.54 mm	22 AWG	0.035 in	0.889 mm	152.4 m	500 ft	80 °C	-20 ░C	Drain Wire	Communication Control	Slate
ALPHA WIRE 2219/12C SL001	Aluminum	100 %	Poly-Vinyl Chloride (PVC)	150 V	30 AWG	7	Poly-Vinyl Chloride (PVC)	Copper Tinned	Multi-Pair	24	Foil	0.415 "	10.54 mm	22 AWG	0.035 in	0.889 mm	304.8 m	1000 ft	80 °C	-20 ░C	Drain Wire	Communication Control	Slate
ALPHA WIRE 2219/12C SL005	Aluminum	100 %	Poly-Vinyl Chloride (PVC)	150 V	30 AWG	7	Poly-Vinyl Chloride (PVC)	Copper Tinned	Multi-Pair	24	Foil	0.415 "	10.54 mm	22 AWG	0.035 in	0.889 mm			80 °C	-20 ░C	Drain Wire	Communication Control	Slate	100 ft	30.5 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

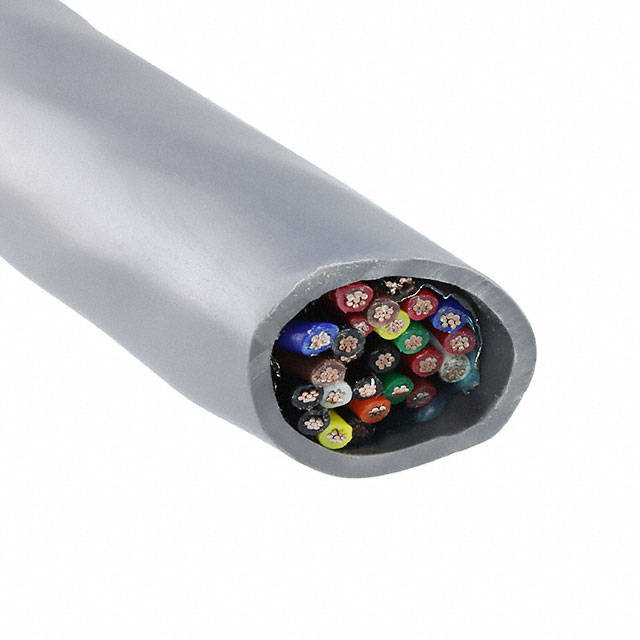

24 (12 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG Foil 500.0' (152.4m)
