Connectors, Interconnects
100669-1
ObsoleteTE Connectivity AMP Connectors

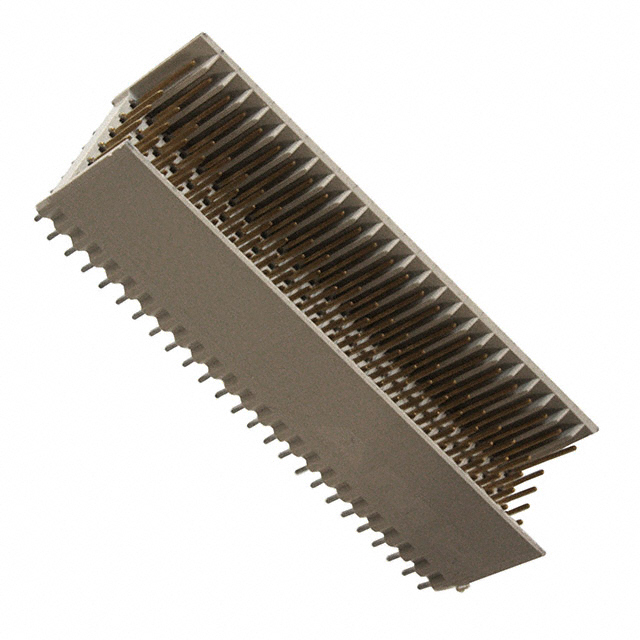

CONN HEADER 175POS 2MM PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
Connectors, Interconnects
100669-1
ObsoleteTE Connectivity AMP Connectors
CONN HEADER 175POS 2MM PRESS-FIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 100669-1 |
|---|---|
| Connector Style | B 25 |
| Connector Type | Header, Male Pins |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 Áin |
| Contact Finish Thickness | 0.76 Ám |
| Current Rating (Amps) | 1.5 A |
| Mounting Type | Through Hole |
| Number of Positions [custom] | 125 |
| Number of Positions [custom] | 50 |
| Number of Positions [custom] | 175 |
| Number of Positions Loaded | All |
| Number of Rows | 5 + 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Press-Fit |
| Voltage Rating | 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | N/A | 0 | $ 5.87 | |
Description
General part information
100669 Series
175 (125 + 50 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
Documents
Technical documentation and resources
No documents available
