Connectors, Interconnects

PJRAN1X1U03AUX

Active

Switchcraft Inc.

CONN RCA JACK MONO 3.2MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Connectors, Interconnects

PJRAN1X1U03AUX

Active

Switchcraft Inc.

CONN RCA JACK MONO 3.2MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PJRAN1X1U03AUX

Actual Diameter [diameter]	8.33 mm, 3.4 mm
Actual Diameter [diameter]	0.134 ", 0.328 "
Body Color	Gold, Red
Body Material	Copper Alloy
Connector Type	Phono (RCA) Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Gold
Current Rating (Amps)	2 A
Gender	Female
Housing Material	Acrylonitrile Butadiene Styrene (ABS)
Industry Recognized Mating Diameter [diameter]	9 mm, 3.2 mm
Insulation Color	Red
Internal Switch(s)	Single Switch
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder

PJRAN1 Series

Part	Current Rating (Amps)	Actual Diameter [diameter]	Actual Diameter [diameter]	Contact Material - Plating	Gender	Termination	Contact Material	Connector Type	Industry Recognized Mating Diameter [diameter]	Housing Material	Internal Switch(s)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Shielding	Signal Lines	Body Material	Insulation Color	Body Color	Number of Positions/Contacts	Contact Material - Plating [custom]

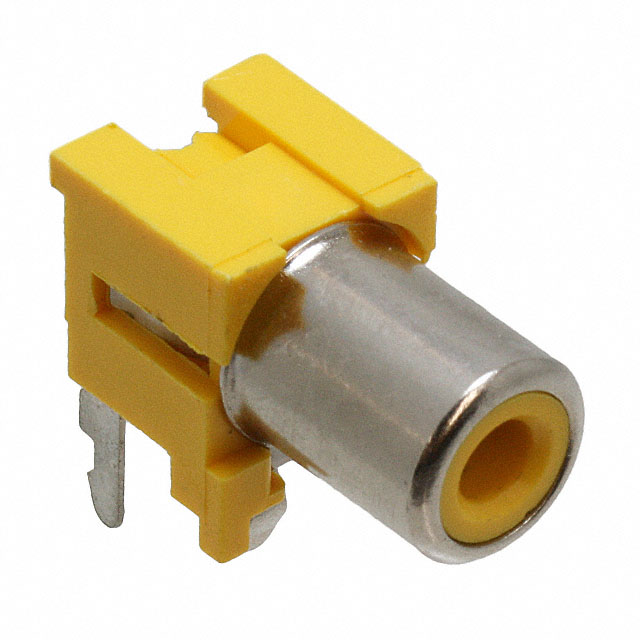

Switchcraft Inc. PJRAN1X1U04X	2 A	3.4 mm 8.33 mm	0.134 " 0.328 "	Tin	Female	Solder	Copper Alloy	Phono (RCA) Jack	3.2 mm 9 mm	Acrylonitrile Butadiene Styrene (ABS)	Single Switch	-25 °C	85 °C	Through Hole Right Angle	Unshielded	Mono	Copper Alloy	Yellow	Silver Yellow	2 Conductors 3 Conductors

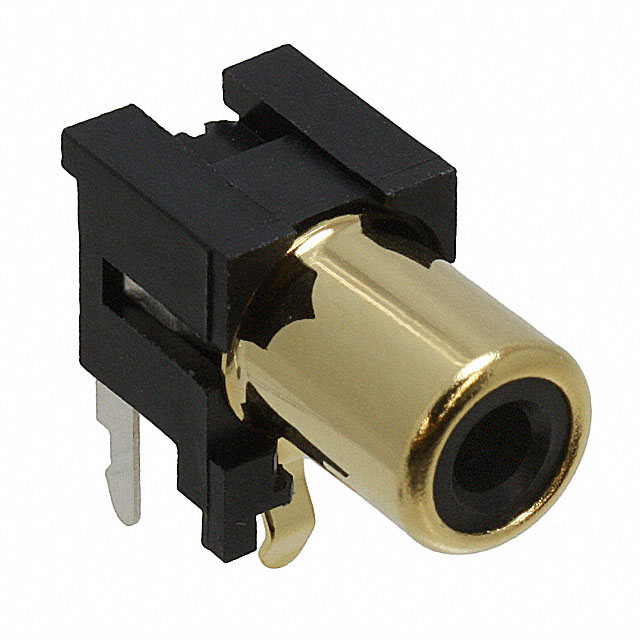

Switchcraft Inc. PJRAN1X1U01AUX	2 A	3.4 mm 8.33 mm	0.134 " 0.328 "		Female	Solder	Copper Alloy	Phono (RCA) Jack	3.2 mm 9 mm	Acrylonitrile Butadiene Styrene (ABS)	Single Switch	-25 °C	85 °C	Through Hole Right Angle	Unshielded	Mono	Copper Alloy	Black	Black Gold	2 Conductors 3 Conductors	Gold

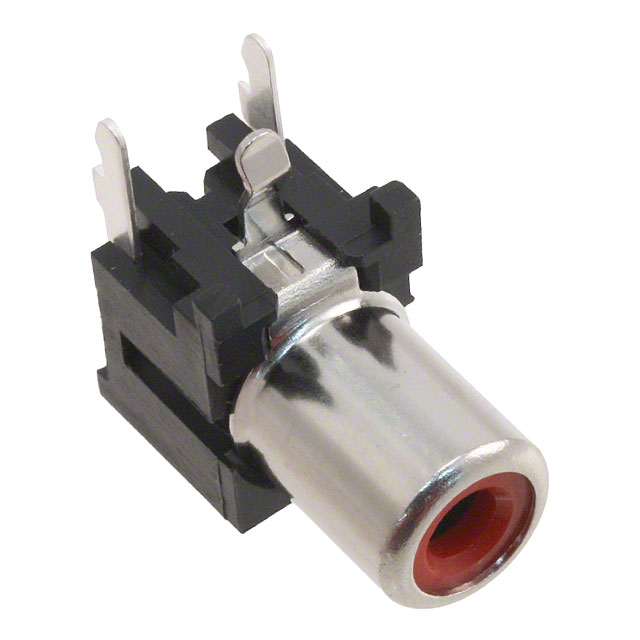

Switchcraft Inc. PJRAN1X1U03X	2 A	3.4 mm 8.33 mm	0.134 " 0.328 "	Tin	Female	Solder	Copper Alloy	Phono (RCA) Jack	3.2 mm 9 mm	Acrylonitrile Butadiene Styrene (ABS)	Single Switch	-25 °C	85 °C	Through Hole Right Angle	Unshielded	Mono	Copper Alloy	Red	Red Silver	2 Conductors 3 Conductors

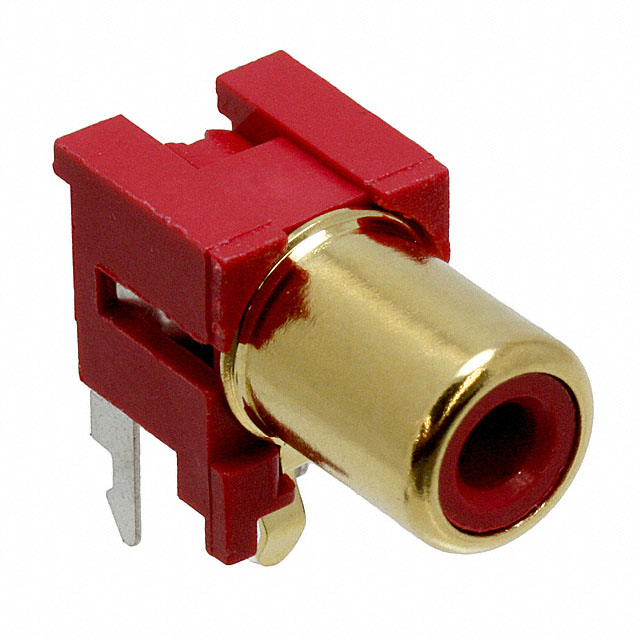

Switchcraft Inc. PJRAN1X1U03AUX	2 A	3.4 mm 8.33 mm	0.134 " 0.328 "		Female	Solder	Copper Alloy	Phono (RCA) Jack	3.2 mm 9 mm	Acrylonitrile Butadiene Styrene (ABS)	Single Switch	-25 °C	85 °C	Through Hole Right Angle	Unshielded	Mono	Copper Alloy	Red	Gold Red	2 Conductors 3 Conductors	Gold

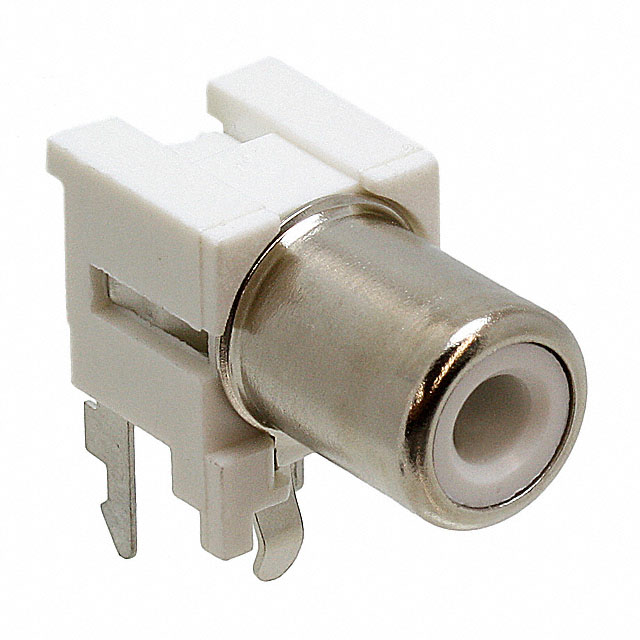

Switchcraft Inc. PJRAN1X1U02X	2 A	3.4 mm 8.33 mm	0.134 " 0.328 "	Tin	Female	Solder	Copper Alloy	Phono (RCA) Jack	3.2 mm 9 mm	Acrylonitrile Butadiene Styrene (ABS)	Single Switch	-25 °C	85 °C	Through Hole Right Angle	Unshielded	Mono	Copper Alloy	White	Silver White	2 Conductors 3 Conductors

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PJRAN1 Series

3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder

Documents

Technical documentation and resources
