Technical Specifications
Parameters and characteristics for this part
| Specification | 09330240502 |
|---|---|
| Connector Type | Hood |
| Housing Color | Black |
| Housing Material | Glass Filled, Polyamide (PA), Nylon |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 C |
| Size | 24 B |
| Size / Dimension [x] | 4.764 " |
| Size / Dimension [x] | 121 mm |
| Size / Dimension [y] | 2.244 " |
| Size / Dimension [y] | 57 mm |
| Size / Dimension [z] | 111 mm |
| Size / Dimension [z] | 4.37 " |
| Style | Side Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 49.21 | |
| 10 | $ 36.91 | |||
| 25 | $ 35.12 | |||
| N/A | 7 | $ 57.45 | ||
Description
General part information
09330240 Series

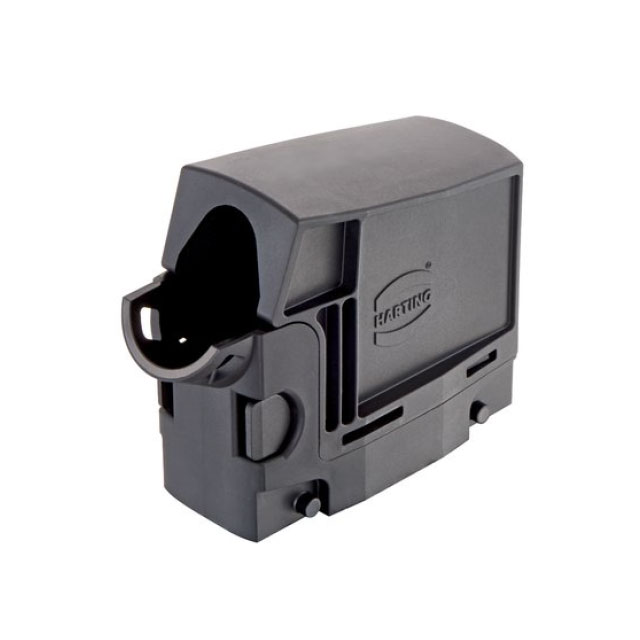

Hood Connector Side Entry 24B
