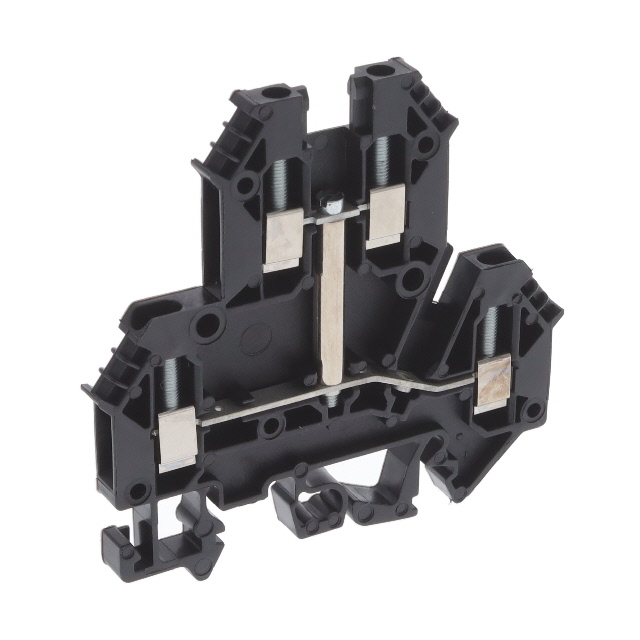

XW5T-S2.5-1.1-2V

Active

TRMBLK SCRW2.5MM 1:1 2TIERBLCK

Search across all available documentation for this part.

Connectors, Interconnects

Active

TRMBLK SCRW2.5MM 1:1 2TIERBLCK

Technical Specifications

Parameters and characteristics for this part

Specification	XW5T-S2.5-1.1-2V

Color	Black
Current - IEC	24 A
Current - UL	20 A
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Levels	2
Number of Levels	Connected
Number of Positions	4
Stripping Length	8 mm
Terminal - Width [y]	5 mm
Termination Style	Screw
Type	Feed Through
Voltage - IEC	500 V
Voltage - UL	600 V
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm˛ [Max]	4 mm˛
Wire Gauge or Range - mm˛ [Min]	0.2 mm˛
Wire Gauge or Range - mm² [Max]	4 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²

Part	Material - Insulation	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Stripping Length	Material Flammability Rating	Voltage - IEC	Current - UL	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Current - IEC	Type	Number of Levels	Number of Levels	Number of Positions	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Voltage - UL	Termination Style	Terminal - Width [y]	Color
Omron Automation and Safety XW5T-S2.5-1.1-2V	Nylon Polyamide (PA)	4 mm˛	0.2 mm˛	8 mm	UL94 V-0	500 V	20 A	4 mm²	0.2 mm²	24 A	Feed Through	2	Connected	4	22 AWG	12 AWG	600 V	Screw	5 mm	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 4 Position Feed Through Black 12-22 AWG
