2SC4102U3T106S

Active

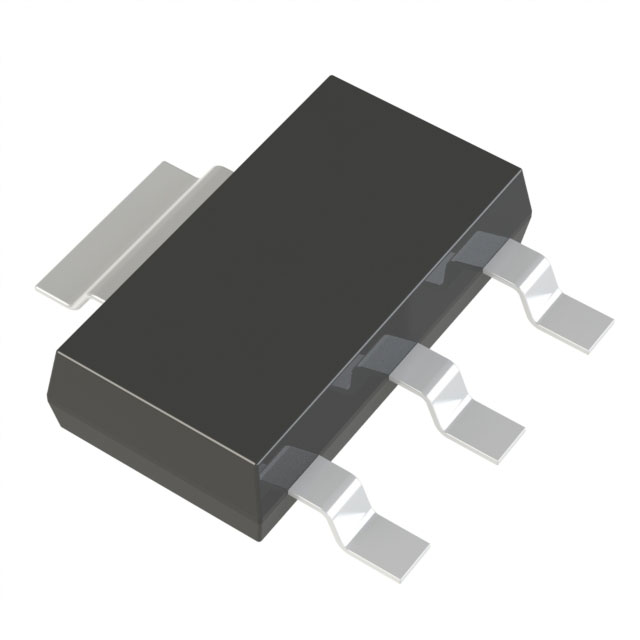

TRANS PNP 60V 0.05A SOT-223-3

Search across all available documentation for this part.

Discrete Semiconductor Products

Active

TRANS PNP 60V 0.05A SOT-223-3

Technical Specifications

Parameters and characteristics for this part

Specification	2SC4102U3T106S

Current - Collector (Ic) (Max) [Max]	50 mA
Current - Collector Cutoff (Max) [Max]	100 nA, 500 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	150, 270
Frequency - Transition	100 MHz, 140 MHz
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature	150 °C
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-261AA, TO-261-4, SOT-323, SC-70
Power - Max [Max]	1.2 W, 200 mW
Qualification	AEC-Q101
Supplier Device Package	SOT-223-3, UMT3
Transistor Type	PNP, NPN
Vce Saturation (Max) @ Ib, Ic	300 mV, 500 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	60 V, 120 V

Part	Grade	Power - Max [Max]	Vce Saturation (Max) @ Ib, Ic	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Package / Case	Current - Collector Cutoff (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Transistor Type	Qualification	Voltage - Collector Emitter Breakdown (Max) [Max]	Frequency - Transition	Current - Collector (Ic) (Max) [Max]	Mounting Type	Operating Temperature
Rohm Semiconductor 2SC4102U3T106S	Automotive	1.2 W 200 mW	300 mV 500 mV	SOT-223-3 UMT3	150 270	SC-70 SOT-323 TO-261-4 TO-261AA	100 nA 500 nA	150 °C	-55 °C	NPN PNP	AEC-Q101	60 V 120 V	100 MHz 140 MHz	50 mA	Surface Mount	150 °C
Rohm Semiconductor 2SC4102U3T106R		200 mW	500 mV	UMT3	180 390	SC-70 SOT-323	500 nA			NPN PNP		120 V	140 MHz	50 mA	Surface Mount	150 °C
Rohm Semiconductor 2SC4102T106R		200 mW		UMT3	180	SC-70 SOT-323	500 nA			NPN		120 V	140 MHz	50 mA	Surface Mount	150 °C
Rohm Semiconductor 2SC4102U3HZGT106S	Automotive	200 mW		UMT3	270	SC-70 SOT-323	500 nA			NPN	AEC-Q101	120 V	140 MHz	50 mA	Surface Mount	150 °C
Rohm Semiconductor 2SC4102U3HZGT106R	Automotive	200 mW		UMT3	180	SC-70 SOT-323	500 nA			NPN	AEC-Q101	120 V	140 MHz	50 mA	Surface Mount	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor PNP 60 V 50 mA 100MHz 1.2 W Surface Mount SOT-223-3
