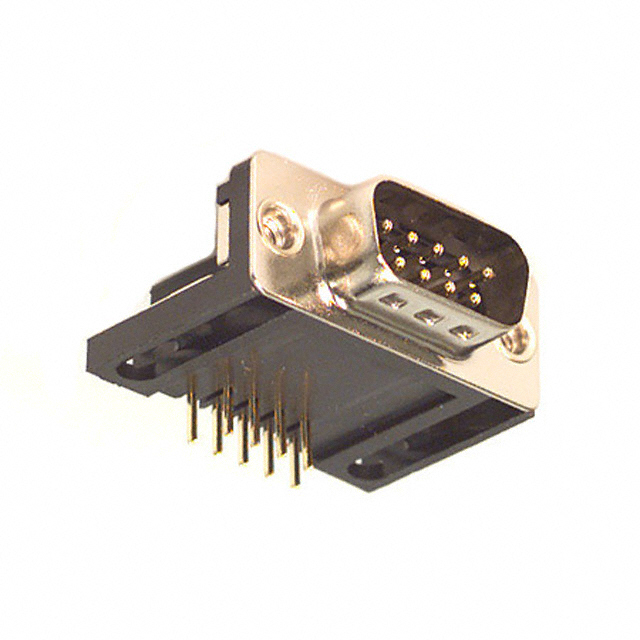

183-009-112-171,183-009-113R171
Connectors, Interconnects

183-009-113R171

Active
NorComp Inc.

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference GuideDatasheet+1
183-009-112-171,183-009-113R171
Connectors, Interconnects

183-009-113R171

Active
NorComp Inc.

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

DocumentsBackshell Reference GuideDatasheet+1

Technical Specifications

Parameters and characteristics for this part

Specification183-009-113R171
Backset Spacing0.59 in
Backset Spacing14.99 mm
ColorBlack
Connector StyleD-Sub
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA9T), Nylon 9T
FeaturesGround Strap, Grounding Indents
Flange FeatureHousing/Shell
Flange Feature4-40
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Panel Mount, Right Angle
Number of Positions9
Number of Rows [custom]2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 C
Shell Material, FinishSteel, Nickel Plated
Shell Size, Connector Layout [custom]1
Shell Size, Connector Layout [custom]DE, E
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyN/A 12$ 4.55
Tray 1$ 5.55
10$ 4.25
25$ 3.83
40$ 3.63
80$ 3.37
230$ 3.01
440$ 2.82
945$ 2.61
2400$ 2.39
NewarkEach 500$ 3.39
1000$ 3.19

Description

General part information

183-009 Series

9 Position D-Sub Plug, Male Pins Connector
