Sensors, Transducers

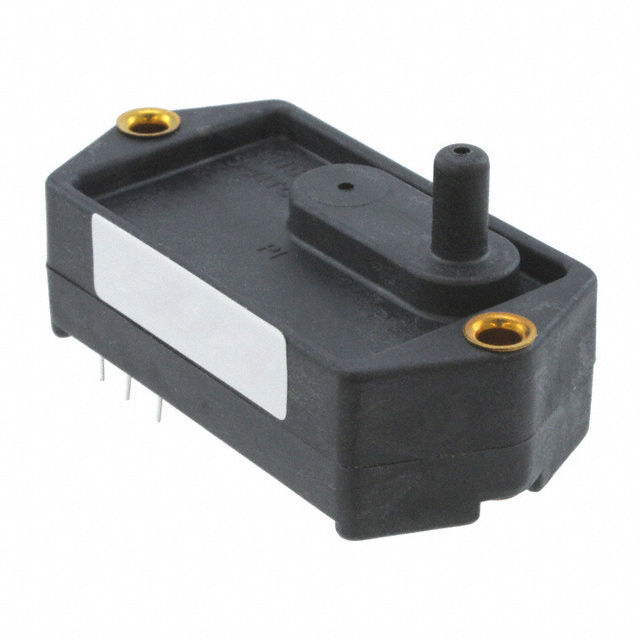

142PC05G

Active

Honeywell Sensing and Productivity Solutions

SENSOR 5PSIG 0.2" 6V

Search across all available documentation for this part.

Sensors, Transducers

Active

Honeywell Sensing and Productivity Solutions

SENSOR 5PSIG 0.2" 6V

Technical Specifications

Parameters and characteristics for this part

Specification	142PC05G

Accuracy	1.5 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	20 PSI
Maximum Pressure	137.9 kPa
Mounting Type	Through Hole
Operating Pressure	34.47 kPa
Operating Pressure	5 PSI
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output [Max]	6 V
Output [Min]	1 V
Output Type	Analog Voltage
Package / Case	3-SIP Module
Port Size	5 mm, 0.2 "
Port Style	Barbless
Pressure Type	Vented Gauge
Termination Style	PC Pin
Voltage - Supply [Max]	16 V
Voltage - Supply [Min]	7 V

Part	Applications	Output [Min]	Output [Max]	Pressure Type	Maximum Pressure	Maximum Pressure	Operating Pressure	Operating Pressure	Features	Package / Case	Accuracy	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Output Type	Termination Style	Port Size	Port Size	Port Size	Voltage - Supply [Min]	Voltage - Supply [Max]
Honeywell Sensing and Productivity Solutions 142PC05DW79	Board Mount	1 V	6 V	Differential	20 PSI	137.9 kPa	34.47 kPa	5 PSI	Amplified Output Temperature Compensated	3-SIP Module	1.5 %	Through Hole	85 °C	-40 °C	Barbless	Analog Voltage	PC Pin	Dual Male Tube	5 mm	0.2 "	7 V	16 V
Honeywell Sensing and Productivity Solutions 142PC05G	Board Mount	1 V	6 V	Vented Gauge	20 PSI	137.9 kPa	34.47 kPa	5 PSI	Amplified Output Temperature Compensated	3-SIP Module	1.5 %	Through Hole	85 °C	-40 °C	Barbless	Analog Voltage	PC Pin		0.2 " 5 mm		7 V	16 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 1103.52

General part information

Pressure Sensor 5PSI (34.47kPa) Vented Gauge Male - 0.2" (5mm) Tube 1 V ~ 6 V 3-SIP Module
