Technical Specifications
Parameters and characteristics for this part

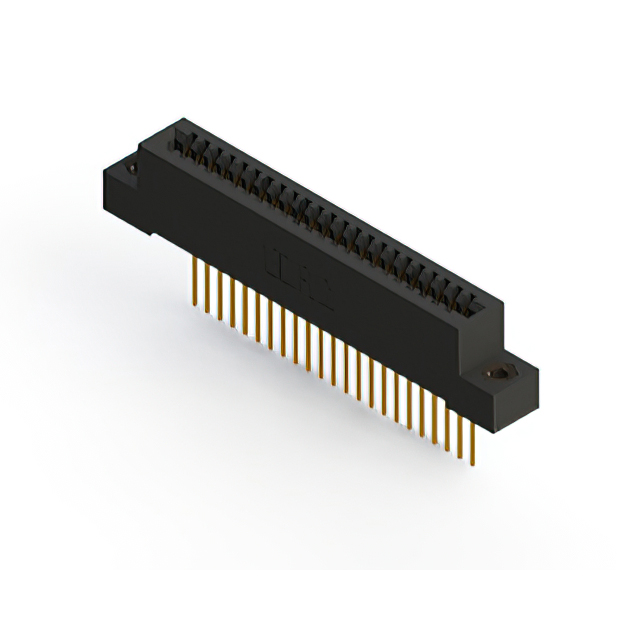

| Specification | 892-023-541-107 |
|---|---|
| Card Thickness [Max] | 0.07 in, 1.78 mm |
| Card Thickness [Min] | 1.37 mm, 0.054 in |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.25 Ám |
| Contact Finish Thickness | 10 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Threaded Insert, M3, Top Opening, Flush Mount |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 23 |
| Number of Positions/Bay/Row | 23 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 C |
| Pitch | 0.1 " |
| Pitch | 2.54 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
...

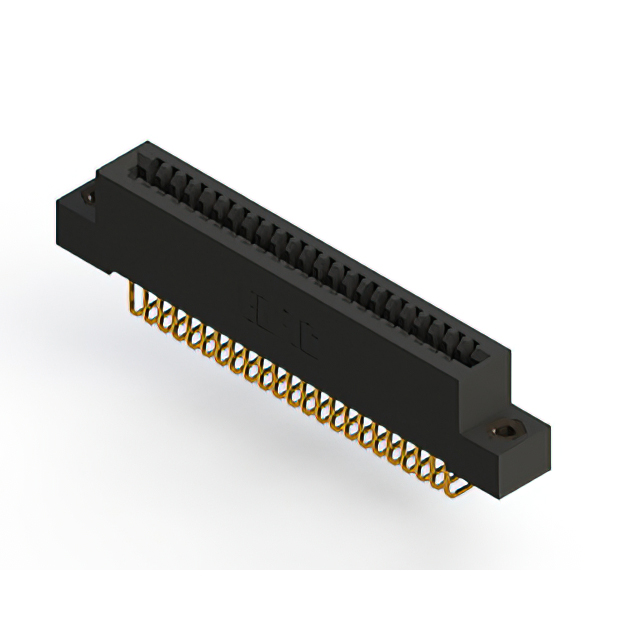

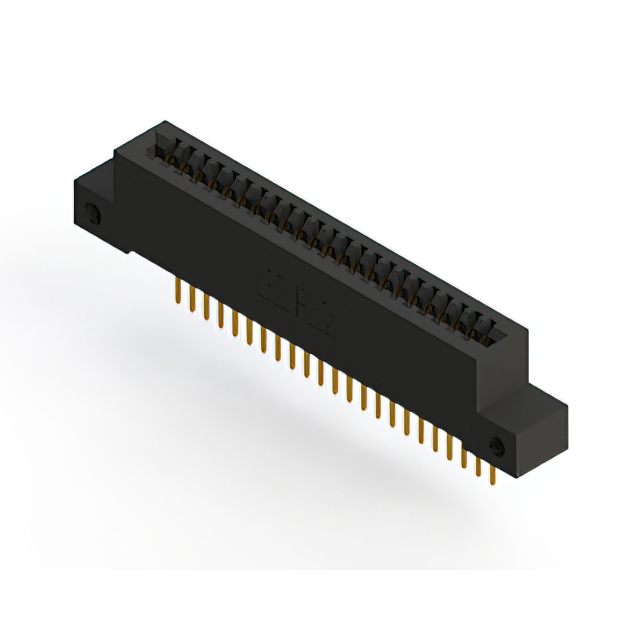

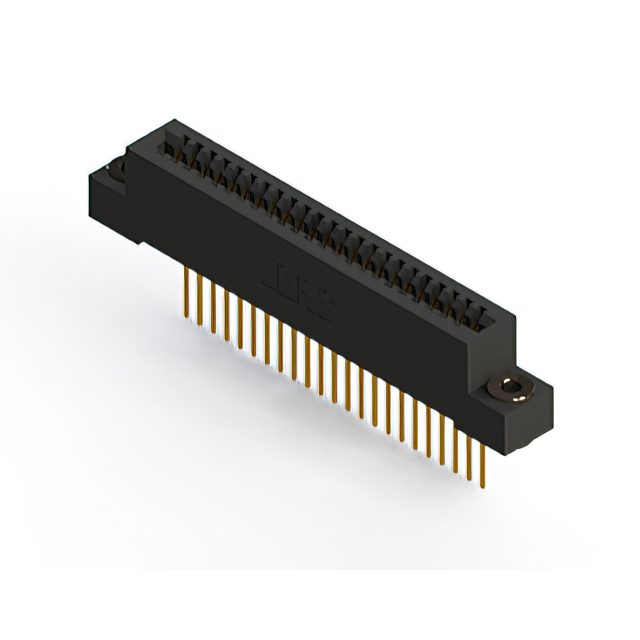

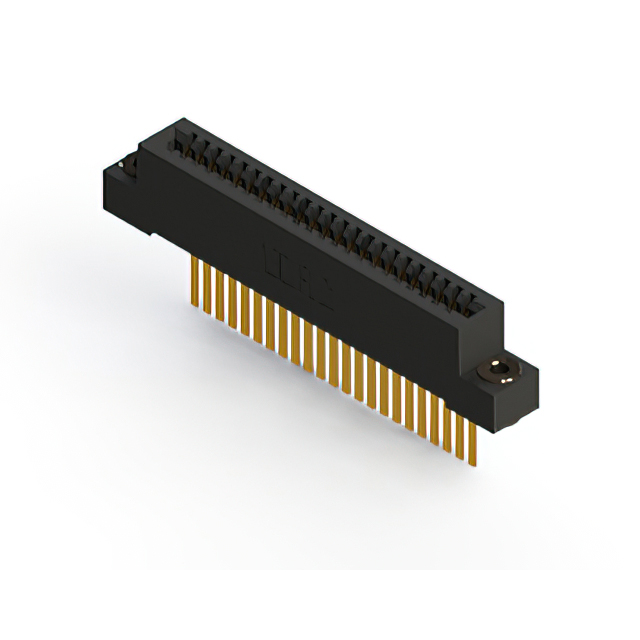

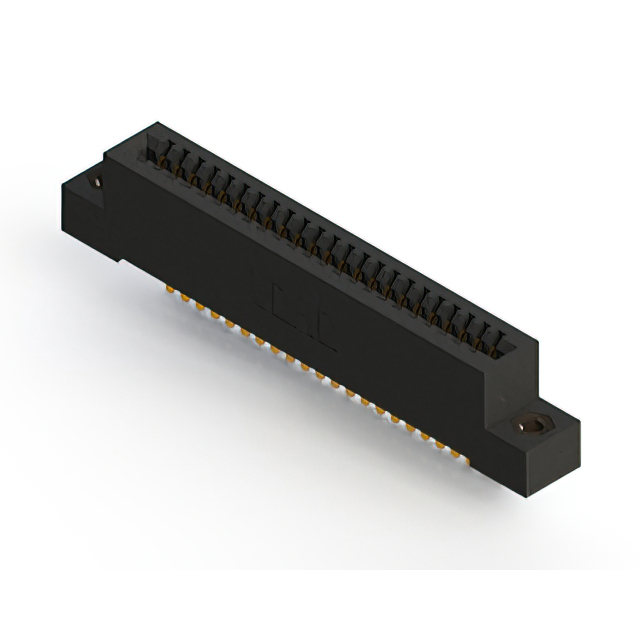

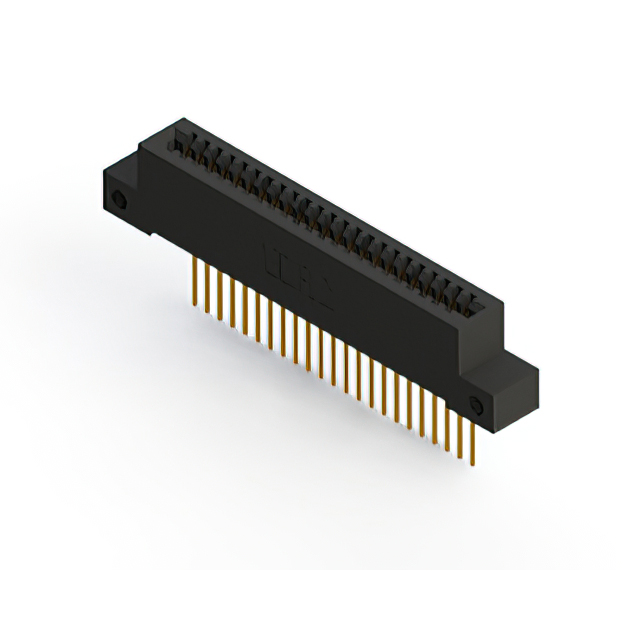

| Part | Material - Insulation | Termination Rows | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Termination | Pitch | Pitch | Read Out | Number of Positions/Bay/Row | Card Thickness [Max] | Card Thickness [Min] | Color | Contact Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Mounting Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Gender | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 23 | 125 °C | -40 C | 1 | Wire Wrap | 0.1 " | 2.54 mm | Single | 23 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Cantilever | Gold | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Female | Non Specified - Single Edge |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 23 | 125 °C | -40 C | 1 | Solder | 0.1 " | 2.54 mm | Single | 23 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Cantilever | Gold | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Female | Non Specified - Single Edge |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 23 | 125 °C | -40 C | 1 | Wire Wrap | 0.1 " | 2.54 mm | Single | 23 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Cantilever | Gold | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Female | Non Specified - Single Edge | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 23 | 125 °C | -40 C | 1 | Solder | 0.1 " | 2.54 mm | Single | 23 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Cantilever | Gold | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Female | Non Specified - Single Edge | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 23 | 125 °C | -40 C | 1 | Solder | 0.1 " | 2.54 mm | Single | 23 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Cantilever | Gold | 0.25 Ám | 10 Áin | Copper Alloy | Right Angle Through Hole | Flush Mount M3 Threaded Insert Top Opening | Female | Non Specified - Single Edge | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 23 | 125 °C | -40 C | 1 | Solder | 0.1 " | 2.54 mm | Single | 23 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Cantilever | Gold | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Female | Non Specified - Single Edge |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 23 | 125 °C | -40 C | 1 | Solder | 0.1 " | 2.54 mm | Single | 23 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Cantilever | Gold | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Female | Non Specified - Single Edge | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 23 | 125 °C | -40 C | 1 | Solder | 0.1 " | 2.54 mm | Single | 23 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Cantilever | Gold | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Female | Non Specified - Single Edge | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 23 | 125 °C | -40 C | 1 | Solder Eyelet(s) | 0.1 " | 2.54 mm | Single | 23 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Cantilever | Gold | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Female | Non Specified - Single Edge | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | 23 | 125 °C | -40 C | 1 | Wire Wrap | 0.1 " | 2.54 mm | Single | 23 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Cantilever | Gold | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Female | Non Specified - Single Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
892-023 Series
23 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
