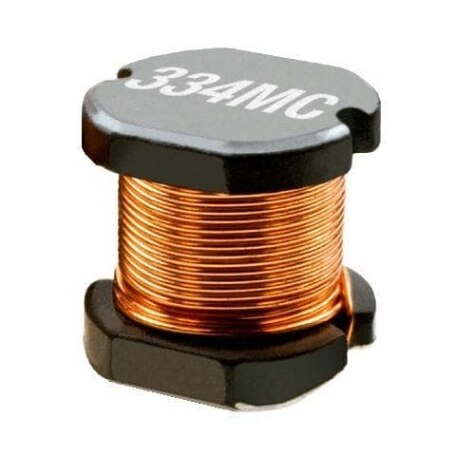

POWER INDUCTOR (SMD), BOBBIN WOUND, 1.5 MH, 160 MA, UNSHIELDED, 2200RM SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN

Inductors, Coils, Chokes

22R155MC

Active

Murata Power Solutions Inc.

POWER INDUCTOR (SMD), BOBBIN WOUND, 1.5 MH, 160 MA, UNSHIELDED, 2200RM SERIES

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	22R155MC

Current Rating (Amps)	160 mA
DC Resistance (DCR) [Max]	6.49 Ohm
Height - Seated (Max) [Max] [z]	0.311 in
Height - Seated (Max) [Max] [z]	7.9 mm
Inductance	1.5 mH
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Shielding	Unshielded
Size / Dimension [x]	0.307 in
Size / Dimension [x]	7.8 mm
Size / Dimension [y]	0.276 in
Size / Dimension [y]	7 mm
Tolerance	10 %
Type	Wirewound

2200RM Series

Power Inductors - Leaded 1.5K UH 10%

Part	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Inductance	Type	Package / Case	DC Resistance (DCR) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Q @ Freq	Frequency - Self Resonant	DC Resistance (DCR)
Murata Power Solutions Inc. 22R105MC	85 °C	-40 °C	10 %	1 mH	Wirewound	Nonstandard	3.63 Ohm	0.276 in	0.307 in	7 mm	7.8 mm	0.21 A	0.311 in	7.9 mm	Unshielded	Surface Mount
Murata Power Solutions Inc. 22R226MC	85 °C	-40 °C	10 %	22 mH	Wirewound	Nonstandard	82.5 Ohm	0.276 in	0.307 in	7 mm	7.8 mm	0.044 A	0.311 in	7.9 mm	Unshielded	Surface Mount
Murata Power Solutions Inc. 22R475MC	85 °C	-40 °C	10 %	4.7 mH	Wirewound	Nonstandard	13.2 Ohm	0.276 in	0.307 in	7 mm	7.8 mm	100 mA	0.311 in	7.9 mm	Unshielded	Surface Mount
Murata Power Solutions Inc. 22R106C	70 °C	-25 °C	10 %	10 mH	Wirewound	Radial Vertical Cylinder	37.4 Ohm					63 mA			Unshielded	Through Hole	0.413 in	10.5 mm	150 kHz 155	620 kHz
Murata Power Solutions Inc. 22R473MC	85 °C	-40 °C	10 %	47 µH	Wirewound	Nonstandard		0.276 in	0.307 in	7 mm	7.8 mm	990 mA	0.311 in	7.9 mm	Unshielded	Surface Mount					220 mOhm
Murata Power Solutions Inc. 22R103C	70 °C	-25 °C	10 %	10 µH	Wirewound	Radial Vertical Cylinder						1.62 A			Unshielded	Through Hole	0.413 in	10.5 mm	1 MHz 65	21.2 MHz	50 mOhm
Murata Power Solutions Inc. 22R155MC	85 °C	-40 °C	10 %	1.5 mH	Wirewound	Nonstandard	6.49 Ohm	0.276 in	0.307 in	7 mm	7.8 mm	160 mA	0.311 in	7.9 mm	Unshielded	Surface Mount
Murata Power Solutions Inc. 22R156C	70 °C	-25 °C	10 %	15 mH	Wirewound	Radial Vertical Cylinder	51.7 Ohm					0.054 A			Unshielded	Through Hole	0.413 in	10.5 mm		510 kHz
Murata Power Solutions Inc. 22R686MC	85 °C	-40 °C	10 %	68 mH	Wirewound	Nonstandard	242 Ohm	0.276 in	0.307 in	7 mm	7.8 mm	26 mA	0.311 in	7.9 mm	Unshielded	Surface Mount
