Integrated Circuits (ICs)

5P49V6975A000LTGI8

Active

IC CLOCK GENERATOR 24LGA

Search across all available documentation for this part.

Integrated Circuits (ICs)

Active

IC CLOCK GENERATOR 24LGA

Technical Specifications

Parameters and characteristics for this part

Specification	5P49V6975A000LTGI8

Differential - Input:Output	True
Divider/Multiplier	Yes/No
Frequency - Max [Max]	350 MHz
Input	HCSL, LVPECL, LVDS, Crystal, LVCMOS
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 C
Operating Temperature [Min]	-40 ¯C
Output	LVPECL, HCSL, LVDS, LVCMOS

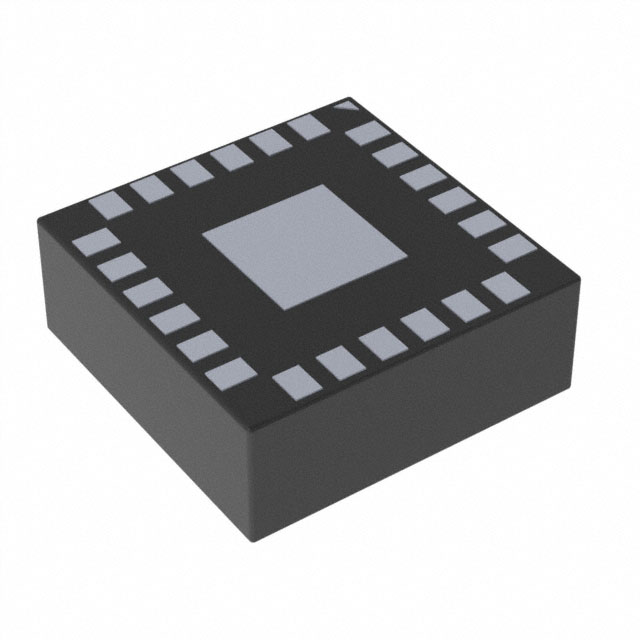

Package / Case	24-LFLGA Exposed Pad
PLL	True
Ratio - Input:Output	1:4
Supplier Device Package	24-LGA (4x4)
Type	Clock Generator
Voltage - Supply [Max]	2.625 V, 3.465 V, 1.89 V
Voltage - Supply [Min]	1.71 V, 2.375 V, 3.135 V

Part	Frequency - Max [Max]	PLL	Ratio - Input:Output	Package / Case	Number of Circuits	Output	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Divider/Multiplier	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Supplier Device Package	Differential - Input:Output	Input
Renesas Electronics Corporation 5P49V6975A000LTGI8	350 MHz		1:4	24-LFLGA Exposed Pad	1	HCSL LVCMOS LVDS LVPECL	Surface Mount	85 C	-40 ¯C	Yes/No	1.71 V 2.375 V 3.135 V	1.89 V 2.625 V 3.465 V	Clock Generator	24-LGA (4x4)		Crystal HCSL LVCMOS LVDS LVPECL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Clock Generator IC 350MHz 1 24-LFLGA Exposed Pad
