Sensors, Transducers

62S30-M0-PH

Active

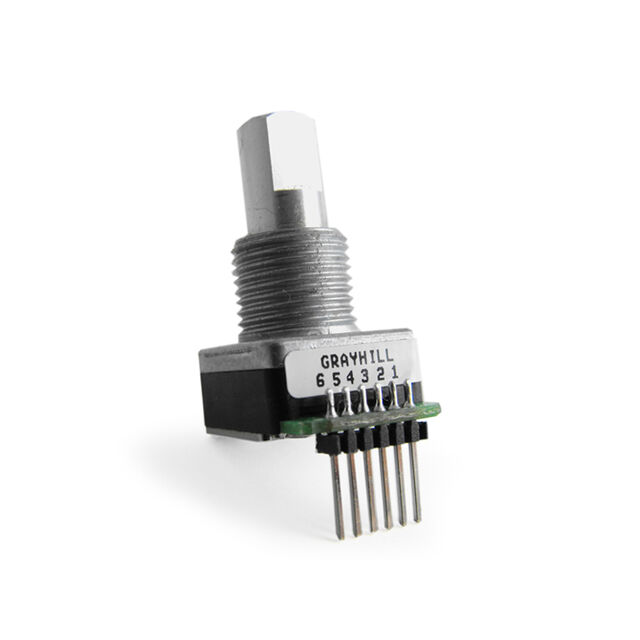

ROTARY ENCODER OPTICAL 12PPR

Search across all available documentation for this part.

Sensors, Transducers

Active

ROTARY ENCODER OPTICAL 12PPR

Technical Specifications

Parameters and characteristics for this part

Specification	62S30-M0-PH

Actuator Type	Flatted End
Actuator Type [diameter]	0.25 in
Built in Switch	False
Detent	True
Encoder Type	Optical
Orientation	Vertical
Output Type	Quadrature (Incremental)
Pulses per Revolution	12
Rotational Life (Cycles Min) [Min]	1M
Termination Style	PC Pin

Part	Termination Style	Rotational Life (Cycles Min) [Min]	Output Type	Encoder Type	Pulses per Revolution	Actuator Type [diameter]	Actuator Type	Mounting Type	Orientation
Grayhill Inc. 62S30-L4-200C	Cable with Connector	1M	Quadrature (Incremental)	Optical	12	0.25 in	Flatted End	Panel Mount	Vertical
Grayhill Inc. 62S30-L0-030C	Cable with Connector	1M	Quadrature (Incremental)	Optical	12	0.25 in	Flatted End	Panel Mount	Vertical
Grayhill Inc. 62S30-M0-PH	PC Pin	1M	Quadrature (Incremental)	Optical	12	0.25 in	Flatted End		Vertical
Grayhill Inc. 62S30-L4-P	PC Pin	1M	Quadrature (Incremental)	Optical	12	0.25 in	Flatted End		Vertical
Grayhill Inc. 62S30-H9-P	PC Pin	1M	Quadrature (Incremental)	Optical	12	0.25 in	Flatted End		Vertical
Grayhill Inc. 62S30-L4-040C	Cable with Connector	1M	Quadrature (Incremental)	Optical	12	0.25 in	Flatted End	Panel Mount	Vertical
Grayhill Inc. 62S30-L0-200C	Cable with Connector	1M	Quadrature (Incremental)	Optical	12	0.25 in	Flatted End	Panel Mount	Vertical
Grayhill Inc. 62S30-N9-PV	PC Pin	1M	Quadrature (Incremental)	Optical	12	0.25 in	Flatted End	Panel PCB Through Hole	Vertical
Grayhill Inc. 62S30-H9-PH	PC Pin	1M	Quadrature (Incremental)	Optical	12	0.25 in	Flatted End		Vertical
Grayhill Inc. 62S30-M0-030C	Cable with Connector	1M	Quadrature (Incremental)	Optical	12	0.25 in	Flatted End	Panel Mount	Vertical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 0.00

General part information

Rotary Encoder Optical 12 Quadrature (Incremental) Vertical
