Specification	19413240233

Connector Type	Base - Box Mount
Housing Color	Black
Housing Material	Glass Filled, Polyamide (PA), Nylon
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 C
Size	24 B
Size / Dimension [x]	5.748 in
Size / Dimension [x]	146 mm
Size / Dimension [y]	68 mm
Size / Dimension [y]	2.677 "
Size / Dimension [z]	78.2 mm
Size / Dimension [z]	3.079 in
Style	Side Entry

19413240 Series

Part	Ingress Protection	Housing Color	Connector Type	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Size	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Style	Lock Location
HARTING 19413240233	IP65 - Dust Tight Water Resistant	Black	Base - Box Mount	Glass Filled Nylon Polyamide (PA)	125 °C	-40 C	24 B	5.748 in	146 mm	78.2 mm	68 mm	3.079 in	2.677 "	Side Entry	Locking Clip (2) on Base Bottom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

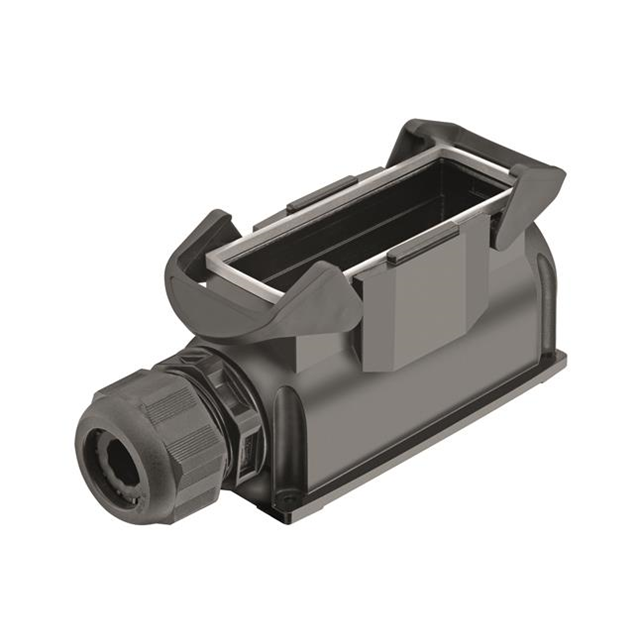

Base - Box Mount Connector Side Entry M40 24B IP65 - Dust Tight, Water Resistant
