Power Supplies - External/Internal (Off-Board)
LPP-150-27
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 27V 151W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LPP-150-27 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, TUV, CB, cURus |
| Current - Output 1 | 5.6 A |
| Efficiency | 85 % |
| Features | Universal Input, PFC, Adjustable Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 151 W |
| Size / Dimension [x] | 222 mm |
| Size / Dimension [x] | 8.74 in |
| Size / Dimension [y] | 75 mm |
| Size / Dimension [y] | 2.95 " |
| Size / Dimension [z] | 1.61 " |
| Size / Dimension [z] | 41 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC, 370 VDC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 27 V |
| Part | Minimum Load Required | Efficiency | Voltage - Isolation | Features | Applications | Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Approval Agency | Power (Watts) | Current - Output 1 | Number of Outputs | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | 76 % | 3000 V | Adjustable Output PFC Universal Input | ITE (Commercial) | Open Frame | Chassis Mount | 70 °C | -10 °C | 5 V | CB CE cURus TUV | 150 W | 30 A | 1 | 85 VAC 120 VDC | 264 VAC 370 VDC | 75 mm | 222 mm | 2.95 " | 1.61 " | 41 mm | 8.74 in | |
MEAN WELL USA Inc. | 85 % | 3000 V | Adjustable Output PFC Universal Input | ITE (Commercial) | Open Frame | Chassis Mount | 70 °C | -10 °C | 27 V | CB CE cURus TUV | 151 W | 5.6 A | 1 | 85 VAC 120 VDC | 264 VAC 370 VDC | 75 mm | 222 mm | 2.95 " | 1.61 " | 41 mm | 8.74 in | |
MEAN WELL USA Inc. | 85 % | 3000 V | Adjustable Output PFC Universal Input | ITE (Commercial) | Open Frame | Chassis Mount | 70 °C | -10 °C | 48 V | CB CE cURus TUV | 154 W | 3.2 A | 1 | 85 VAC 120 VDC | 264 VAC 370 VDC | 75 mm | 222 mm | 2.95 " | 1.61 " | 41 mm | 8.74 in | |
MEAN WELL USA Inc. | 70 % | 3000 V | Adjustable Output PFC Universal Input | ITE (Commercial) | Open Frame | Chassis Mount | 70 °C | -10 °C | 3.3 V | CB CE cURus TUV | 99 W | 30 A | 1 | 85 VAC 120 VDC | 264 VAC 370 VDC | 75 mm | 222 mm | 2.95 " | 1.61 " | 41 mm | 8.74 in | |
MEAN WELL USA Inc. | 83 % | 3000 V | Adjustable Output PFC Universal Input | ITE (Commercial) | Open Frame | Chassis Mount | 70 °C | -10 °C | 15 V | CB CE cURus TUV | 150 W | 10 A | 1 | 85 VAC 120 VDC | 264 VAC 370 VDC | 75 mm | 222 mm | 2.95 " | 1.61 " | 41 mm | 8.74 in | |
MEAN WELL USA Inc. | 3000 V | Adjustable Output PFC Universal Input | ITE (Commercial) | Open Frame | Chassis Mount | 70 °C | -10 °C | 12 V | CB CE cURus TUV | 150 W | 12.5 A | 1 | 85 VAC 120 VDC | 264 VAC 370 VDC | 75 mm | 222 mm | 2.95 " | 1.61 " | 41 mm | 8.74 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 35.00 | |
| 5 | $ 33.30 | |||
| 10 | $ 31.80 | |||
| 25 | $ 30.90 | |||
| N/A | 0 | $ 35.00 | ||
Description
General part information

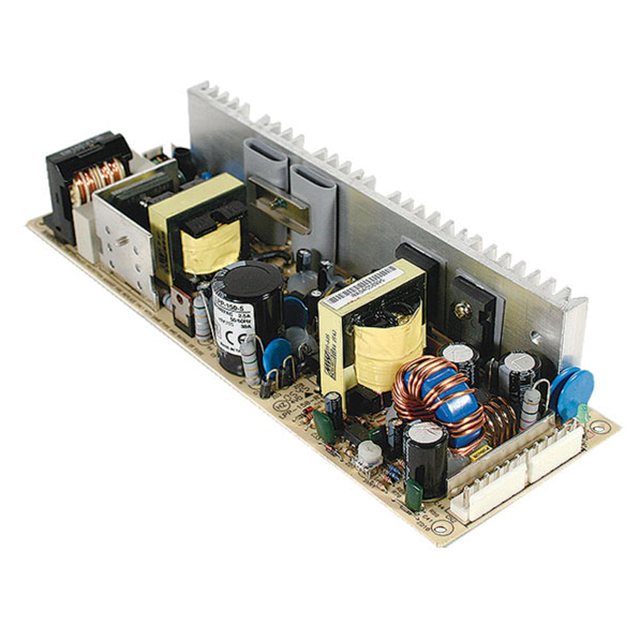

LPP-150 Series
Open Frame AC DC Converters 1 Output 27V 85 ~ 264 VAC, 120 ~ 370 VDC Input
