Switches

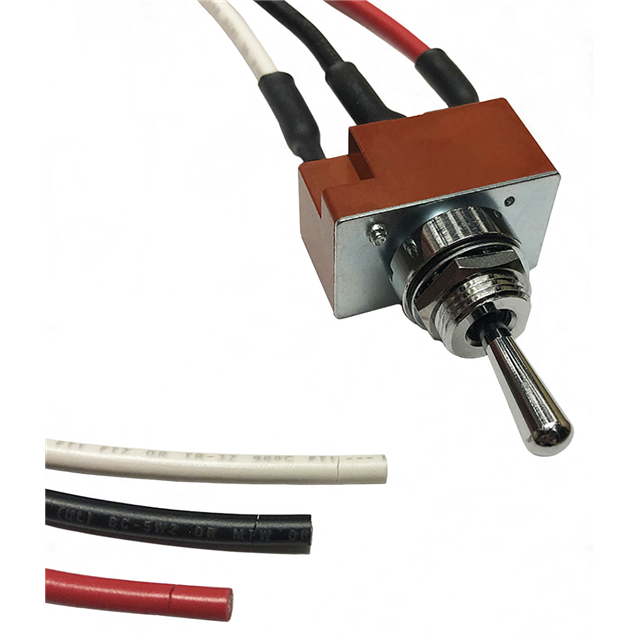

S3AW-WL

Active

SWITCH TOGGLE SPDT 15A 125V

Search across all available documentation for this part.

Switches

Active

SWITCH TOGGLE SPDT 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	S3AW-WL

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12 x 1
Circuit	SPDT
Current Rating (Amps)	15 A, 20 A
Electrical Life	25000 Steps
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Off-On
Termination Style	Wire Leads
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Actuator Material	Electrical Life	Termination Style	Voltage Rating - DC	Circuit	Bushing Thread	Actuator Type	Panel Cutout Dimensions [diameter]	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Actuator Length [x]	Switch Function	Illumination	Voltage Rating - AC	Mounting Type	Features
NKK Switches S3AW-WL	Brass Chrome Plated	25000 Steps	Wire Leads	30 V	SPDT	M12 x 1	Standard Round	12.5 mm	IP67 - Dust Tight Waterproof	-30 ░C	70 °C	15 A 20 A	17.5 mm	On-Off-On	Non-Illuminated	125 V	Panel Mount
NKK Switches S3AWB		25000 Steps	Solder Lug	30 V	SPDT	M12 x 1	Standard Round	12.5 mm	IP68 - Dust Tight Waterproof	-30 ░C	70 °C	15 A 20 A	17.5 mm	On-Off-On	Non-Illuminated	125 V	Panel Mount	Waterproof Boot
NKK Switches S3AWF	Brass Chrome Plated	25000 Steps	Quick Connect - 0.250" (6.3mm)	30 V	SPDT	M12 x 1	Standard Round	12.5 mm	IP67 - Dust Tight Waterproof	-30 ░C	70 °C	15 A 20 A	17.5 mm	On-Off-On	Non-Illuminated	125 V	Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
