7928-0-54-20-77-14-11-0
Connectors, Interconnects

7928-0-54-20-77-14-11-0

Active
Mill-Max Manufacturing Corp.

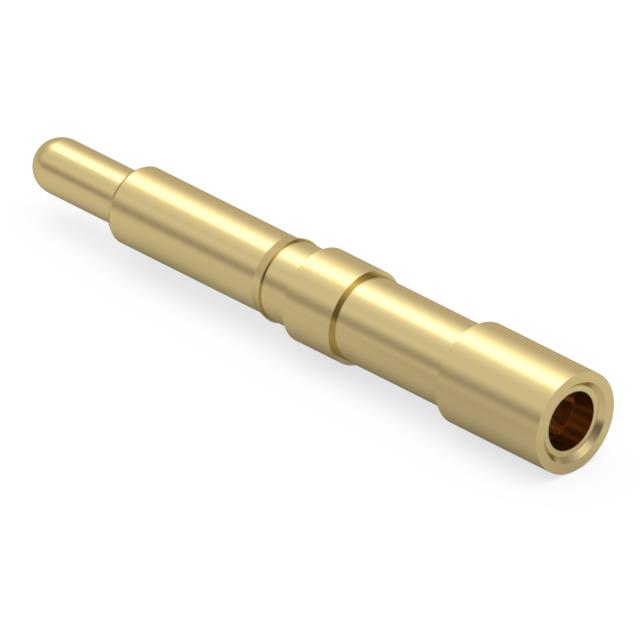

SPRING-LOADED PIN WITH RECEPTACL

Deep-Dive with AI

Search across all available documentation for this part.

Documents7928-0-54-20-77-14-11-0 | Datasheet
7928-0-54-20-77-14-11-0
Connectors, Interconnects

7928-0-54-20-77-14-11-0

Active
Mill-Max Manufacturing Corp.

SPRING-LOADED PIN WITH RECEPTACL

Deep-Dive with AI

Documents7928-0-54-20-77-14-11-0 | Datasheet

Technical Specifications

Parameters and characteristics for this part

Specification7928-0-54-20-77-14-11-0
Contact FinishGold
Contact Finish Thickness20 µin
Contact Finish Thickness0.51 µm
Contact MaterialBrass Alloy
Contact TypeSleeve & Plunger (Pogo Pins), Receptacle Adapter
Current Rating (Amps)5.2 A
Features [Max] [diameter]1.09 mm
Features [Max] [diameter]0.043 "
Features [Min] [diameter]0.94 mm
Features [Min] [diameter]0.037 "
Mating Cycles1000000
Maximum Working Height [Max]0.378 in
Maximum Working Height [Max]9.6 mm
Minimum Working Height0.228 in
Minimum Working Height5.79 mm
Mounting TypeFree Hanging (In-Line)
Operating Force - Mid Compression60 gf
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 C
Pad Layout Dimension [custom]0.1 in
Pad Layout Dimension [custom]2.54 mm
Plunger Size [diameter]0.042 in
Plunger Size [diameter]1.07 mm
Recommended Working Height0.273 in
Recommended Working Height6.94 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 2.12
10$ 1.62
25$ 1.46
50$ 1.35
100$ 1.25
250$ 1.13
500$ 1.05
1000$ 0.98
2500$ 0.89
N/A 1554$ 1.66

Description

General part information

7928-0 Series

Contact Spring Free Hanging (In-Line)
