Specification	34318

Features	Serrated Mating Area, Brazed Seam
Insulation	Non-Insulated
Number of Wire Entries	2
Terminal Type	Inline, Individual Openings (Parallel)
Termination	Crimp
Wire Gauge	8 AWG

SOLISTRAND Series

Part	Length - Overall [x]	Length - Overall [x]	Contact Finish	Mounting Type	Terminal Type	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Features	Termination	Number of Wire Entries	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Material - Insulation	Color	Thickness	Thickness	Wire Gauge	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Terminal Style	Tab Thickness	Tab Thickness	Width - Outer Edges [y]	Width - Outer Edges [y]
TE Connectivity AMP Connectors 52713-1	0.756 in	19.2 mm	Tin	Free Hanging (In-Line)	Snap Spring	8 Stud	7.14 mm	0.281 in	Non-Insulated	14 AWG	16 AWG	Phosphor Bronze	Brazed Seam Serrated Termination	Crimp
TE Connectivity AMP Connectors 32151					Butt Splice Individual Openings Inline				Non-Insulated	10 AWG	12 AWG		Brazed Seam Serrated Mating Area	Crimp	2
TE Connectivity AMP Connectors 53123-2	0.576 in	14.63 mm	Tin	Free Hanging (In-Line)	Snap Spring	6 Stud	6.35 mm	0.25 "	Non-Insulated	14 AWG	16 AWG	Phosphor Bronze	Brazed Seam Serrated Termination	Crimp

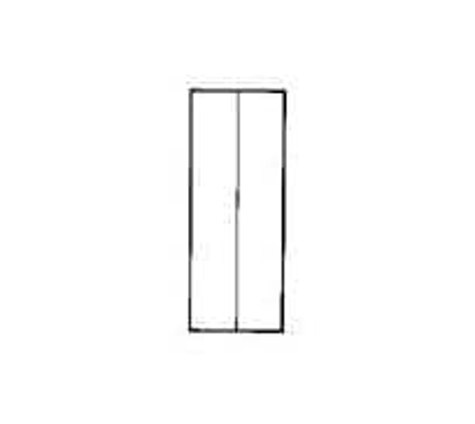

TE Connectivity AMP Connectors 134540-1					Butt Splice Individual Openings Inline				Non-Insulated	14 AWG	16 AWG			Crimp	2	2.6 mm²	1 mm²
TE Connectivity AMP Connectors 9-1377172-7	0.858 in	21.79 mm	Tin	Free Hanging (In-Line)	Circular	8 Stud	8 mm	0.315 in	Insulated	16 AWG	22 AWG	Copper	Serrated Termination	Crimp				2.69 mm	0.14 in	3.56 mm	0.106 "	Poly-Vinyl Chloride (PVC)	Red	0.81 mm	0.032 in
TE Connectivity AMP Connectors 34117			Tin	Free Hanging (In-Line)	Standard	8 Stud	9.53 mm	0.375 in	Non-Insulated	16 AWG	22 AWG	Copper	Brazed Seam Serrated Termination	Crimp
TE Connectivity AMP Connectors 34318					Inline Individual Openings (Parallel)				Non-Insulated				Brazed Seam Serrated Mating Area	Crimp	2											8 AWG

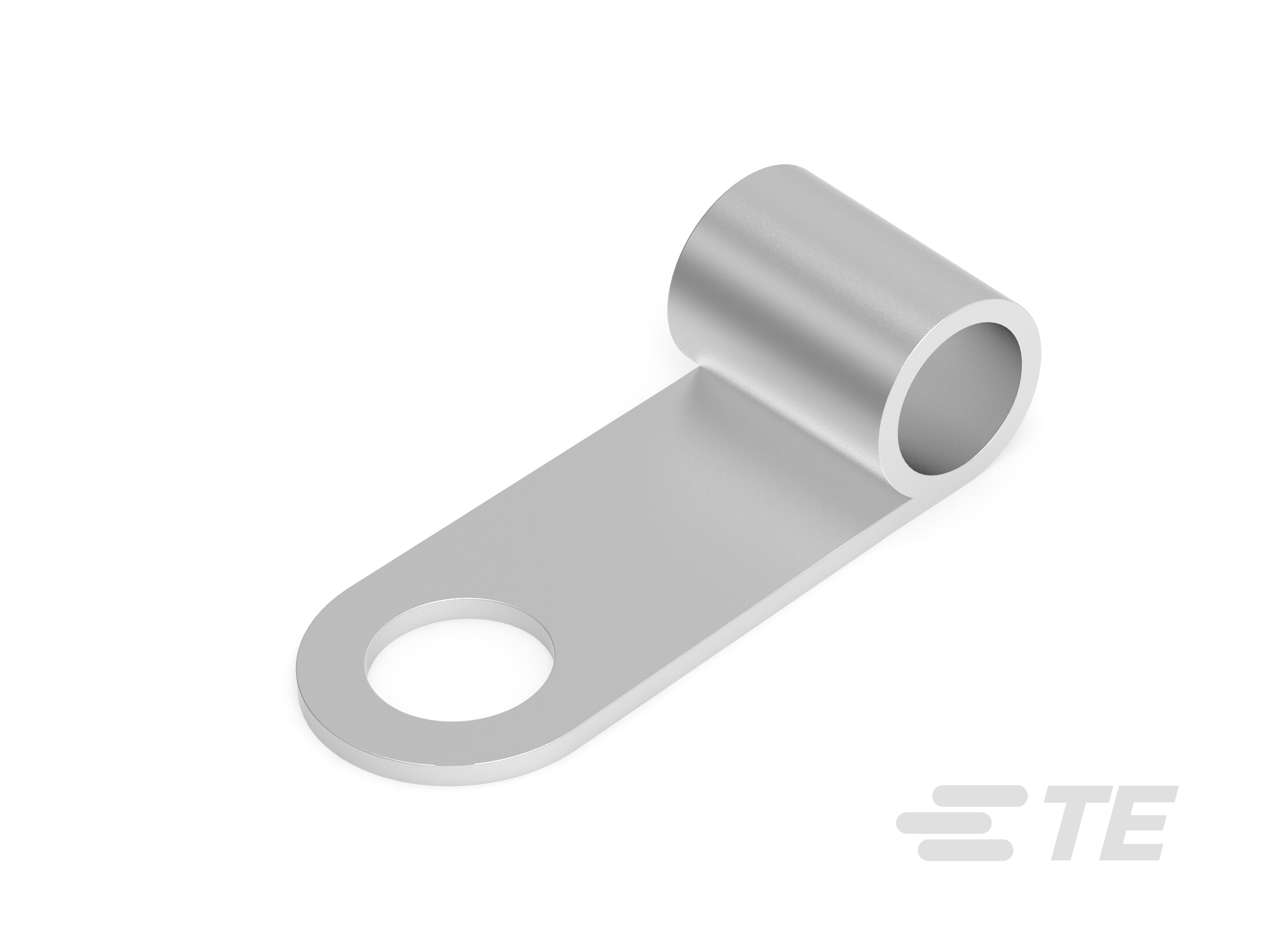

TE Connectivity AMP Connectors 184147-1	1.437 in	36.5 mm	Tin	Free Hanging (In-Line) Right Angle	Circular	10 Stud	18.11 mm	0.713 in	Non-Insulated			Copper	Brazed Seam Serrated Termination	Crimp Flag										1.45 mm	0.057 "	2 AWG
TE Connectivity AMP Connectors 55799-1	1.334 in	33.89 mm	Tin	Free Hanging (In-Line)	Rectangular Tongue	8 Stud	10.16 mm	0.4 in	Non-Insulated	10 AWG	12 AWG	Copper	Brazed Seam Serrated Termination	Crimp													0.226 in	5.74 mm	4.34 mm	0.171 in	0.129 "	3.28 mm	Round Slotted	0.039 "	0.99 mm
TE Connectivity AMP Connectors 8-34105-1	0.449 in	11.4 mm	Tin	Free Hanging (In-Line)	Circular	6 Stud			Non-Insulated	16 AWG	22 AWG	Copper	Brazed Seam Serrated Termination	Crimp										0.79 mm	0.031 in											0.218 in	5.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.49
		10	$ 0.46
		25	$ 0.46
		50	$ 0.45
		100	$ 0.38
		250	$ 0.35
		500	$ 0.33
		1000	$ 0.29
		2500	$ 0.28
	N/A	57191	$ 0.56
Mouser	N/A	1	$ 170.40
		1	$ 0.59
		5	$ 161.20
		10	$ 151.99
		10	$ 0.46
		25	$ 0.41
		25	$ 146.06
		50	$ 125.25
		100	$ 116.31
		100	$ 0.38
		250	$ 0.30
		1000	$ 0.28
		2500	$ 0.26
		10000	$ 0.25
		20000	$ 0.25

Description

General part information

SOLISTRAND Series

Parallel Splice, 8 AWG, 6.64 – 10.5 mm² Wire, Serrated, 13100 – 20800 CMA, Copper, 9.53 mm [.375 in] Length, Loose Piece, Closed Barrel

Documents

Technical documentation and resources

SOLISTRAND Pressure Type Wire Connectors, Terminals and Splices (Use Type W Tooling)

Instruction Sheets

WIRE CONNECTORS, BUTT AND PARALLEL SPLICES, NON-INSULATED TYPE SOLISTRAND REPORT

Agency Approvals

WIRE CONN, TERMINALS, BUTT AND PARALLEL CONNECTORS-PLASTI-GRIP, SOLISTRAND, STD B, DIAMOND GRIP, PIDG AND AMPOWER REPORT

Agency Approvals
