Connectors, Interconnects

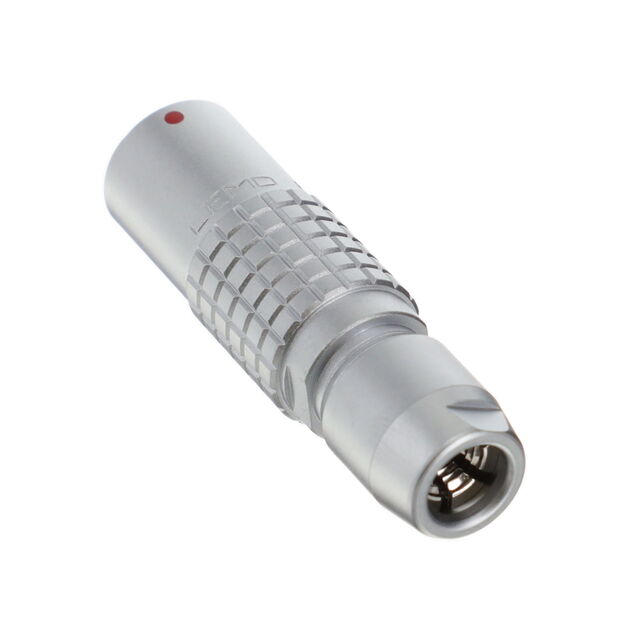

PHA.1B.308.CLLD42

Active

LEMO

CONN RCPT FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Connectors, Interconnects

PHA.1B.308.CLLD42

Active

LEMO

CONN RCPT FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PHA.1B.308.CLLD42

Backshell Material, Plating	Brass, Chrome
Cable Opening [diameter]	3.1 mm, 4.2 mm
Cable Opening [diameter]	0.165 in, 0.122 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	A
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	308
Shielding	Shielded

PHA.1B Series

Part	Color	Material Flammability Rating	Shielding	Features	Contact Finish - Mating	Current Rating (Amps)	Shell Material	Shell Size - Insert	Mounting Type	Number of Positions	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Orientation	Insert Material	Ingress Protection	Primary Material	Backshell Material, Plating	Fastening Type	Contact Material	Connector Type	Number of Positions	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
LEMO PHA.1B.316.CLLD52Z	Silver	UL94 V-0	Shielded	Backshell	Gold	1.5 A	Brass	316	Free Hanging (In-Line)	16	Chrome	-55 °C	250 °C	59 Áin	1.5 Ám	0.165 in 0.205 in	4.2 mm	5.2 mm	A	Polyetheretherketone (PEEK)	IP50	Metal	Brass Chrome	Push-Pull	Bronze	Receptacle Female Sockets
LEMO PHA.1B.308.CLLD52	Silver	UL94 V-0	Shielded	Backshell	Gold	5 A	Brass	308	Free Hanging (In-Line)		Chrome	-55 °C	250 °C	59 Áin	1.5 Ám	0.165 in 0.205 in	4.2 mm	5.2 mm	A	Polyetheretherketone (PEEK)	IP50	Metal	Brass Chrome	Push-Pull	Bronze	Receptacle Female Sockets	8
LEMO PHA.1B.308.CLLD42	Silver	UL94 V-0	Shielded	Backshell	Gold	5 A	Brass	308	Free Hanging (In-Line)		Chrome	-55 °C	250 °C	59 Áin	1.5 Ám		3.1 mm 4.2 mm		A	Polyetheretherketone (PEEK)	IP50	Metal	Brass Chrome	Push-Pull	Bronze	Receptacle Female Sockets	8	0.122 in 0.165 in
LEMO PHA.1B.307.CLLD52	Silver	UL94 V-0	Shielded	Backshell	Gold	7 A	Brass	307	Free Hanging (In-Line)		Chrome	-55 °C	250 °C	59 Áin	1.5 Ám	0.165 in 0.205 in	4.2 mm	5.2 mm	A	Polyetheretherketone (PEEK)	IP50	Metal	Brass Chrome	Push-Pull	Bronze	Receptacle Female Sockets	7
LEMO PHA.1B.306.CLLD52	Silver	UL94 V-0	Shielded	Backshell	Gold	7 A	Brass	306	Free Hanging (In-Line)		Chrome	-55 °C	250 °C	59 Áin	1.5 Ám	0.165 in 0.205 in	4.2 mm	5.2 mm	A	Polyetheretherketone (PEEK)	IP50	Metal	Brass Chrome	Push-Pull	Bronze	Receptacle Female Sockets	6
LEMO PHA.1B.308.CLLD72Z	Silver	UL94 V-0	Shielded	Backshell	Gold	5 A	Brass	308	Free Hanging (In-Line)		Chrome	-55 °C	250 °C	59 Áin	1.5 Ám				A	Polyetheretherketone (PEEK)	IP50	Metal	Brass Chrome	Push-Pull	Bronze	Receptacle Female Sockets	8		0.244 in 0.283 in	6.2 mm 7.2 mm
LEMO PHA.1B.307.CLLD52Z	Silver	UL94 V-0	Shielded	Backshell	Gold	7 A	Brass	307	Free Hanging (In-Line)		Chrome	-55 °C	250 °C	59 Áin	1.5 Ám	0.165 in 0.205 in	4.2 mm	5.2 mm	A	Polyetheretherketone (PEEK)	IP50	Metal	Brass Chrome	Push-Pull	Bronze	Receptacle Female Sockets	7
LEMO PHA.1B.308.CLLD42Z	Silver	UL94 V-0	Shielded	Backshell	Gold	5 A	Brass	308	Free Hanging (In-Line)		Chrome	-55 °C	250 °C	59 Áin	1.5 Ám		3.1 mm 4.2 mm		A	Polyetheretherketone (PEEK)	IP50	Metal	Brass Chrome	Push-Pull	Bronze	Receptacle Female Sockets	8	0.122 in 0.165 in
LEMO PHA.1B.310.CLLD72Z	Silver	UL94 V-0	Shielded	Backshell	Gold	2.5 A	Brass	310	Free Hanging (In-Line)		Chrome	-55 °C	250 °C	59 Áin	1.5 Ám				A	Polyetheretherketone (PEEK)	IP50	Metal	Brass Chrome	Push-Pull	Bronze	Receptacle Female Sockets	10		0.244 in 0.283 in	6.2 mm 7.2 mm
LEMO PHA.1B.307.CLLD62Z	Silver	UL94 V-0	Shielded	Backshell	Gold	7 A	Brass	307	Free Hanging (In-Line)		Chrome	-55 °C	250 °C	59 Áin	1.5 Ám				A	Polyetheretherketone (PEEK)	IP50	Metal	Brass Chrome	Push-Pull	Bronze	Receptacle Female Sockets	7				6.2 mm	5.2 mm	0.205 in	0.244 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 50.82
		10	$ 46.64
		25	$ 44.84
		50	$ 43.35
		100	$ 40.96
		250	$ 39.76

Description

General part information

PHA.1B Series

8 Position Circular Connector Receptacle, Female Sockets Solder Cup
